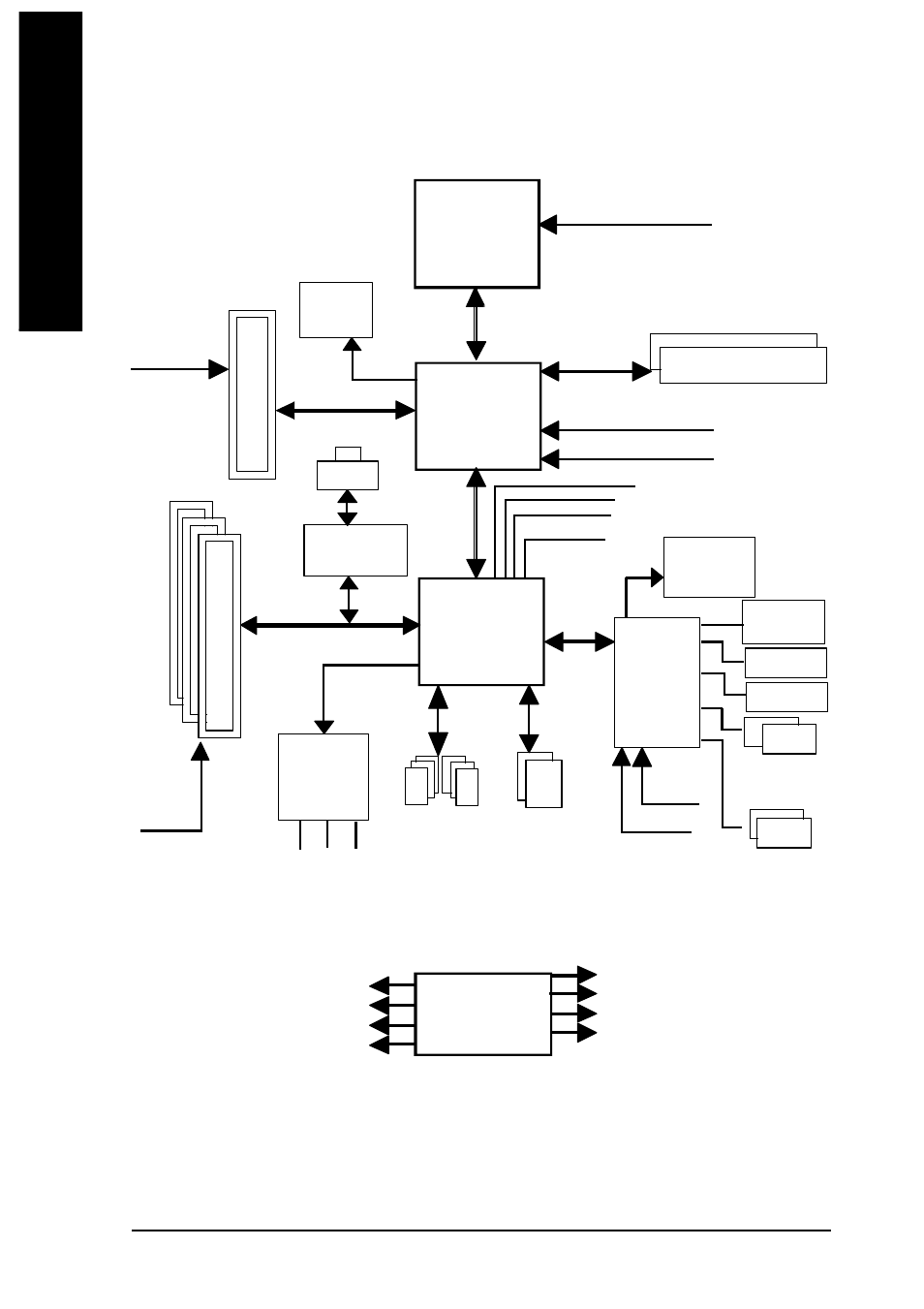

Block Diagram
Pentium 4
Socket 478
CPU
SiS 651
AC97
CODEC
SiS 962L
CPUCLK+/- (100/133 MHz)
System Bus
400/533 MHz
DDR
200/266/333MHz
ZCLK (66MHz)
HCLK+/- (100/133 MHz)
66 MHz
33 MHz
14.318 MHz
48 MHz
24 MHz
33 MHz
LPC BUS
AGP 2X/4X
AGPCLK
(66MHz)
3 PCI
PCICLK
(33MHz)
AC97 Link
MIC
LINE-IN
LINE-OUT
6 USB
Ports
ATA33/66/100/133
IDE Channels
Floppy
LPT Port
PS/2
KB/Mouse
COM
Ports
BIOS
W83697HF
Game Port
RTL8201 *
RJ45 *
VGA Port
CLK GEN
ZCLK (66MHz)
CPUCLK+/- (100/133 MHz)
AGPCLK (66MHz)
HCLK+/- (100/133 MHz)
PCICLK (33MHz)
USBCLK (48MHz)
14.318 MHz
33 MHz
“ * ” For 8S651M-RZ only.
