- 18 -
8S651M-RZ Series Motherboard
English

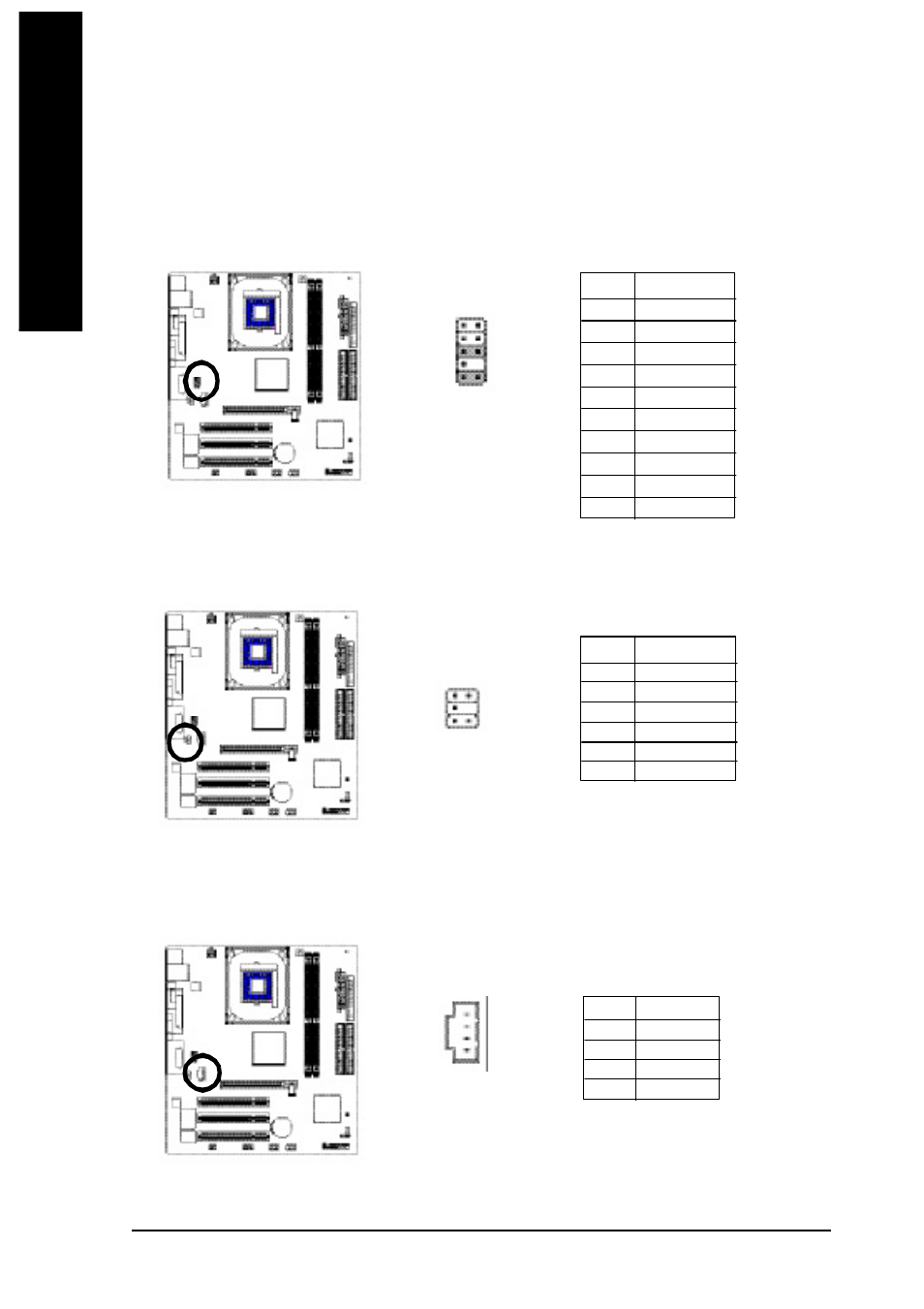

11) F_AUDIO (F_AUDIO Connector)
If you want to use Front Audio connector, you must remove 5-6, 9-10 Jumper. In order to utilize the
front audio header, your chassis must have front audio connector. Also please make sure the pin
assigment on the cable is the same as the pin assigment on the MB header. To find out if the chassis
you are buying support front audio connector, please contact your dealer.Please note, you can
have the alternative of using front audio connector or of using rear audio connector to play sound.
Pin No. Definition
1
MIC
2
GND
3
REF
4
POWER
5
FrontAudio(R)
6
RearAudio(R)
7
Reserved
8
No Pin
9
FrontAudio (L)
10
RearAudio(L)
1 0
9
1
2
12) SUR_CEN
Please contact your nearest dealer for optional SUR_CEN cable.
Pin No. Definition
1
SUR OUTL
2
SUR OUTR
3
GND
4
No Pin
5
CENTER_OUT
6
BASS_OUT
1
5
6
2
13) CD_IN
Connect CD-ROM or DVD-ROM audio out to the connector.
Pin No. Definition
1
CD-L
2
GND
3
GND
4
CD_R
1
