Connecting 2x12 Power Supply Cables
If you have a 2x12 power supply, follow the instructions below. Figure 28 shows the location of
the power connectors for a 2x12 power supply.
G
H
I
J
OM17792
1
2
OR

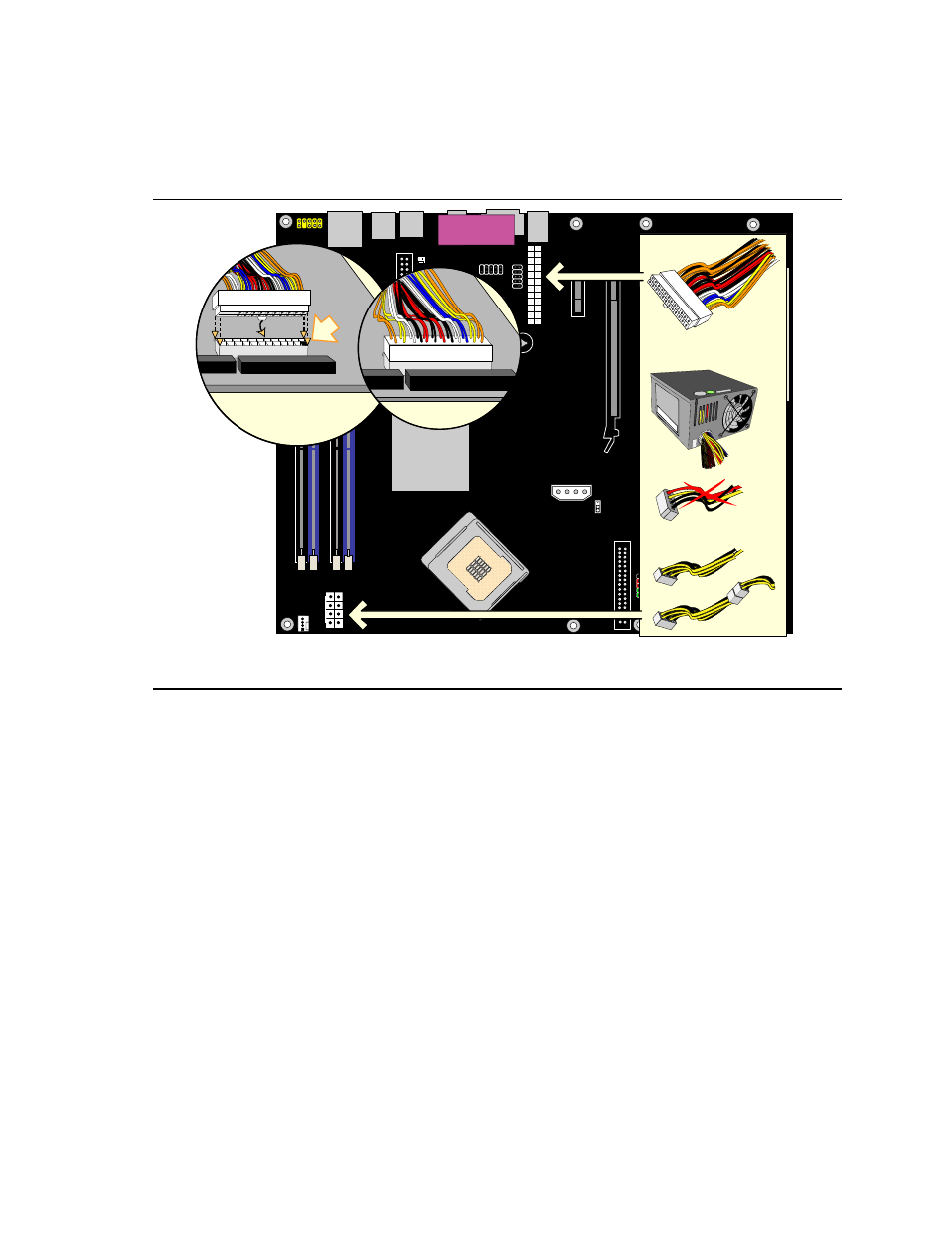

Figure 28. Connecting 2x12 Power Supply Cables
1. Observe the precautions in "Before You Begin" on page 23.
2. Connect the 12 V processor core voltage power supply cable to the 2x4 connector.
Use the 2x2 to 2x4 adapter if needed.
3. Connect the main 2x12 power supply cable to the 2x12 connector (see Figure 28, 1 and 2).
