Connecting Fans
Connecting Fans and Chassis Intrusion
See Figure 25 for fan and chassis intrusion header locations. Connect the processor’s fan heat sink
cable to the 4-pin processor fan header on the board. Connect chassis fan cables to the board fan
headers and the chassis intrusion cable to its respective header.
G
H
I
J
3
1
2
4
3
1
2
4
1
2
3
1
2
3
1
2
2
1
OM17789
A
1
1
1
1
1
1
1
1
1
1

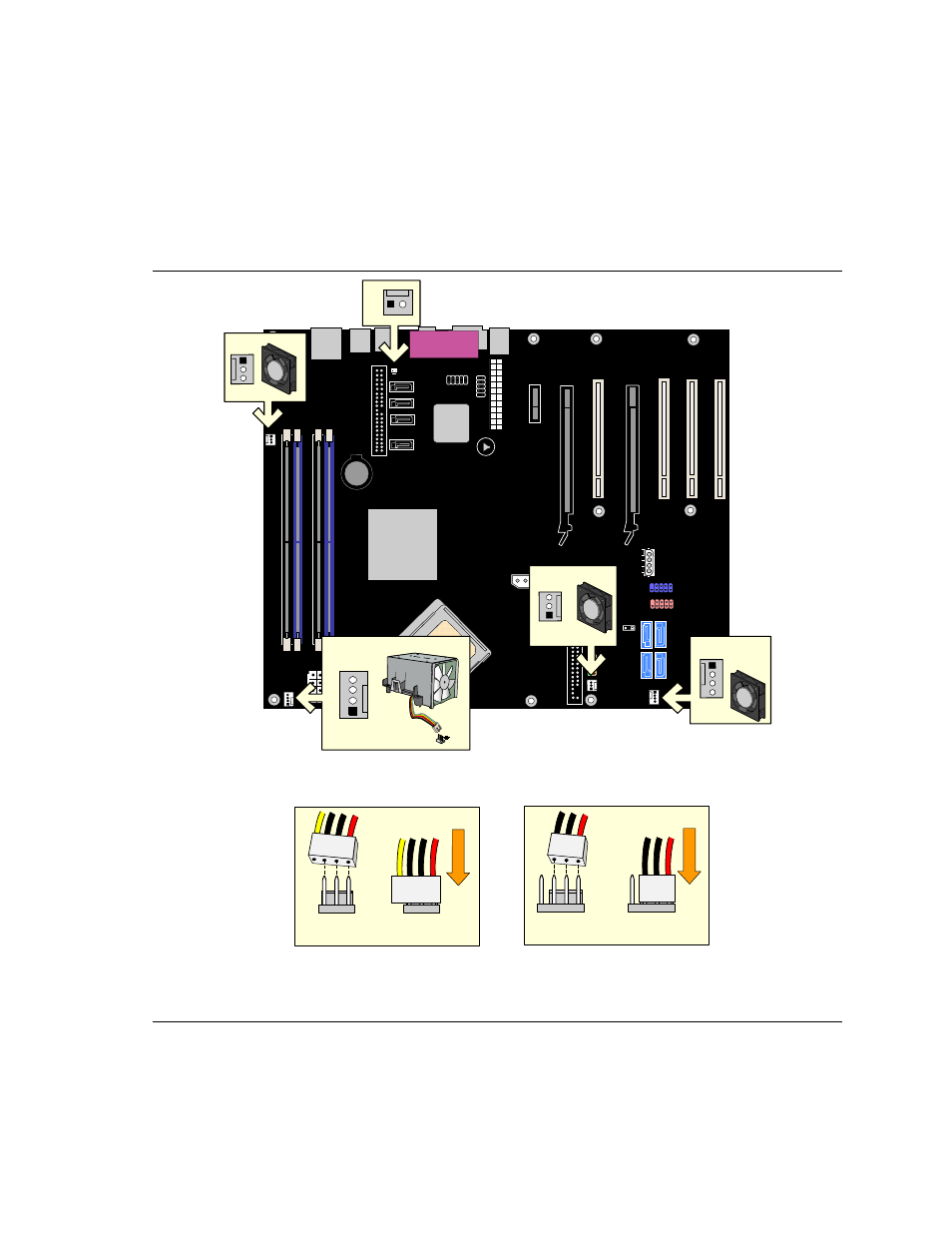

Figure 25. Location of Fan and Chassis Intrusion Headers
