Insignia IS-PD7BL User Manual
Page 21
20
IS-PD7BL portable DVD player
www.insignia-products.com
C
ONNECT
TO
TV
AND
AMPLIFIER
•
Mini plug: Connect to the AV OUT jack of the player.
•
Yellow plug: Connect to the VIDEO IN jack of the TV.
•
Red plug: Connect to the LINE IN R jack of the amplifier.
•
White plug: Connect to the LINE IN L jack of the amplifier.

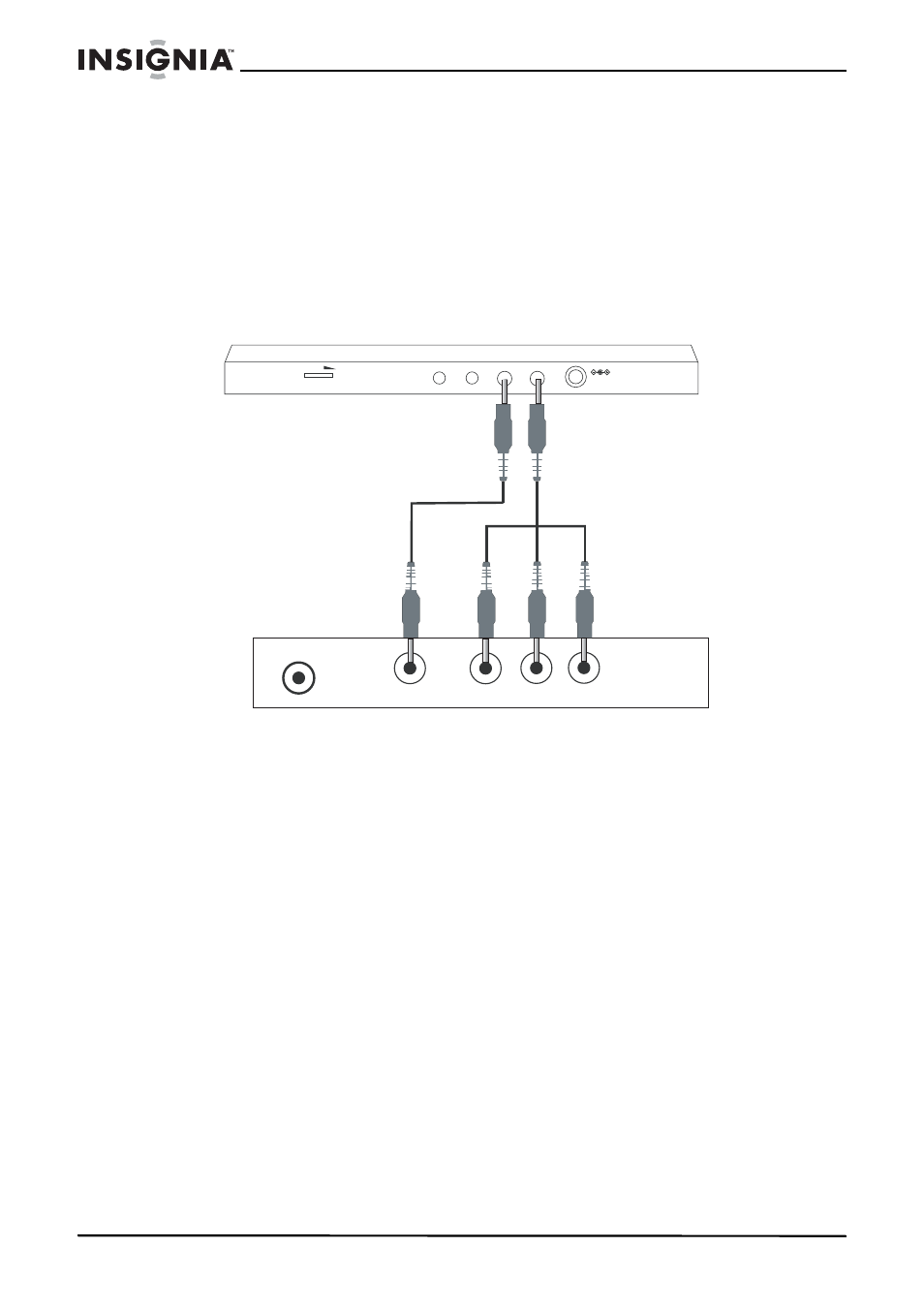

U
SING
AN
OPTIONAL
TV
TUNER
•
Power cable: Connect the DVD player (DC OUT) to the tuner
(DC IN).
•
Mini plug: Connect to the AV IN jack of the player.
•
Yellow plug: Connect to the VIDEO OUT jack of the tuner.
•
Red plug: Connect to the AUDIO R jack of the tuner.
•
White plug: Connect to the AUDIO L jack of the tuner.
V HF /UHF
T V Tu n e r ( o p t i o n a l )
AV O UT
C OAX IAL
AV IN
V O LUME
DC O UT 5V
DC IN 9V
DC IN
R - AUDIO - L
VIDEO
D V D P l a y e r
