UPI-C42 UPI-L42

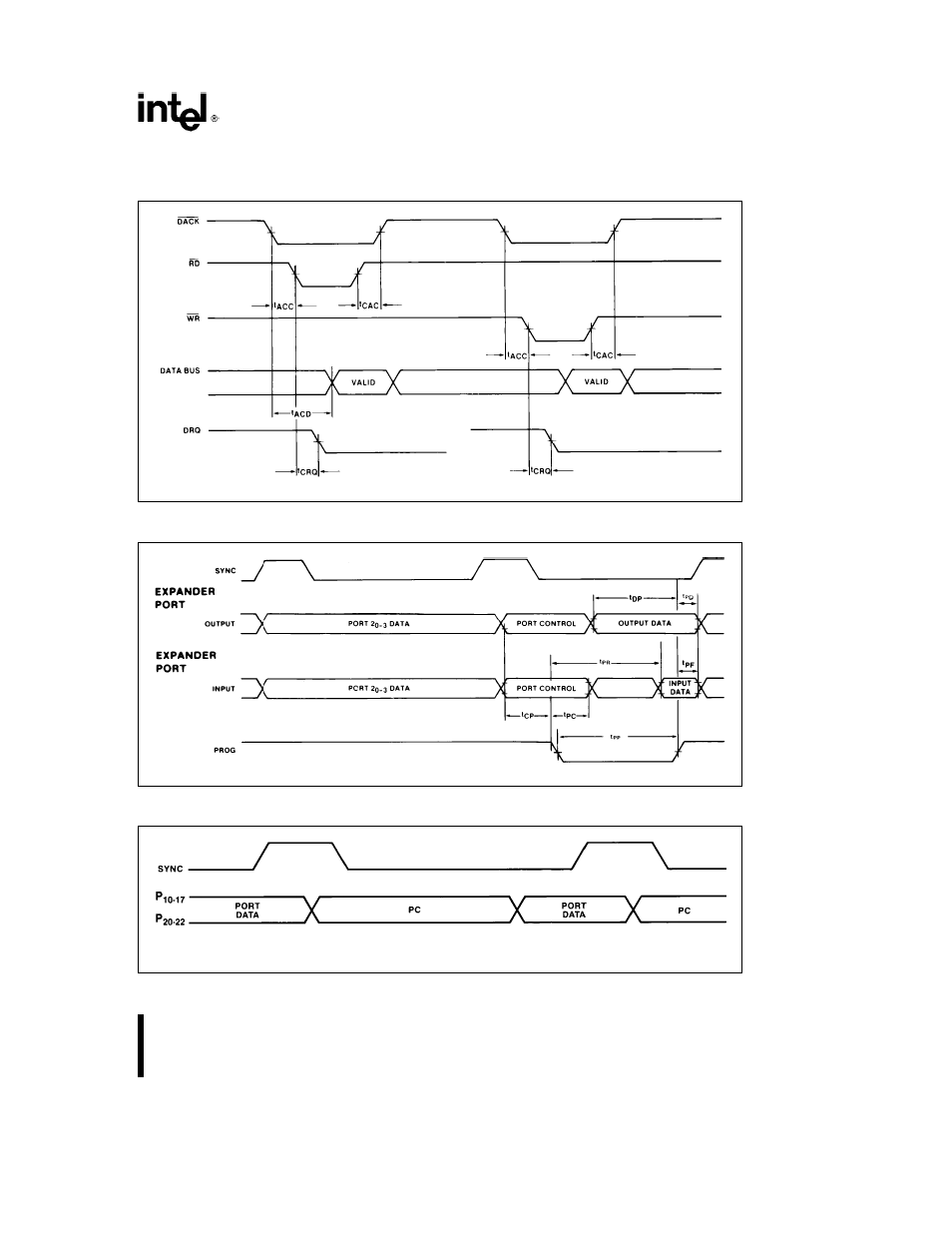

WAVEFORMS (Continued)
DMA
290414 – 27
PORT 2
290414 – 28
PORT TIMING DURING EXTERNAL ACCESS (EA)
290414 – 29
On the Rising Edge of SYNC and EA is Enabled Port Data is Valid and can be Strobed On the Trailing Edge of Sync
the Program Counter Contents are Available
