INSTALLATIONS

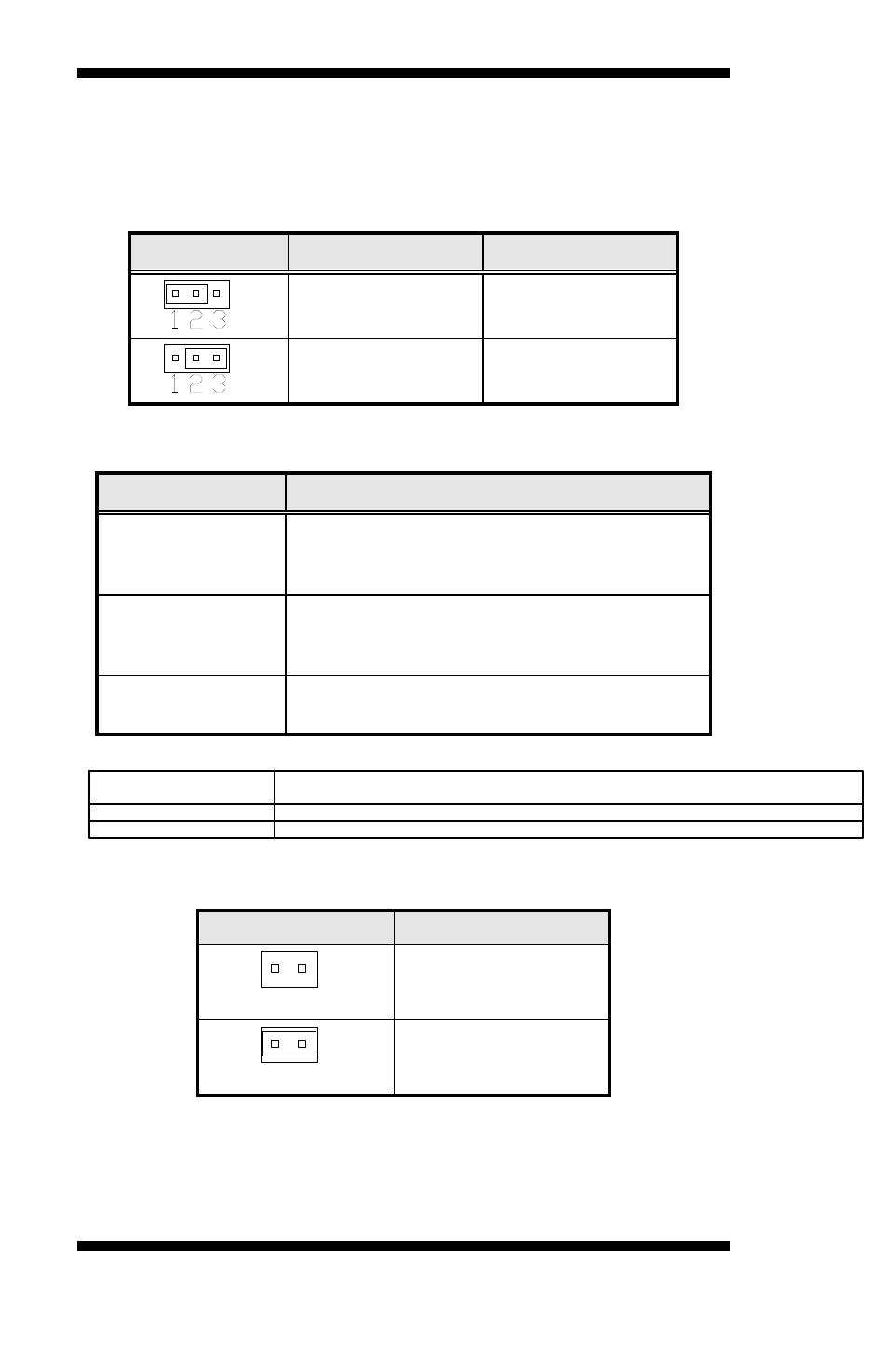

JP1: Clear CMOS Contents
Use JP1 to clear the CMOS contents. Note that the ATX-power
connector should be disconnected from the board before clearing
CMOS.
JP1 Setting Function
Pin 1-2
Short/Closed
Normal
Pin 2-3
Short/Closed
Clear CMOS
JP2: Watchdog Timer Settings
JP2 Setting Function
Pin 1-3 & 2-4
Short
Ethernet default: Eth0 & Eth1 None Bypass.
System will bypass LANs upon the timeout
of Watchdog timer
Pin 1/2/3/4
Open
Ethernet default: Eth0 & Eth1 Bypass mode.
System will not bypass LANs upon the
timeout of Watchdog timer
Pin 1-2 & 3-4
Short
System will reboot upon the timeout of
Watchdog timer. (Default)
1 -2 , 3 -4 S h o rt
Jumper
1 -2 , 3 -4 O p e n S yste m wi l l b yp a ss L A Ns u p o n th e ti m e o u t o f WDT ti m e r
Function
*
S yste m wi l l re b o o t u p o n th e ti m e o u t o f WDT ti m e r
JP4: Compact Flash Slave/Master
JP4 Compact Flash
Open
Slave
Close
Master
10 MB890 User’s Manual
