Connecting chassis fan and power supply cables, Connecting chassis fan cables – Intel DH55HC User Manual
Page 53
Installing and Replacing Desktop Board Components
53
Connecting Chassis Fan and Power Supply
Cables
Connecting Chassis Fan Cables
Connect chassis fan cables to the chassis fan headers on the Desktop Board.
Figure 25 shows the location of the chassis fan headers.

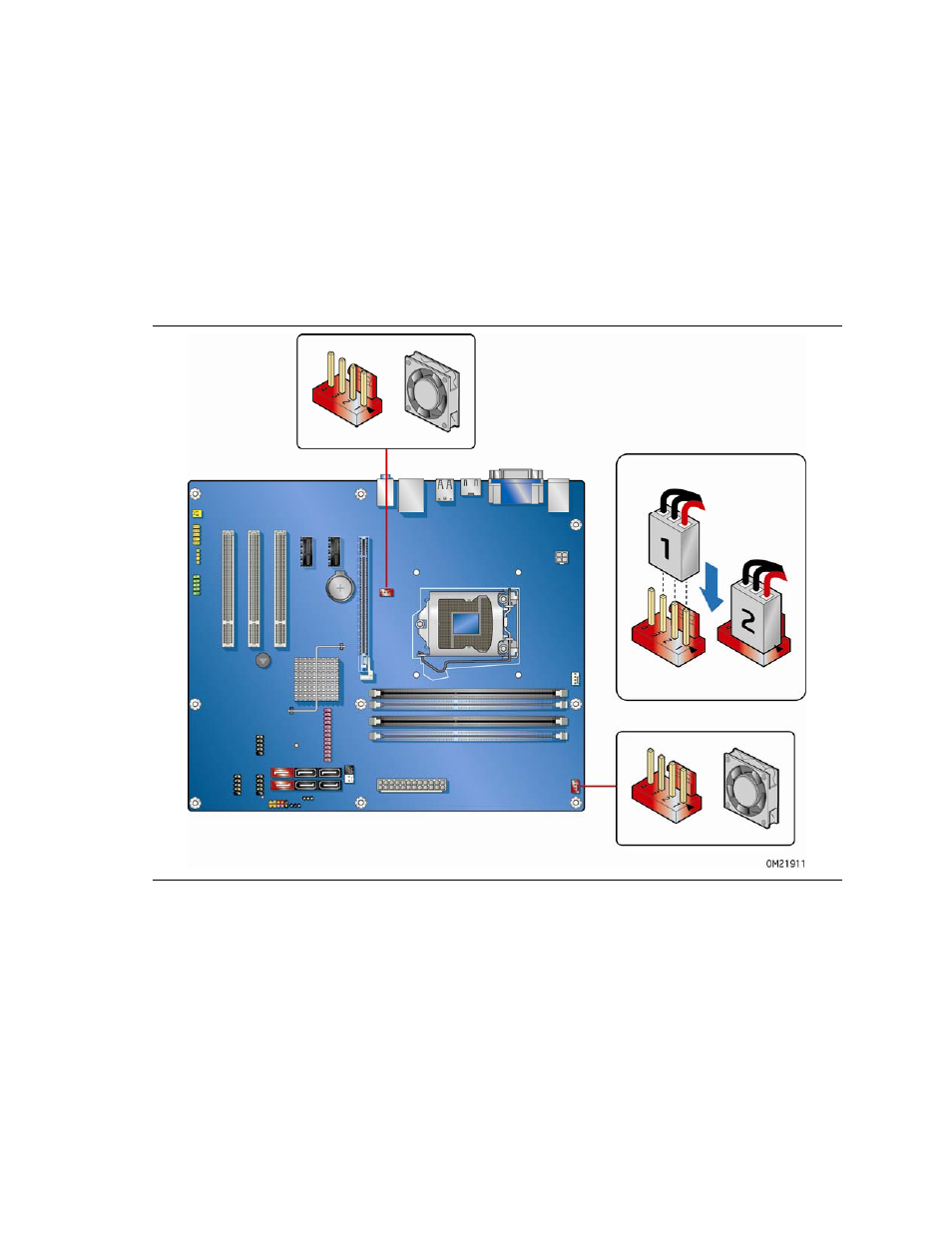

Figure 25. Location of the Chassis Fan Headers
