Intel DH55HC User Manual
Page 32
Intel Desktop Board DH55HC Product Guide
32
3. Rotate the socket lever to lift the load plate away from the socket (Figure 7, A).
Make sure that the load plate is in the fully open position (Figure 7, B) while being
careful not to damage adjacent components.

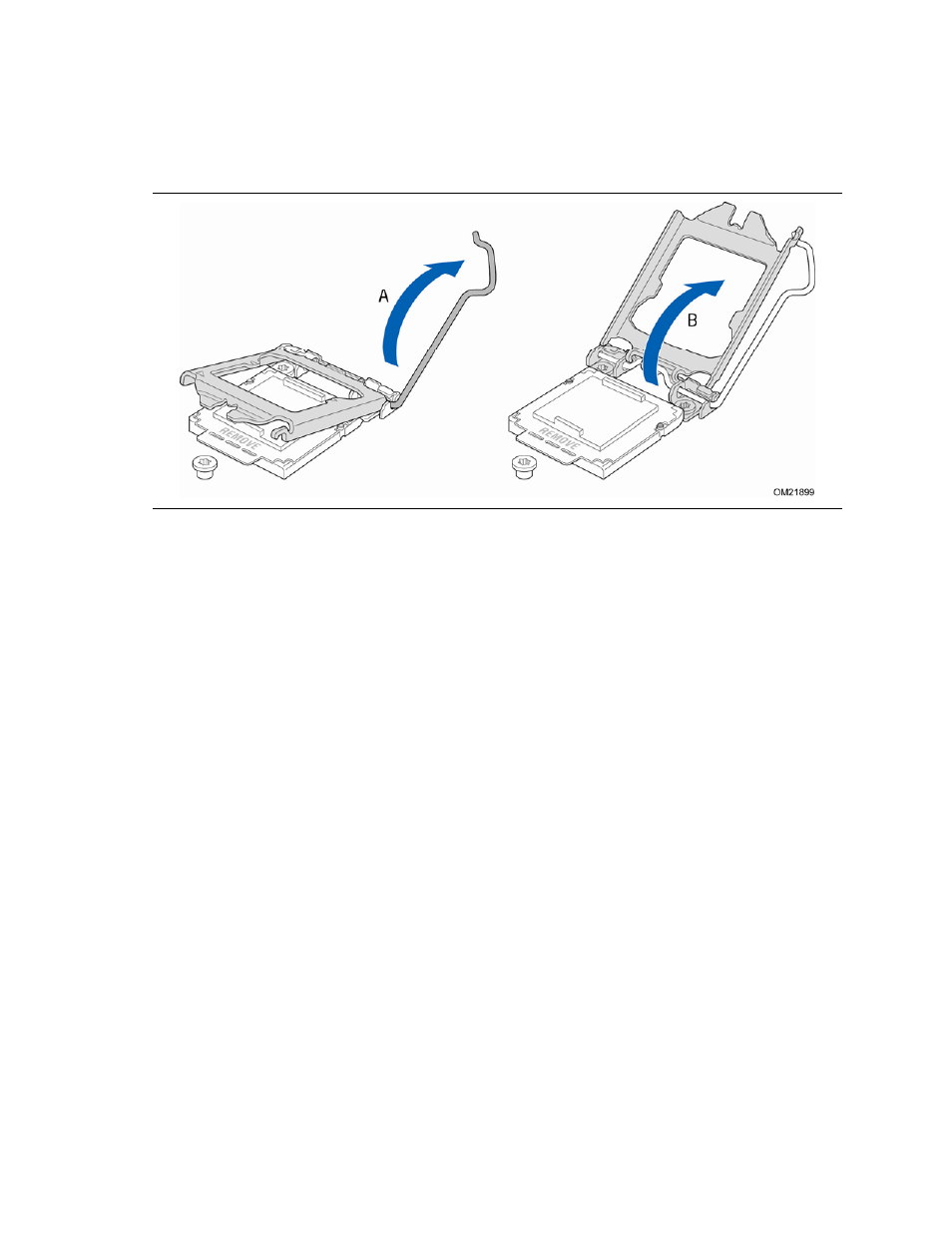

Figure 7. Lift the Load Plate
