Connecting to the internal headers – Intel DH55HC User Manual
Page 46
Intel Desktop Board DH55HC Product Guide
46
Connecting to the Internal Headers
Before connecting cables to any of the internal headers, observe the precautions in
“Before You Begin” on page 27. Figure 23 shows the location of the internal headers
and connectors on Intel Desktop Board DH55HC.

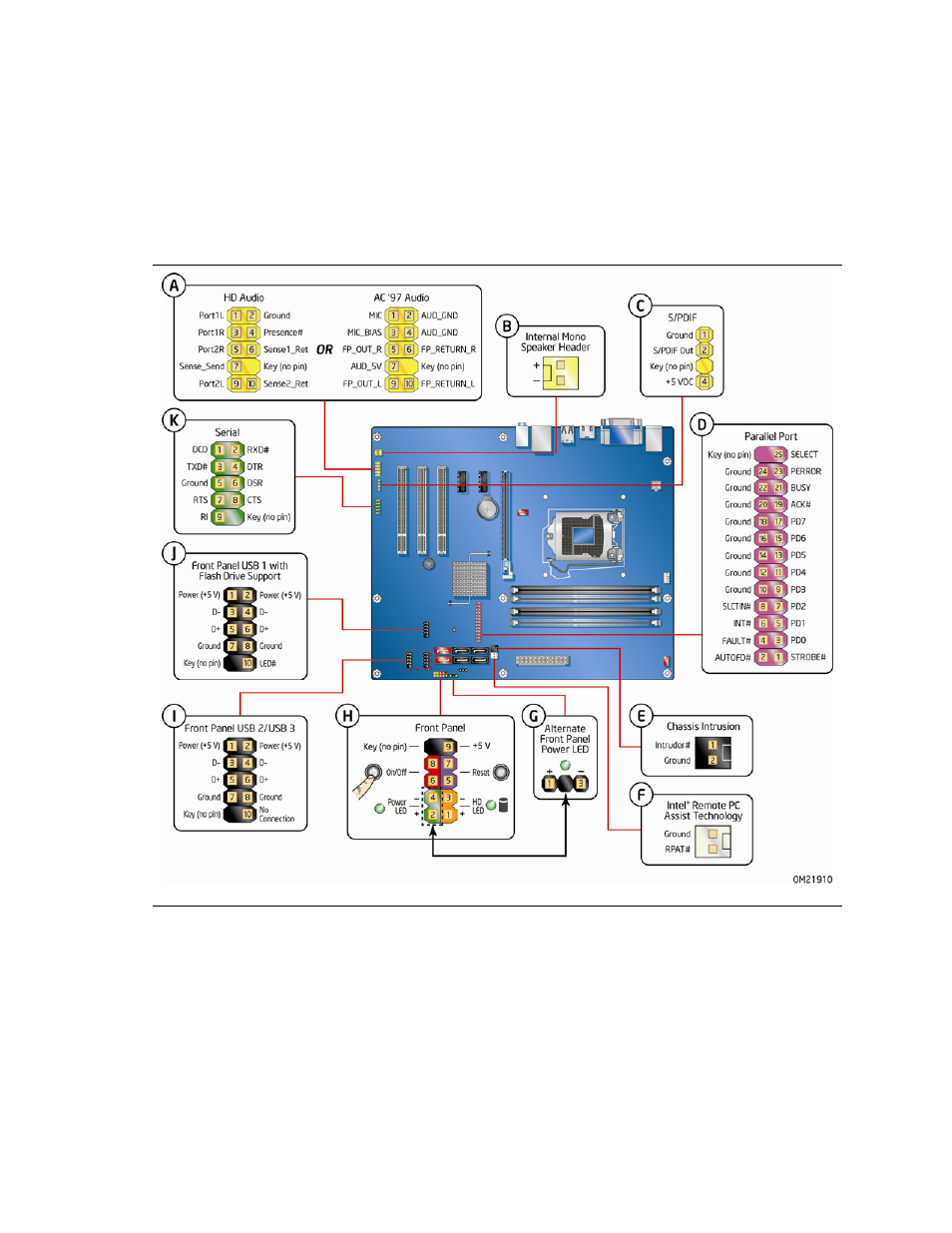

Figure 23. Internal Headers
