Diagram 4 – Impex SM-6200 User Manual

Page 26

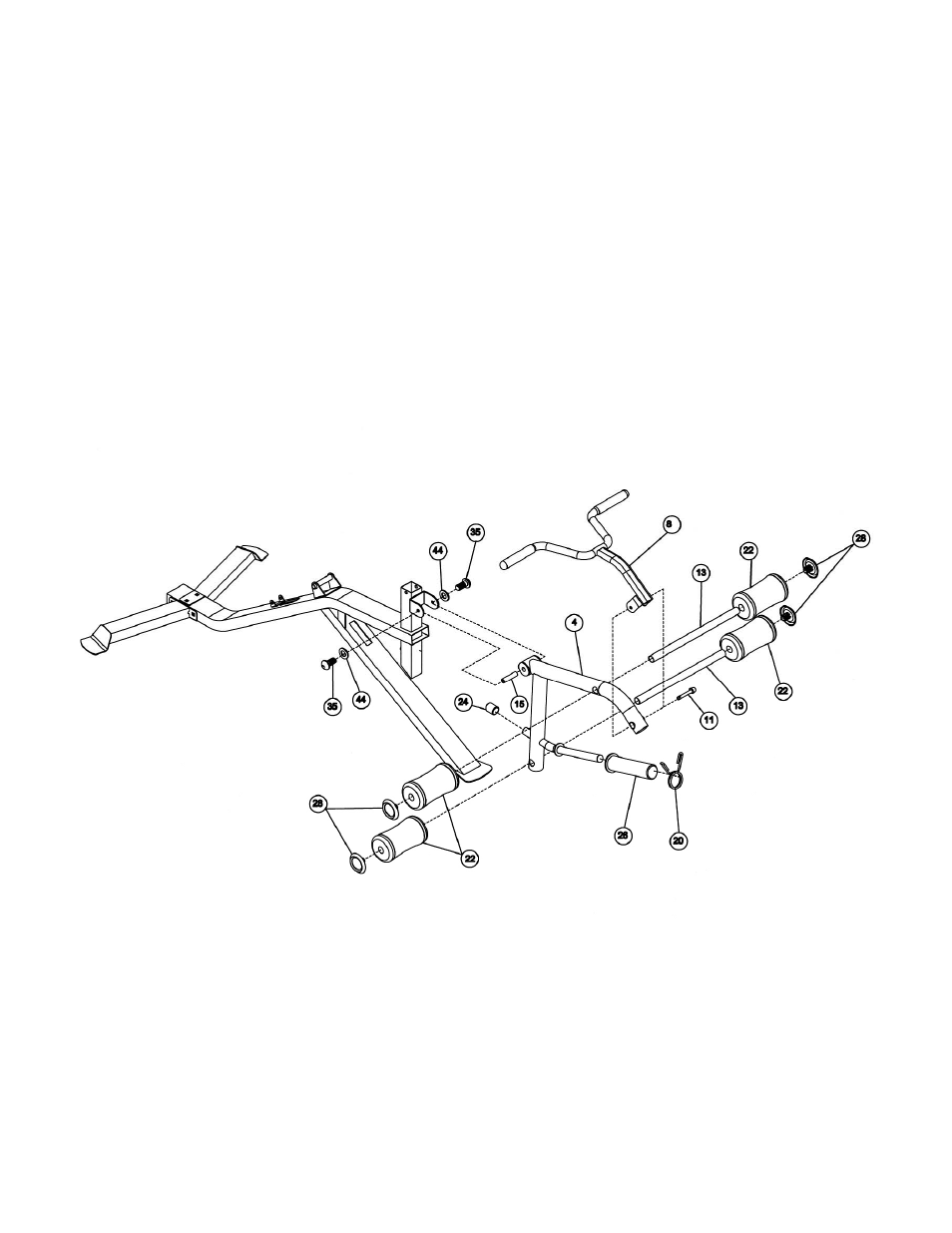

STEP 4 (See Diagram 4)

A.) Attach the Leg Developer (#4) to the open bracket on the Leg Developer holder on Main

Frame (#1). Secure it with an Axle (#15), two M10 x 5/8” Allen Bolts (#35), and two Ø ¾”
Washers (#44).

B.) Insert two Foam Tubes (#13) halfway through the holes on the Leg Developer. Push four

Foam Rolls (#22) onto the Tubes from both sides. Plug four Foam Roll End Caps (#28) into
the ends of the Tubes.

C.) Attach an Olympic Sleeve (#26) onto the weight post on the Leg Developer. Attach a Spring

Clip (#20) to the Olympic Sleeve.

D.) Attach the Curl Bar Handle Support (#8) to the Leg Developer. Secure it with a Lock Pin

(#11).

E.) Remove the Curl Bar Handle Support when doing Leg Developer exercises.

DIAGRAM 4
