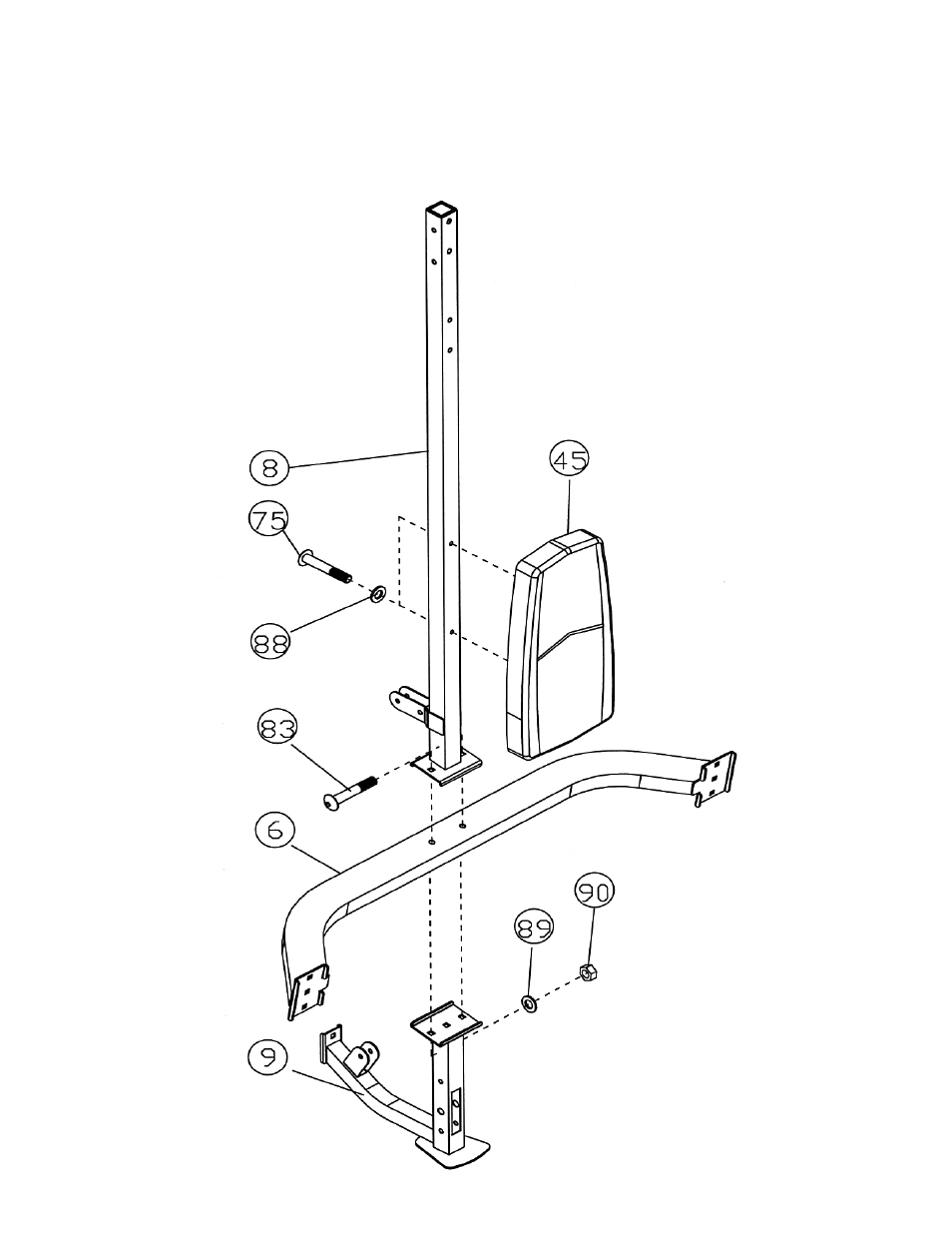

STEP 2 (See Diagram 2)
A.) Attach the Vertical Frame Base (#9) to the Cross Brace (#6) from the bottom. Attach the

Rear Vertical Frame (#8) onto the Cross Brace on the top. Align the holes and secure
them together with two M10 x 2 3/8” Carriage Bolts (#83), Ø ¾” Washers (#89), and M10
Aircraft Nuts (#90).

B.) Attach the Backrest Board (#45) to the Rear Vertical Frame (#8). Secure it with two M8 x 2

3/8” Allen Bolts (#75) and Ø 5/8” Washes (#88).
