STEP 2 (See Diagram 2)
A.) Align the bracket on the Backrest Adjustment Support (#6) in between the two
Backrest Supports (#12). Secure it with four M8 x 1 5/8” Allen Bolts (#40), eight Ø 5/8”
Washers (#45), and four M8 Aircraft Nuts (#48). Do not tighten the Nuts and Bolts
yet.
B.) Insert the Backrest Adjustment Support (#6) into the opening on the Main Frame (#1).
Press or step down on the Backrest Adjustment Lever (#9) to allow the Support to go
through.
C.) Attach the Seat Bracket (#5) to the pivot on the Main Frame. Attach the bottom side-
holes on the Backrest Supports (#12) to the Seat Bracket. Align the holes. Secure
them together with one M12 x 6 ¾” Allen Bolt (#38), two Ø 1” Washers (#43), and one
M12 Aircraft Nut (#46).
D.) Securely tighten all Nuts and Bolts installed.

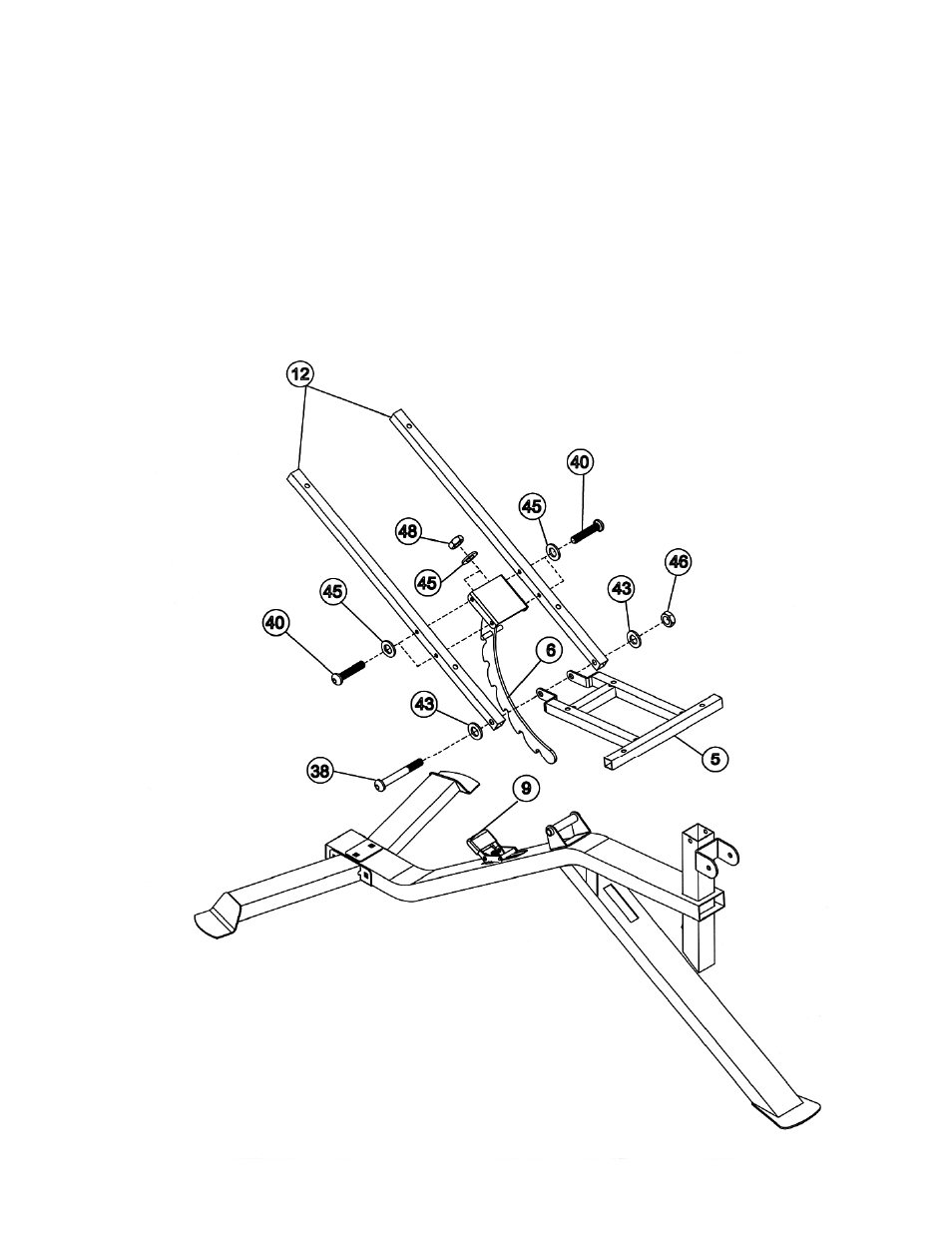

DIAGRAM 2
