Intel Integrated Touchscreen Computer J2 650 User Manual
Page 66
650 System Manual (Draft)
Version 0.4 August 20, 2008
66

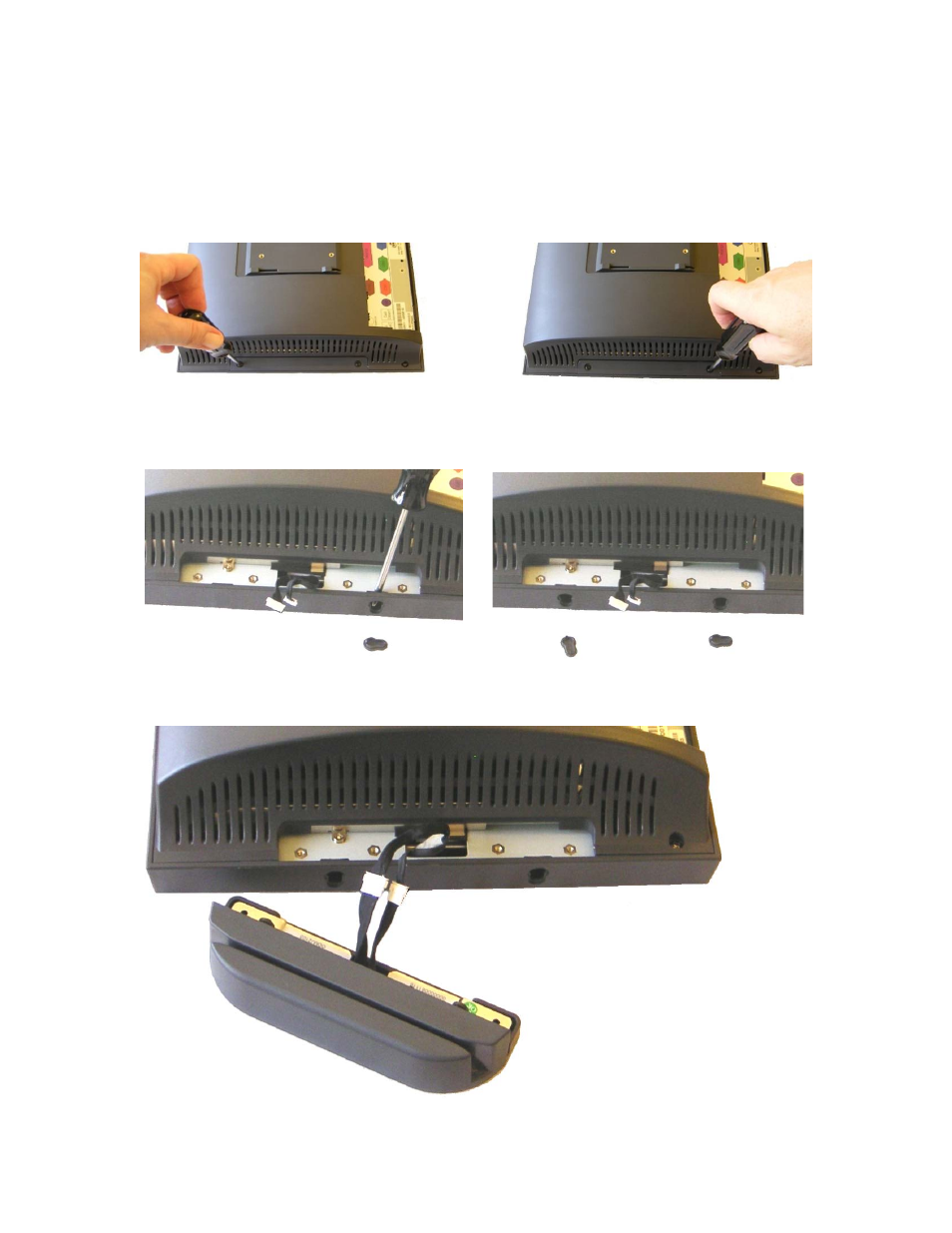

Installing the 650 MSR
The 650 MSR is installed by first removing the MSR cover plate on the right back side of
the unit. Remove the two screws, as shown.
Remove MSR cover plate
Two small plastic hole covers need to be removed, as shown.
Remove plastic hole covers
Connect the two cable pairs together as shown.
