Intel Integrated Touchscreen Computer J2 650 User Manual
Page 28
650 System Manual (Draft)
Version 0.4 August 20, 2008
28
Removing the Back Cover
The following steps show how to disassemble the 650 for servicing:

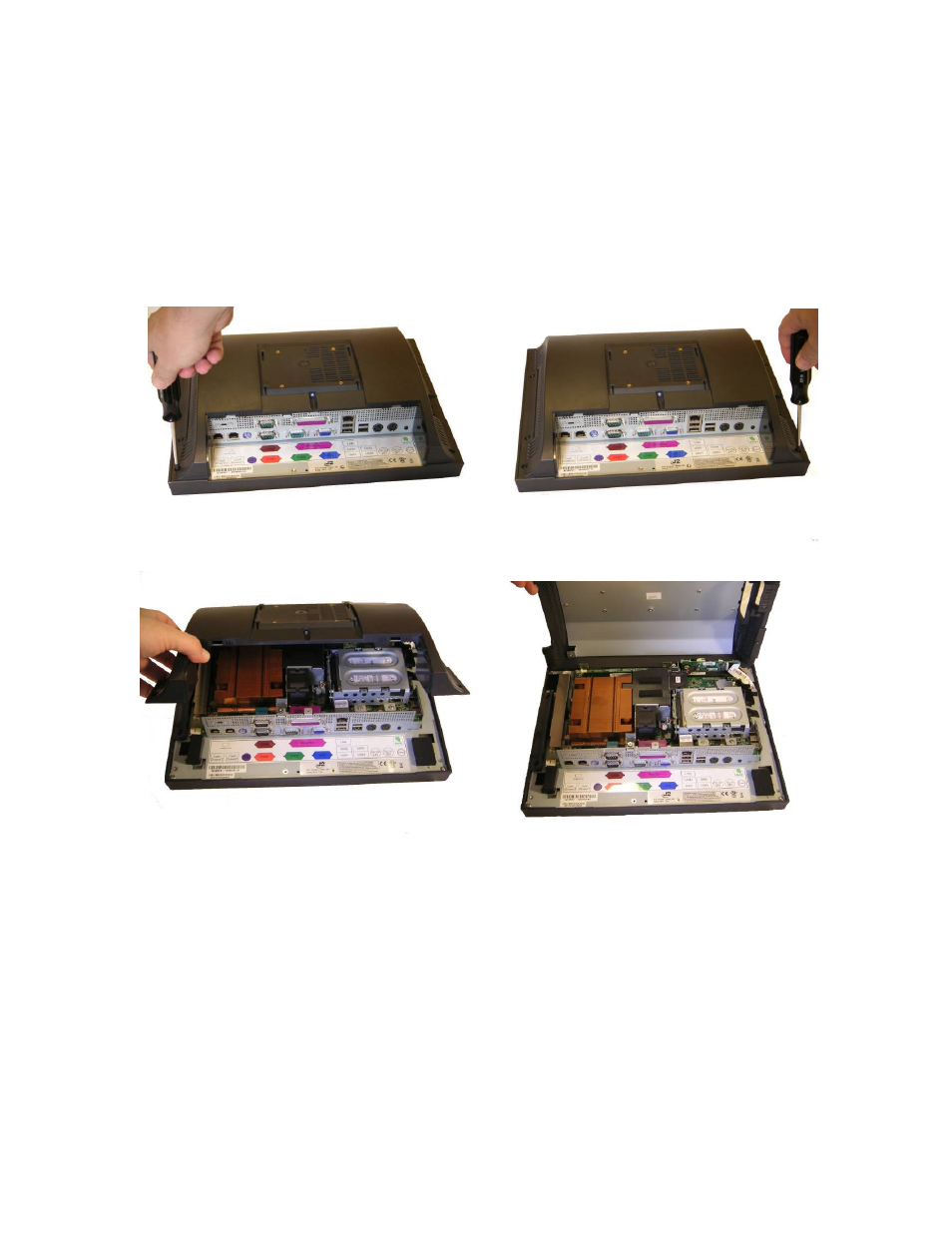

On a clean, protected surface, place the unit screen-side down. Remove the two cover
screws as shown. Carefully lift the back cover as shown.
Remove two screws as shown
Carefully tilt up the back cover
Note: The 650 was designed so that the internals of the unit could be accessed without
having to remove the mounting base or the mounting bracket of the unit.
