Intel Integrated Touchscreen Computer J2 650 User Manual
Page 29
650 System Manual (Draft)
Version 0.4 August 20, 2008
29
Changing the System Board
*Special Note: An anti-static workplace with proper grounding is required when
changing the System Board.

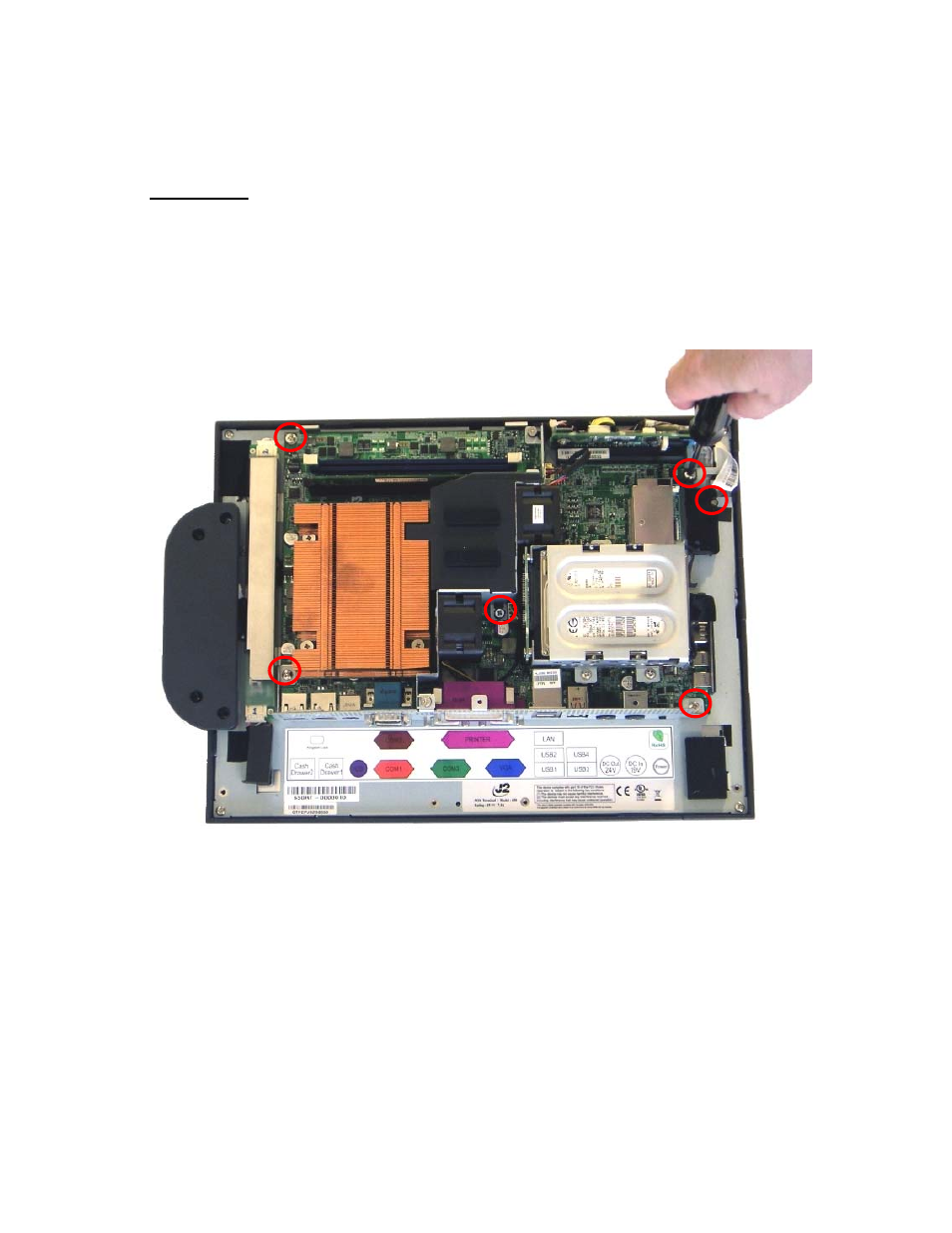

First remove the back cover. There are 5 screws that hold the system board in place that
will need to be removed; the middle screw is the captive type and only needs to be
loosened. The CF card guide also needs to be removed. (see photo below)
Screw location System Board
