9
Insignia NS-F20TR 20" Flat Tube TV/DVD/VCR Combo
www.insignia-products.com

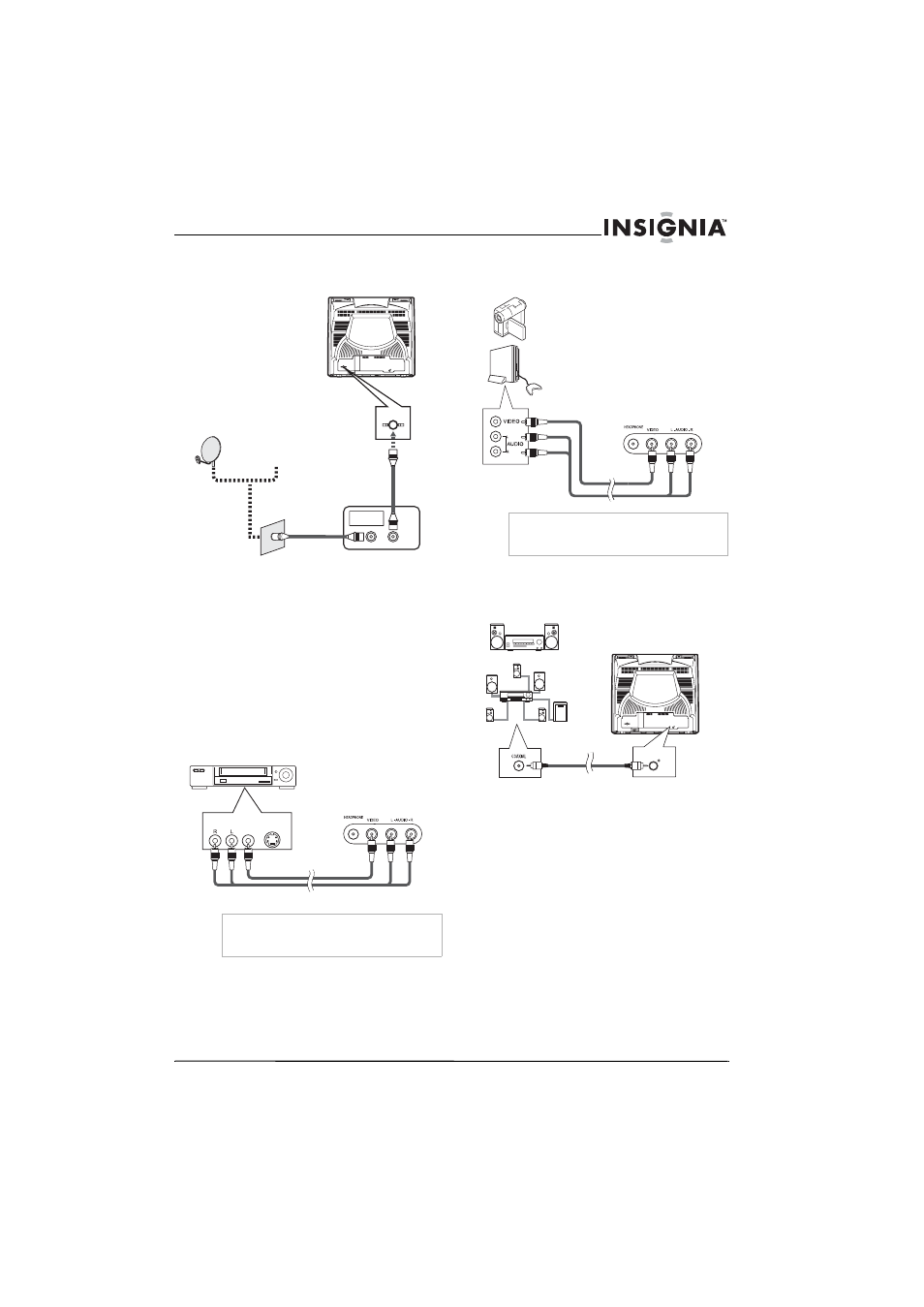

Connecting to a cable or satellite TV box
Use the following illustration to connect a cable
converter box or satellite receiver
To connect a cable or satellite TV box:
1 Connect an antenna cable to the cable or
satellite TV signal source, then connect the
other end of the cable to the input jack on the
cable converter box or satellite receiver.
2 Connect an antenna cable to the output jack
on the cable converter box or satellite
receiver, then connect the other end of the
cable to the ANT. jack on the back of your
TV combo.
Connecting a device to the front A/V jacks
Use the following illustration to connect an
external video device, such as a VCR, to the
front A/V jacks using a standard A/V cable.
Connecting a video camera or video game
Use the following illustration to connect a video
camera or video game.
Connecting a digital audio device
Use the following illustration to connect a digital
audio device.
Note
If the external video device uses monaural audio
(only one audio jack), use the AUDIO L jack on
your TV combo.
ANT. AUDIO OUT
COAXIAL
A N T . Satellite
antenna OR Cable TV
Satellite receiver or
cable converter box
Back of
TV combo
RF cable
IN OUT
Cables not included
AUDIO
OUT
VIDEO
OUT
S-VIDEO
OUT
External device
TV combo front A/V jacks
External device A/V jacks
Cables not included
Note
If the external video device uses monaural audio
(only one audio jack), use the AUDIO L jack on
your TV combo.
Video camera
Video game
External device
A/V jacks
TV combo front A/V jacks
Cables not included
ANT. AUDIO OUT
COAXIAL
AUDIO OUT
COAXIAL
MD deck, DAT deck
Dolby Digital
decoder
AUDIO OUT COAXIAL
jack (DVD/DTV AUDIO
OUT) Coaxial digital
audio input jack on
external device
Back of TV combo
Cables not included
