ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended two or more people assembling this
machine to avoid possible injury.

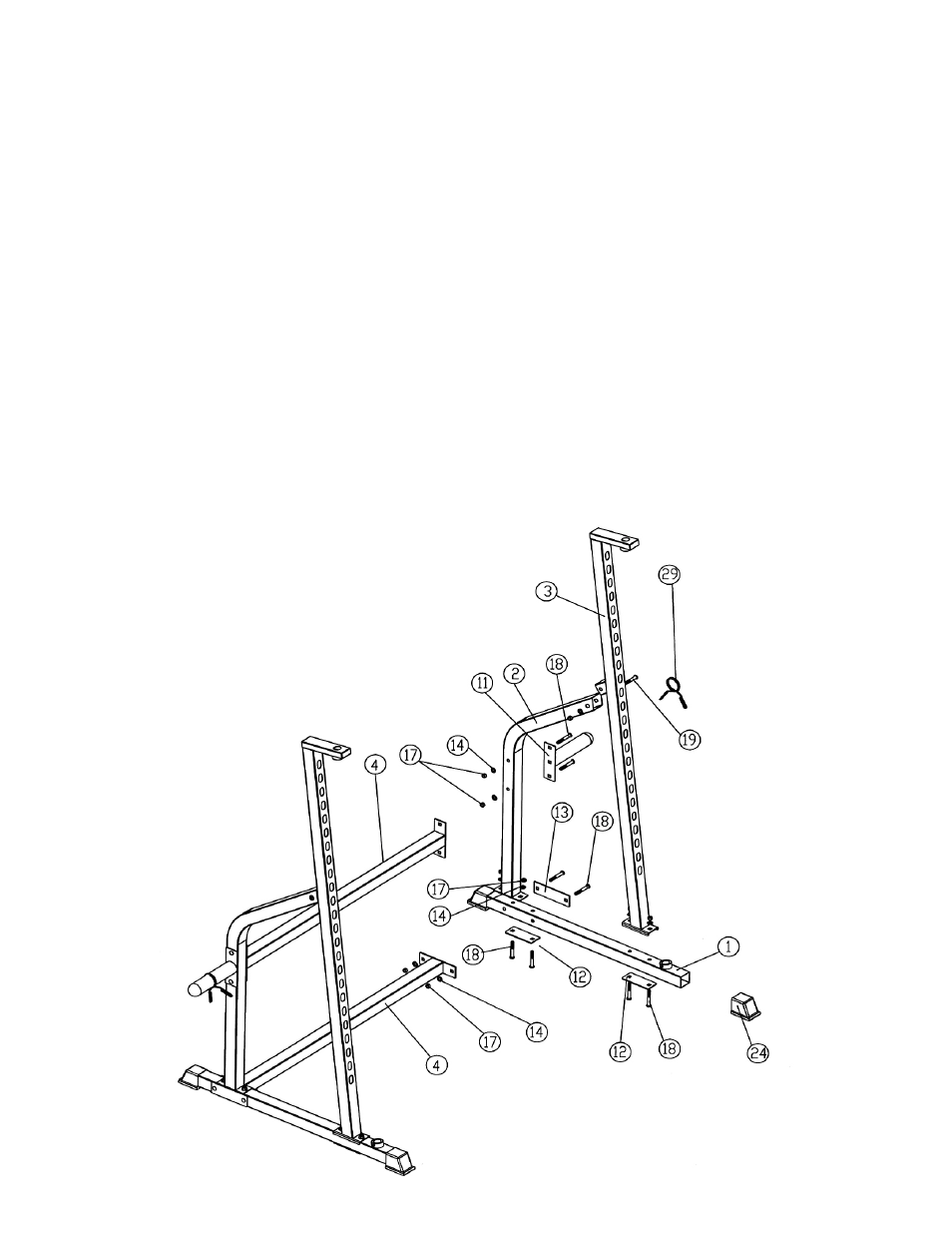

STEP 1 (See Diagram 1)
A.)
Note: Do not tighten the nuts and bolts until instructed to do so.
B.) Plug four 2” Stabilizer End Caps (#24) onto the end of the two Stabilizers (#1).
C.) Connect the two Stabilizers (#1) by a Cross Brace (#4) in the mid-span. Align the holes
and secure each end with one 6 ¼” x 2” Bracket (#13), two M10 x 2 ¾” Carriage Bolts
(#18), two
∅
¾” Washers (#14), and two M10 Aircraft Nuts (#17).
D.) Place an Upright Beam (#3) onto a Stabilizer. Secure it with one 4 ¾” x 2” Bracket (#12),
two M10 x 2 ¾” Carriage Bolts (#18), two Ø ¾” Washers (#14), and two M10 Aircraft Nuts
(#17). Repeat the same step to install the other Upright Beam.
E.) Attach a Rear Support (#2) to a Stabilizer and an Upright Beam. Secure the Support to
the Stabilizer with one 4 ¾” x 2” Bracket (#12), two M10 x 2 ¾” Carriage Bolts (#18), two Ø
¾” Washers (#14), and two M10 Aircraft Nuts (#17). Secure the Support to the Upright
Beam with one M10 x 2 ½” Allen Bolt (#19), two Ø ¾” Washers (#14), and one M10
Aircraft Nut (#17). Repeat the same step to install the other side.
F.) Place a Cross Brace (#4) in between the two Rear Supports (#2). Secure each end with
one Weight Storage Post (#11), two M10 x 2 ¾” Carriage Bolts (#18), two Ø ¾” Washers
(#14), and two M10 Aircraft Nuts (#17). Attach a Spring Clip (#29) to each Weight Post.
