Page 8

STEP 4 (See Diagram 4)

A.) Attach the Seat Pad (#9) to the Seat Adjustment Frame (#7). Secure it with two M8 x 1

3/8” Allen Bolts (#39) and

∅

5/8” Washers (#44).

B.) Insert the Seat Adjustment Frame into the opening on the Main Frame. Insert the Lock

Knob (#37) to secure the Seat.

C.) Attach the Arm Pad (#10) to the Main Frame (#2). Secure it with two M8 x 1 3/8” Allen

Bolts (#39) and

∅

5/8” Washers (#44). Please note there are three sets of holes to select

from.

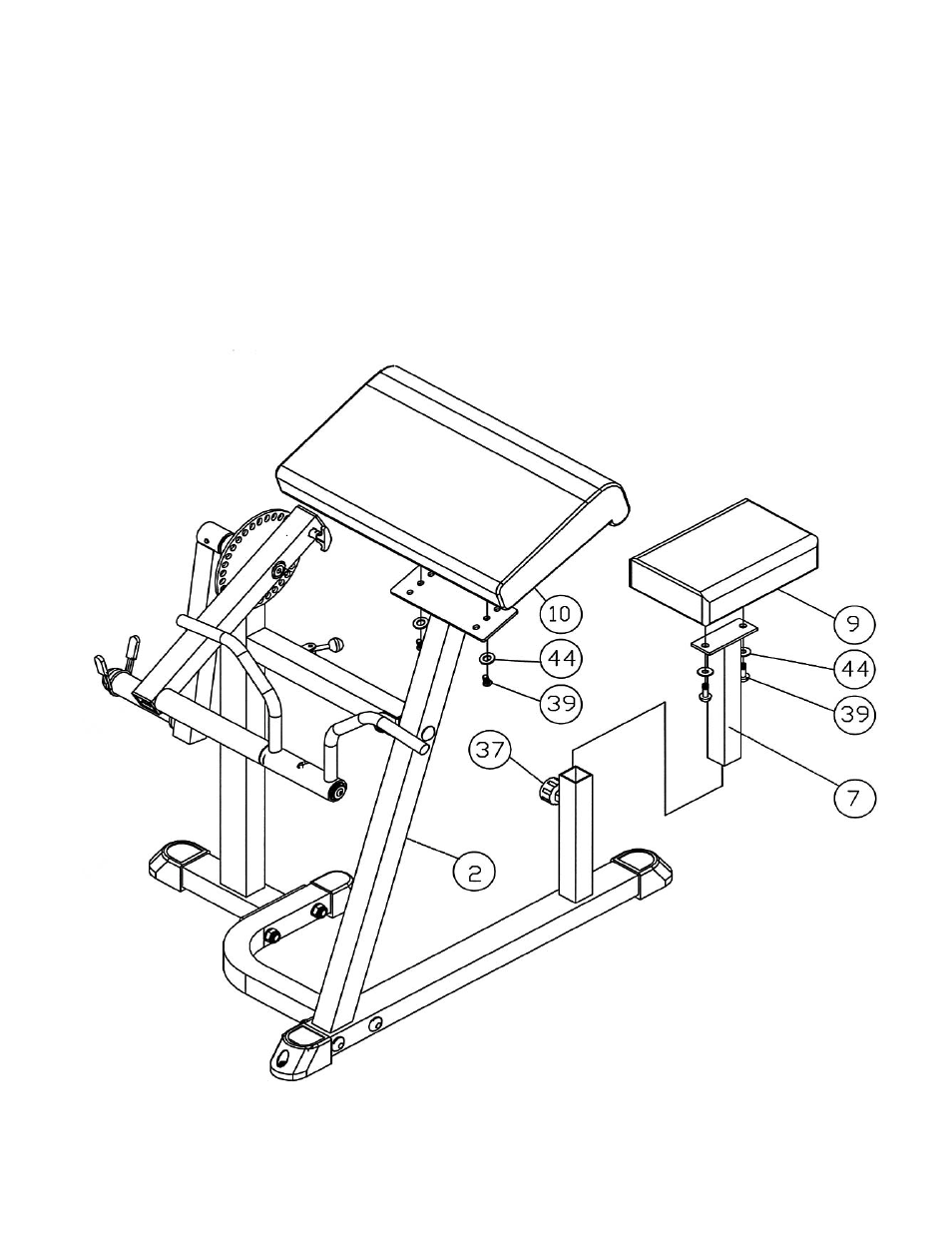

DIAGRAM 4
