STEP 2 (See Diagram 2)
A.) Attach a U-Shaped Bracket (#35) to the Main Frame (#2). Secure it with a M10 x
2 ¾” Allen Bolt (#36), two
∅
3/4” Washers (#32), and one M10 Aircraft Nut (#31).
B.) Attach the bottom of the Support Frame (#1) to the Stabilizer Frame (#3). Secure
it with two M10 x 2 ¾” Carriage Bolts (#48),
∅
¾” Washers (#32), and M10
Aircraft Nuts (#31).
C.) Attach the upper portion of the Support Frame (#1) to the U-Shaped Bracket on
the Main Frame (#2). Secure it with a M10 x 2 ¾” Allen Bolt (#36), two
∅
¾”
Washers (#32), and one M10 Aircraft Nut (#31).

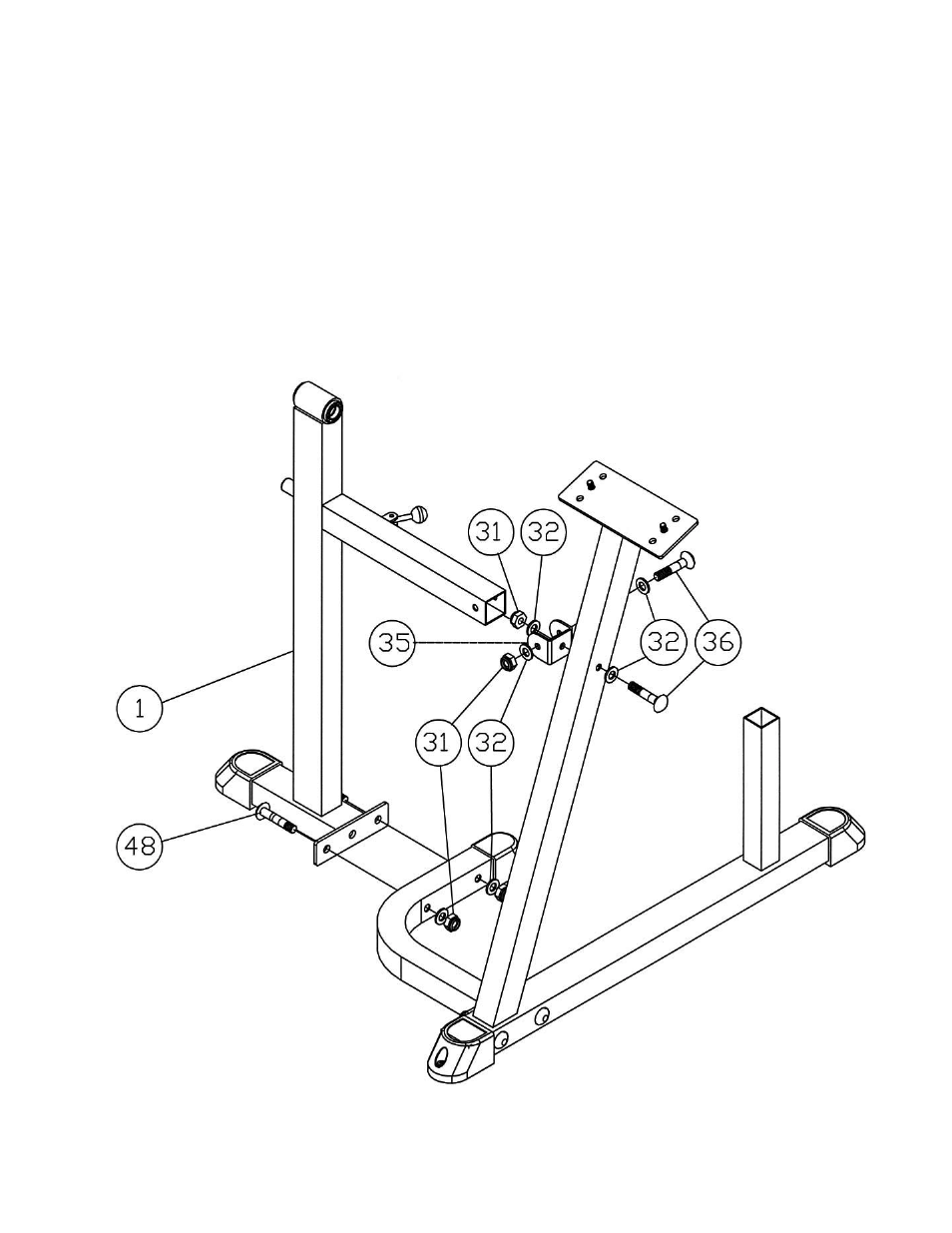

DIAGRAM 2
