ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Adjustable Wrench, Allen Wrench
and Hammer
NOTE: It is strongly recommended this machine to be assembled by two or
more people to avoid possible injury.

STEP 1 (See Diagram 1)
A.) Attach the Stabilizer Frame (#3) to the Main Frame (#2). Secure it with two M10 x

3 ½” Carriage Bolts (#47),

∅

¾” Washers (#32) and M10 Aircraft Nuts (#31).

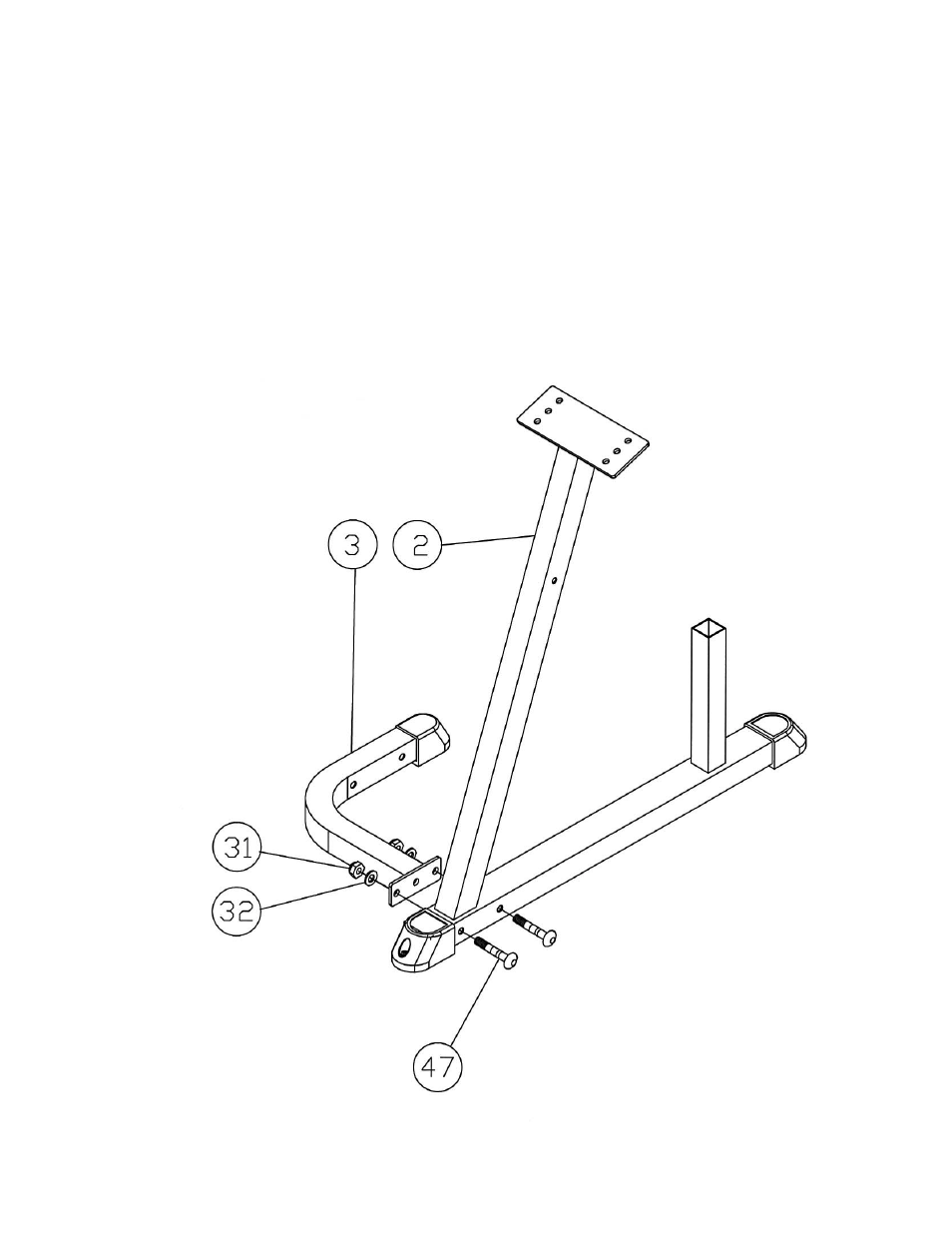

DIAGRAM 1
