WallPlate Installation
Motorola, Inc. 549453-001-00-a Page 21 of 51
I I n n s s t t a a l l l l a a t t i i o o n n 1 1 : : I I n n s s t t a a l l l l o o v v e e r r 7 7 0 0 m m m m x x 1 1 1 1 4 4 m m m m w w a a l l l l p p l l a a t t e e

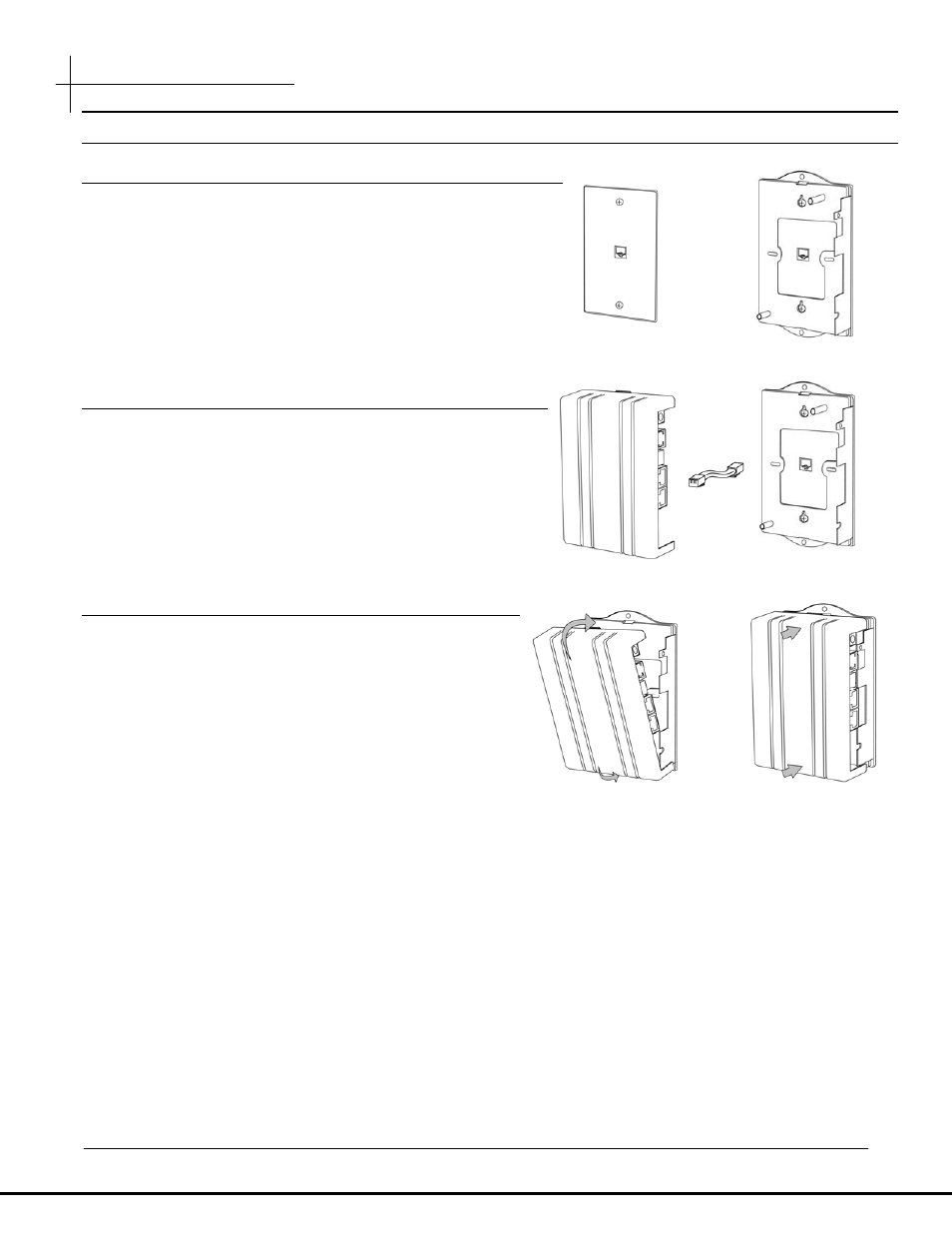

Step 1: Install bracket over existing wall plate
1. Loosen retaining screws on the existing RJ11 wall plate
2. Align bracket keyhole slots over retaining screw heads
3. Slide bracket over retaining screws
4. Tighten retaining screws to affix bracket to RJ11 wall plate
Step 2: Install RJ11 line cable
5. Connect short RJ11 pigtail cable to internal RJ11
connector on the m2a circuit board
6. Connect other side of RJ11 pigtail cable to RJ11 connector
on the RJ11 wall plate
Step 3: Attach cover to the bracket
7. Use a slight angle to align the bottom connector.
8. Apply firm pressure to the top and bottom of cover to
snap the connectors in place.
9. Install two (2) set screws in the pre-drilled holes in the
top of the cover.
