1-20
English-19
English
Power Indicator
Using Power Management
The LCD monitor follows the VESA approved DPM Power
Management function.
The power management function is an energy saving
function that automatically reduces the power consumption
of the display when the keyboard or the mouse has not been
used for a fixed period.
The power management feature on your new display has
been set to the “ON” mode. This allows your display to enter
a Power Saving Mode when no signal is applied. This could
potentially increase the life and decrease the power
consumption of the display.
Selecting a video source
To view a video source:
Use the input button to set[VIDEO]
Use the COLOR SYSTEM menu to set [AUTO], [NTSC],
[PAL], [SECAM], [PAL60], [4.43NTSC], in according to your
video format.

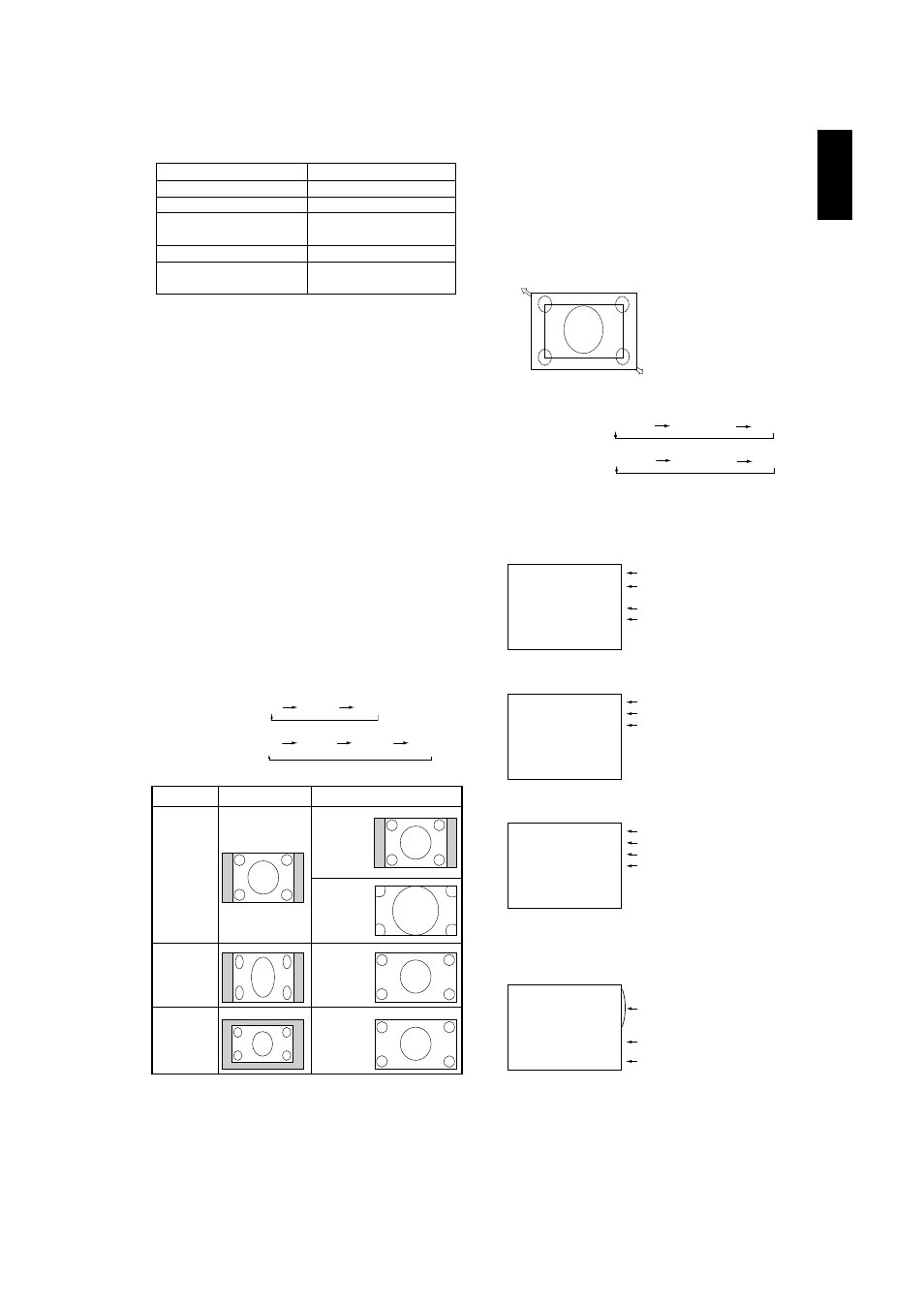

Picture Size
RGB 1, 2, 3 FULL ZOOM NORMAL
DVD/HD,VIDEO FULL WIDE ZOOM NORMAL
Status
Power ON Green
Power OFF Red
Power Standby when Red On
“SCHEDULE” is enable Green Blinking
Power Standby Red, Green
Diagnosis (Detecting failure) Red Blinking
* See troubleshooting on page 33
RGB1, 2, 3
Information OSD
Signal Type
NORMAL
ZOOM
(DYNAMIC)
FULL
WIDE
4:3
Squeeze
Letter box
NORMAL SIZE Recommended Size
NORMAL: Display by the inputed signal aspect ratio by PC
signal, or display in 4:3 aspect ratio at DVD/HD or VIDEO
signal.
FULL: Display in entire screen.
WIDE: Expand 16:9 letter box signal to entire screen.
ZOOM (DYNAMIC): Expand 4:3 pictures to the entire screen
with non-linearity. (Some around image will be cut by expansion.)
ZOOM
Image can be expanded beyond the active display area. The
image which is outside of active display area is not displayed.
ZOOM
ZOOM
RGB2
1024 x 768
48kHz 60Hz
AUDIO : 1
SIZE : FULL
DVD/HD
AUDIO : 3
SIZE : WIDE
VIDEO
NTSC
AUDIO : 3
SIZE : NORMAL
RGB2
1024 x 768
48kHz 60Hz
AUDIO : 1
VIDEO
NTSC
SIZE : FULL
)
)
DVD/HD
VIDEO
PIP or POP
Main:RGB2
Sub:Video
Video Input mode
Input signal Information
Audio input mode
Picture Size mode
Video Input mode
Audio Input mode
Picture Size mode
Video Input mode
Input Signal Color System mode
Audio Input mode
Picture Size mode
Main picture Information
Sub picture Information
Main picture Information
Picture Mode
RGB 1, 2, 3 HIGHBRIGHT STANDARD sRGB
DVD/HD,VIDEO HIGHBRIGHT STANDARD CINEMA
