6 - 2
TM
CHAP.
6
•

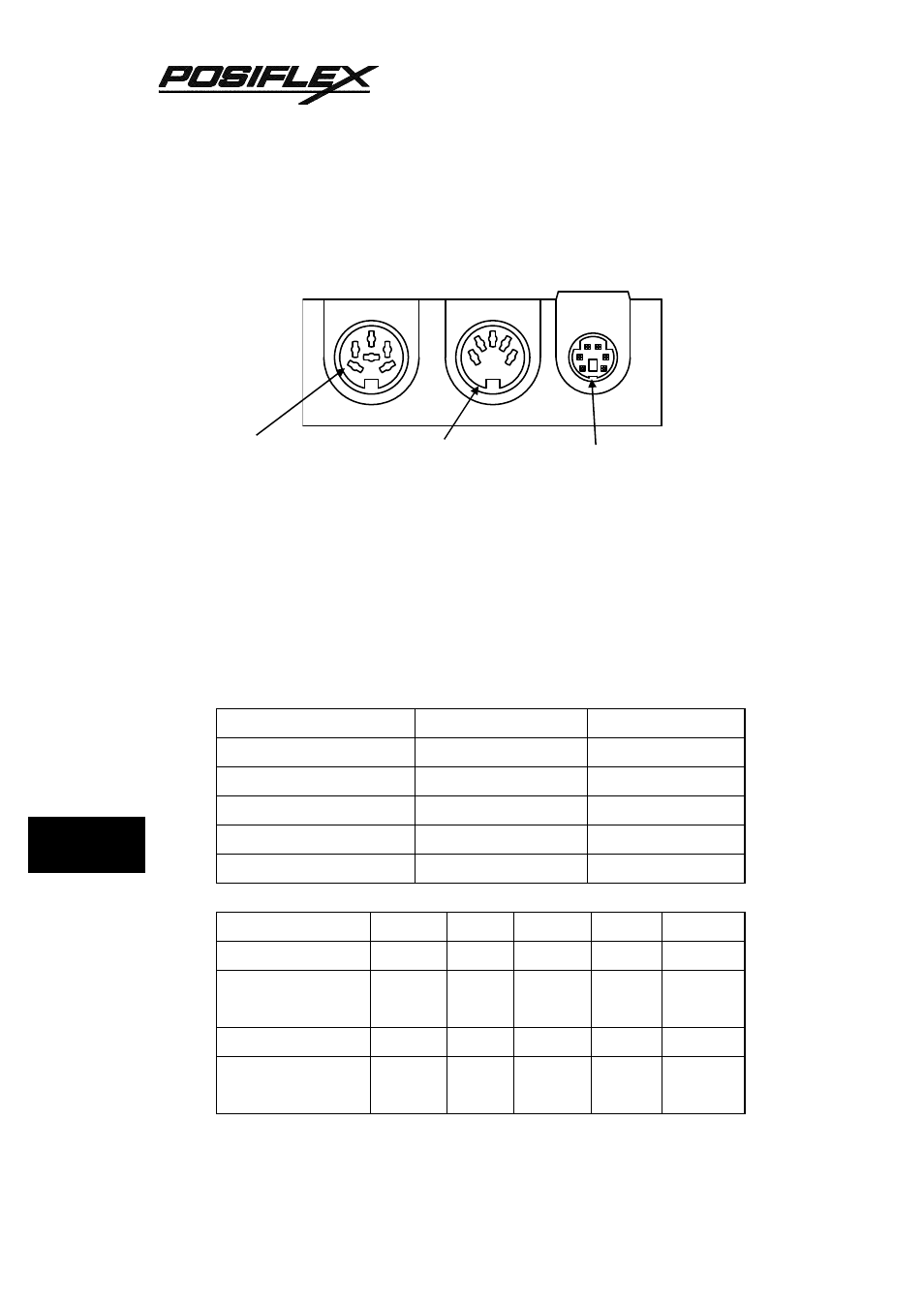

5 pin DIN female connector: connect to input PC keyboard or Daisy Chain
device
•
6 pin mini DIN female connector: connect to input PS2 keyboard
MAGNETIC STRIPE READER:
•
Decoder & interface............. Built in keyboard wedge interface
•
Tracks.................................. 1 & 2 (KB3100/1M2 for ISO7811) or
1, 2 & 3 (KB3100/1M3 for ISO7811) or
2 & rear (KB3100/1MJ for JIS X 6302)
•
Start/end sentinels.................. Can be disabled by hardware jumper
Reader specification
Applicable card type ISO 7811 JIS X 6302
Card feed method Manual Manual
Card feed direction Bi-direction Uni-direction
Read / write function Read only Read only
Card feed speed 5 to 55 inches/sec. 100 ~ 1200 mm/sec.
Error rate Less than 0.5% Less than 0.1%
Card data format
Card standard IATA ABA THRIFT JIS I JIS II
Track used Track 1 Track 2 Track 3 Track 2 Rear side
Recording method F2F
(FM)
F2F
(FM)
F2F
(FM)
F2F
(FM)
F2F
(FM)
Recording density 210 BPI 75 BPI 210 BPI 75 BPI 210 BPI
Recording capacity
characters / bits
79 / 7 40 / 5 107 / 5 40 / 5 72 / 7
Connects to PC through
CCBLA-055-2 Connects to PC keyboard
or Daisy Chain device Connects to
PS2 keyboard
