3 - 1
TM
CHAP.
3
INSTALLATION
CABLE CONNECTION
Take the cable CCBLA-055-2 out of the accessory bag and connect the 6 pin
DIN male plug of the cable to the central 6 pin female connector at the bottom of the
programmable keyboard (ref. Fig. 3-1), connect the other end (5 pin DIN male plug)
to the PC or a compatible system. Connect the PC keyboard or any other keyboard
wedged input device such as a CCD scanner to the 5 pin DIN female connector at the
bottom of the programmable keyboard if such connection is required.
For installation in a PS2 or a compatible system, connect the 6 pin DIN male
plug of cable CCBLA-055-2 to the central 6 pin DIN female connector at the bottom
of the programmable keyboard as the way for PC. Connect the 5 pin DIN male plug
through a DIN 5 female - mini DIN 6 male transform plug to the PS2 or a compatible
system. Connect the PS2 keyboard or other PS2 keyboard wedged device like a CCD
scanner to the 6 pin mini DIN female connector at the bottom of the programmable
keyboard.
M A G N E T IC S T R IP
E
R E A D E
R
P O W E
R
L 4 L 3L 2L 1 L O L P

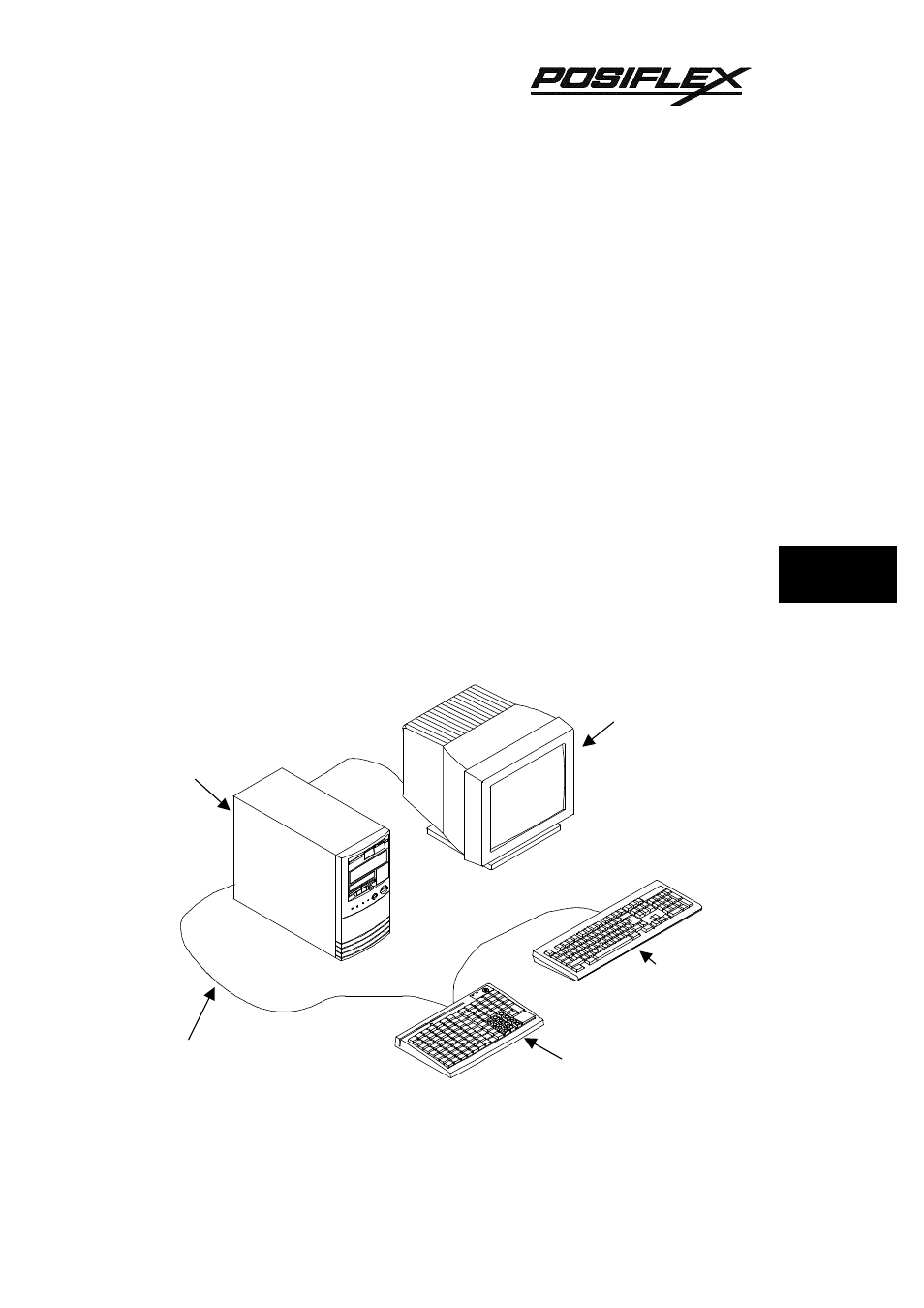

Fig. 3 - 1
KB-3100
PC KB
Monitor
PC
CCBLA-055-2
