34020201EN/AB - Page 9
PMM
≥
720 mm
≥
400 mm

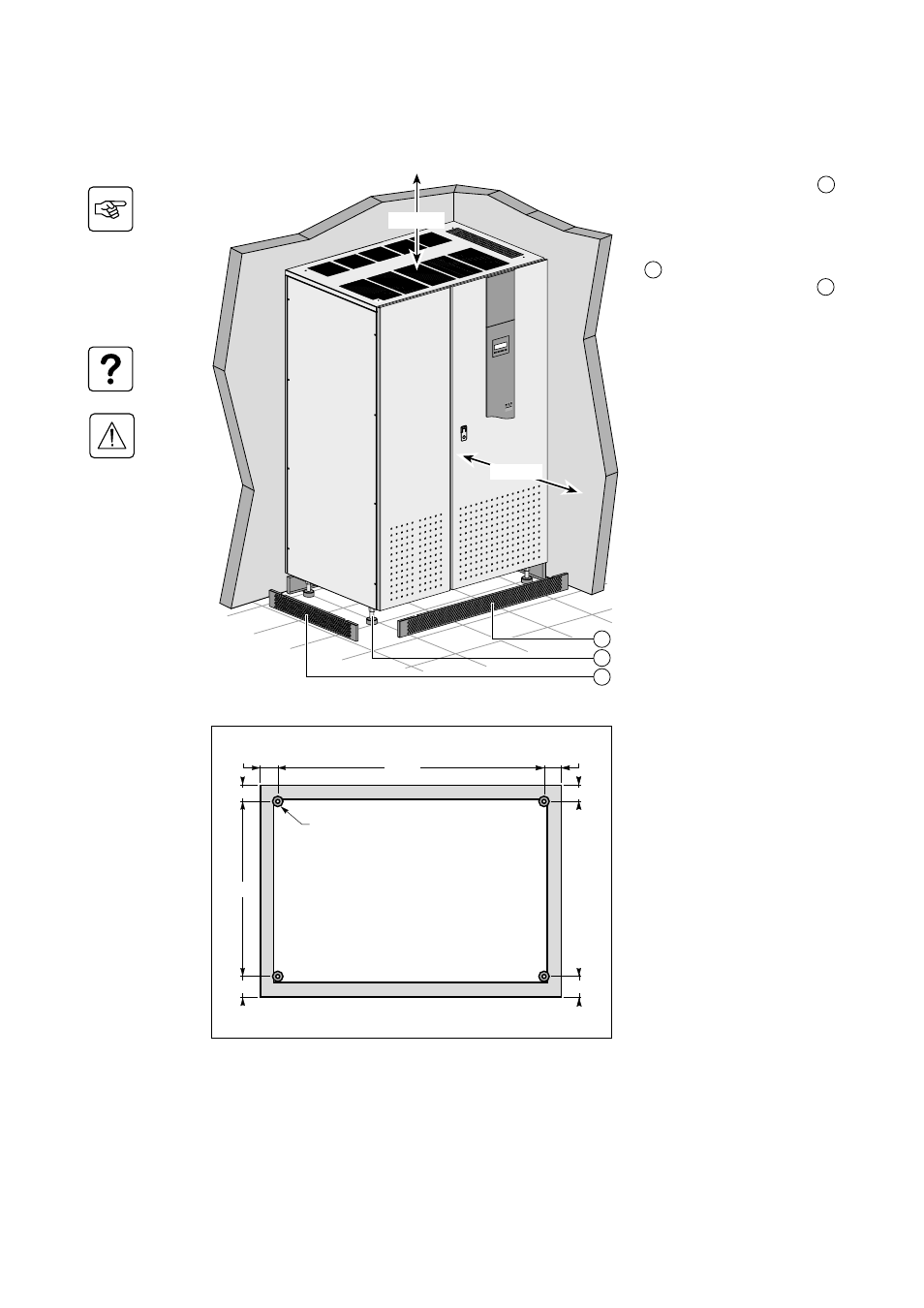

2. Installation
2.1 Setting up the module
Module 825 mm deep
1. Install the lower base panels 23 on the
sides that will not be accessible (not
mandatory).
2. Position the module.
3. Level the module using the adjustable feet
24 .
4. Install the lower base panels 23 on the
visible sides.
23
24
Footprint of module
Weight exerted on the floor by the four feet:
◗ 28 kg/cm 2 (module without transformer),
◗ up to 72 kg/cm 2 (module with transformer).
Rear of module
Front of module
4 feet, diameter 40 mm
Connection cables run under the false floor
or in a cable trough.
Important.
At least 400 mm of free space is required
above the module to ensure correct
ventilation.
At least 720 mm of free space is required
in front to open the doors.
69.5 69.5
67 67
82 82
676
1076
23
