page 22 — DCa300SSC / DCa300SSCU gen. • operation anD partS manUal — rev. #1 (08/10/11)
OUtpUt terMinaL paneL faMiLiarizatiOn
oUtpUt terminal panel
The Output Terminal Panel (Figure 6) shown below is
located on the right-hand side (left from control panel) of
the generator. Lift up on the cover to gain access to
receptacles and terminal lugs.
NOTICE
Terminal legs “O” and “Ground” are considered bonded
grounds
oUtpUt terminal Familiarization
The “Output Terminal Panel ” (Figure 6) is provided with
the following:
„ Three (3) 240/139V output receptacles @ 50 amp
„ Three (3) Circuit Breakers @ 50 amps
„ Two (2) 120V GFCI receptacles @ 20 amp
„ Two (2) GFCI Circuit Breakers @ 20 amps
„ Eight (8) Output Terminal Lugs ( U, V, W, O, Ground)

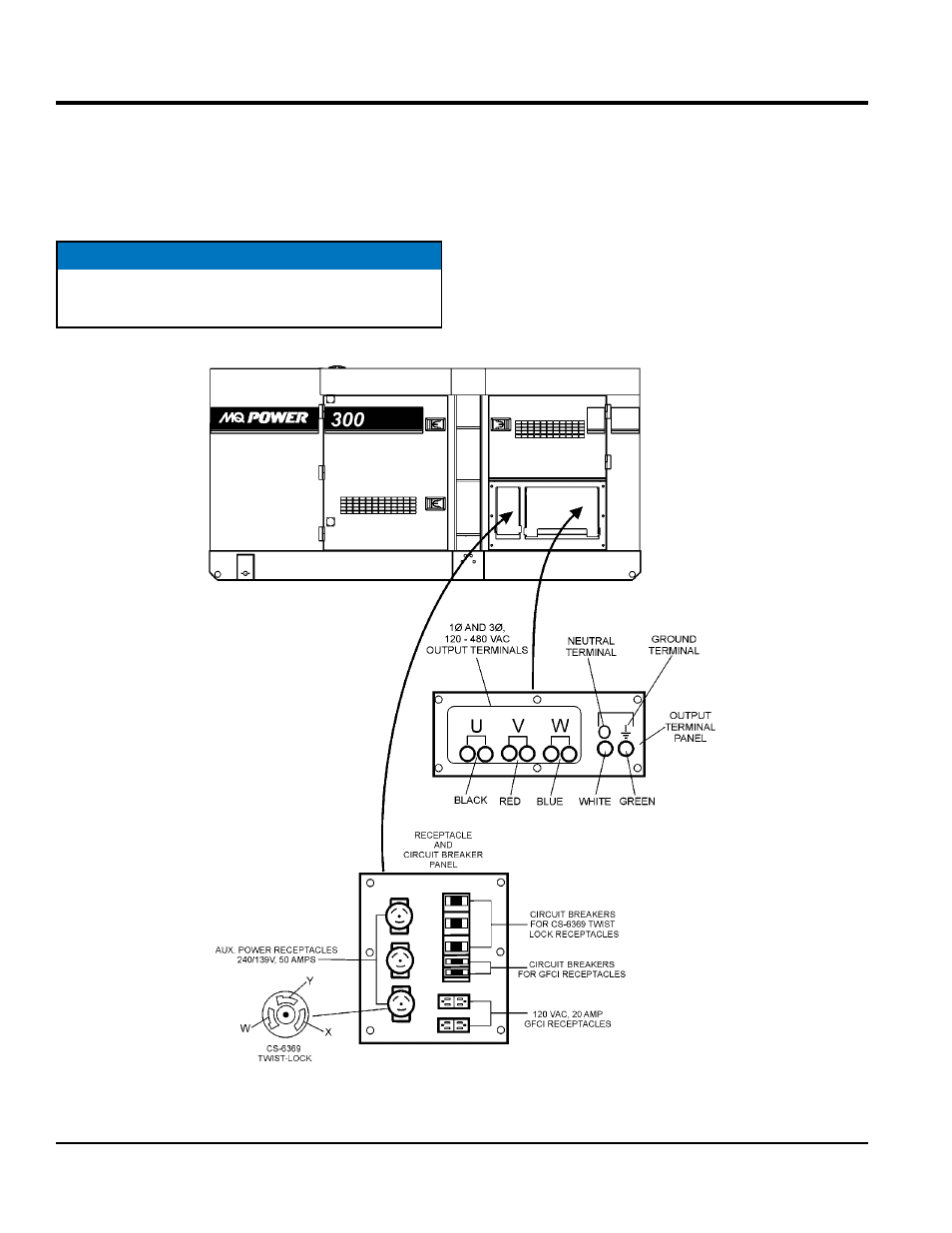

Figure 6. Output Terminal Panel
