DCa300SSC / DCa300SSCU gen. • operation anD partS manUal — rev. #1 (08/10/11) — page 13

DiMensiOns

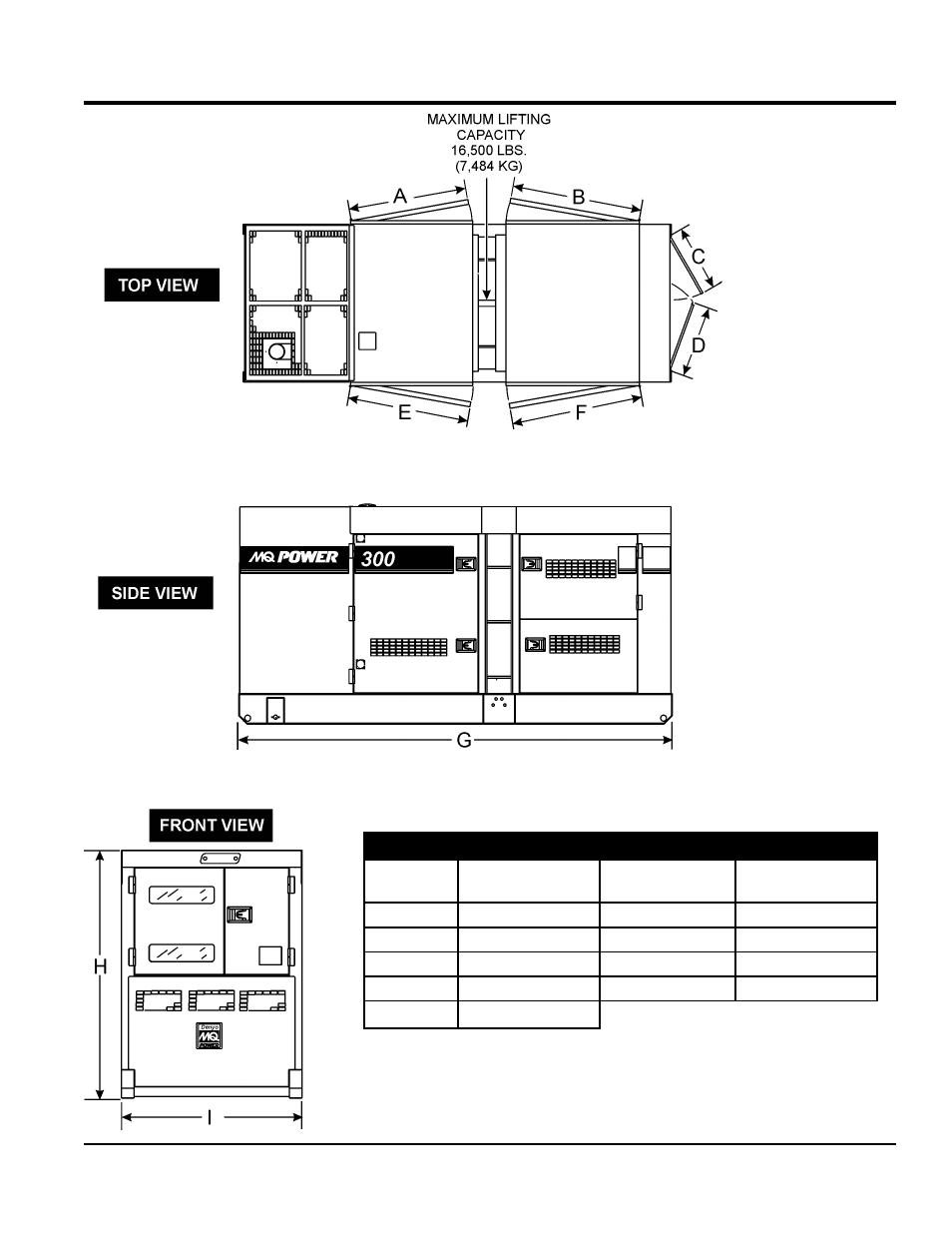

Figure 1. Dimensions

Table 3. Dimensions

reference

letter

Dimension in. (mm)

reference letter

Dimension in. (mm)

A

39.76 in. (1,010 mm)

F

43.90 in. (1,115 mm)

B

43.90 in. (1,115 mm)

G

149.61 in. (3,800 mm)

C

23.03 in. (585 mm.)

H

70.87 in. (1,800 mm)

D

25.20 in. (640 mm)

I

55.12 in. (1,400 mm)

E

39.76 in. (1,010 mm)
