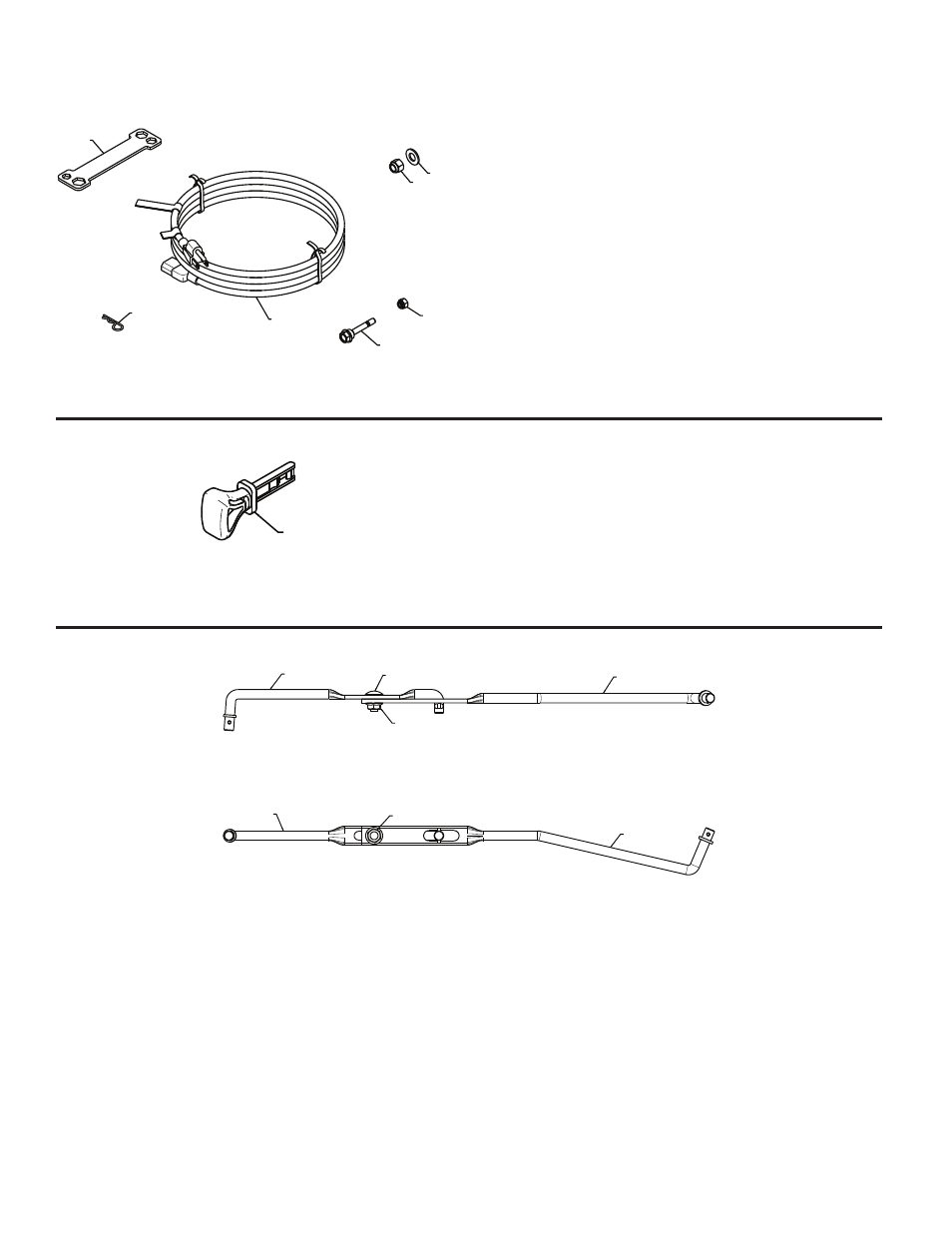

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC12527ES (96192004800)
BAG OF PARTS
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
1
2
2
3
01.14.012-A
4
4
1 532 18 04-45 SHIFTER ROD TOP
2 532 18 77-16 SHIFTER ROD BOTTOM
3 872 27 05-05 CARRIAGE BOLT 5/16-18 X .75
4 532 15 53-77 NUT 5/16-18
1
2
3
4
5
6
7
01.14.004-B
1 532 19 85-63 POWER CORD
2 532 16 96-75 RETAINER PIN
3 532 42 91-12 WRENCH
4 873 80 06-00 LOCKNUT 3/8−16
5 819 13 13-16 WASHER 3/8
6 532 19 20-90 SHEAR BOLT 1/4−20 X 1−3/4
7 873 80 04-00 LOCKNUT 1/4−20
01.14.009-B
1
1 532 44 30-59 SAFETY IGNITION KEY KIT
