27
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION

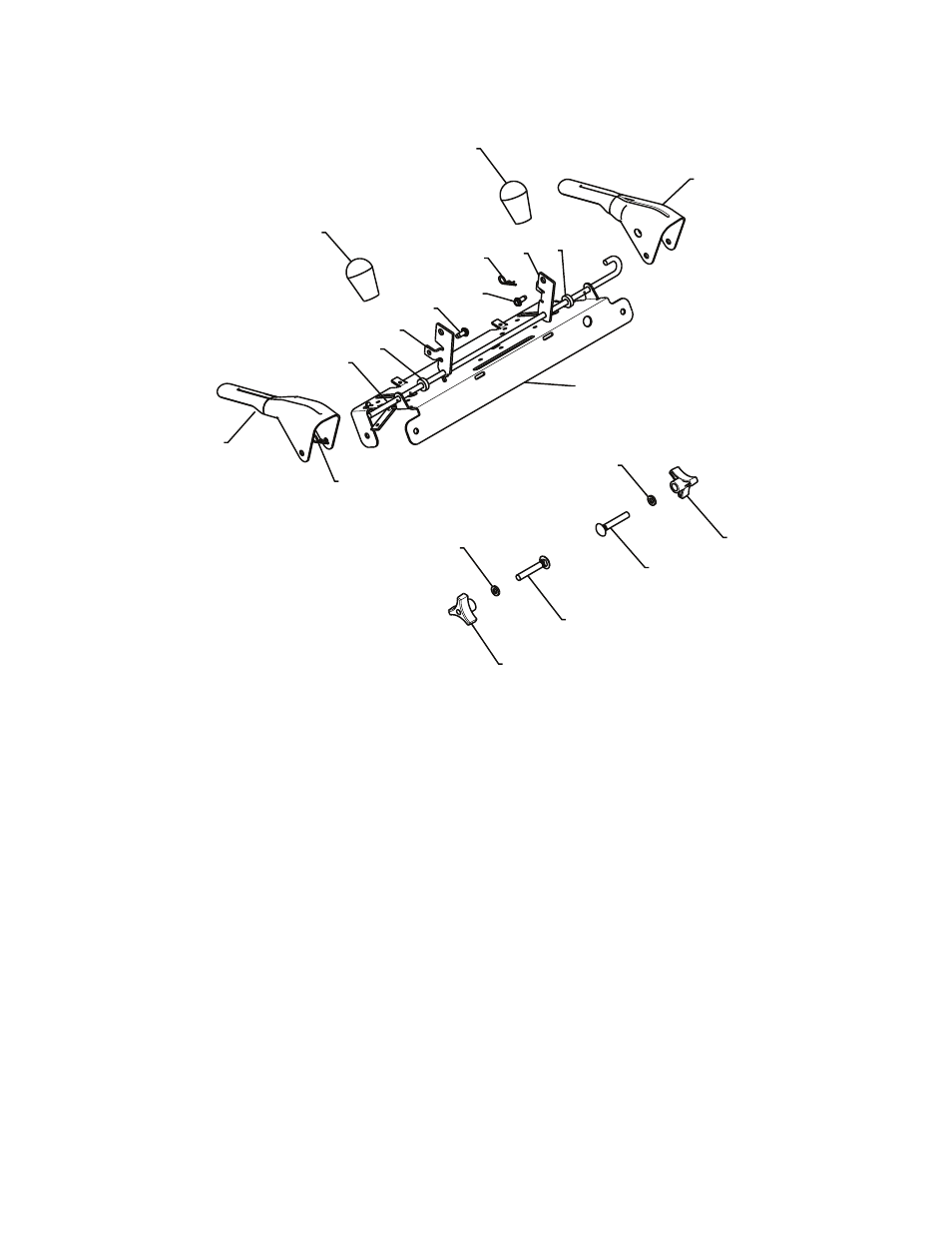

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC12527ES (96192004800)
HANDLES
01.08.002-G
10
11
1
2
3
4
5
6
7
7
9
9
8
8
12
12
13
13
14
14
1 532 41 55-39 CONTROL PANEL
2 532 42 88-59 CONTROL LEVER LH
3 532 42 88-60 CONTROL LEVER RH
4 532 41 55-46 TRACTION ROD ARM
5 532 42 90-98 IMPELLER ROD ARM
6 532 41 26-77 INTERLOCK BAIL
7 532 42 16-13 SPACER
8 532 16 96-75 RETAINER
9 817 06 04-10 SCREW 1/4-20 X .62
10 532 41 42-80 KNOB BLACK
11 532 41 42-81 KNOB RED
12 532 17 88-99 HANDLE KNOB
13 819 13 13-16 WASHER 3/8
14 872 12 06-18 CARRIAGE BOLT 3/8-16 X 2.25
