McCulloch MC12527ES - Manual (Page 29)

29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION

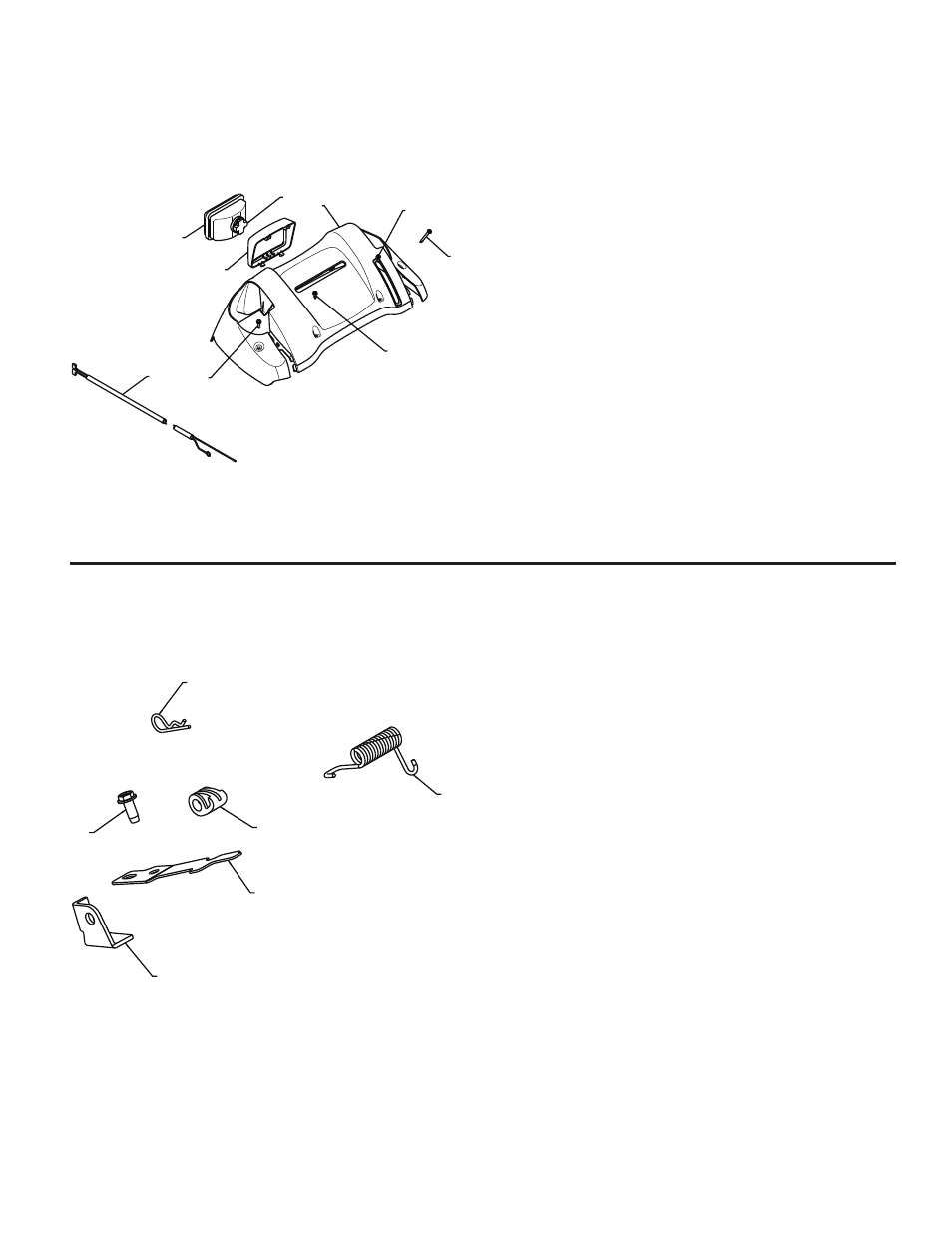

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC12527ES (96192004800)
HANDLES
1
2
3
4
5
6 01.08.007-B
1 532 41 62-88 INTERLOCK SPRING
2 532 41 45-72 INTERLOCK CAM
3 532 17 88-31 TORSION SPRING
4 532 16 96-75 RETAINER
5 817 06 04-10 SCREW 1/4−20 X .625
6 532 42 18-14 INTERLOCK STOP
KEY PART
NO. NO. DESCRIPTION
1
4
4
5
5
2
3
7
6
01.10.003-B
1 532 18 33-46 CONSOLE PANEL
2 532 17 86-68 HEADLIGHT BEZEL
3 532 18 09-27 FLOOD HEADLIGHT
4 532 18 44-71 SCREW 10−24 X .625
5 532 17 52-62 SCREW 10−24 X 1.25
6 532 17 87-70 WIRE HARNESS
7 532 18 37-84 BULB
