33
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
- - 532 43 62-63 COMPLETE LCT ENGINE
PW2HK19850781DE
1 532 42 92-75 FRAME
2 532 15 04-06 BOLT 3/8-16
3 532 42 88-67 SCREW 5/16-18 X .750

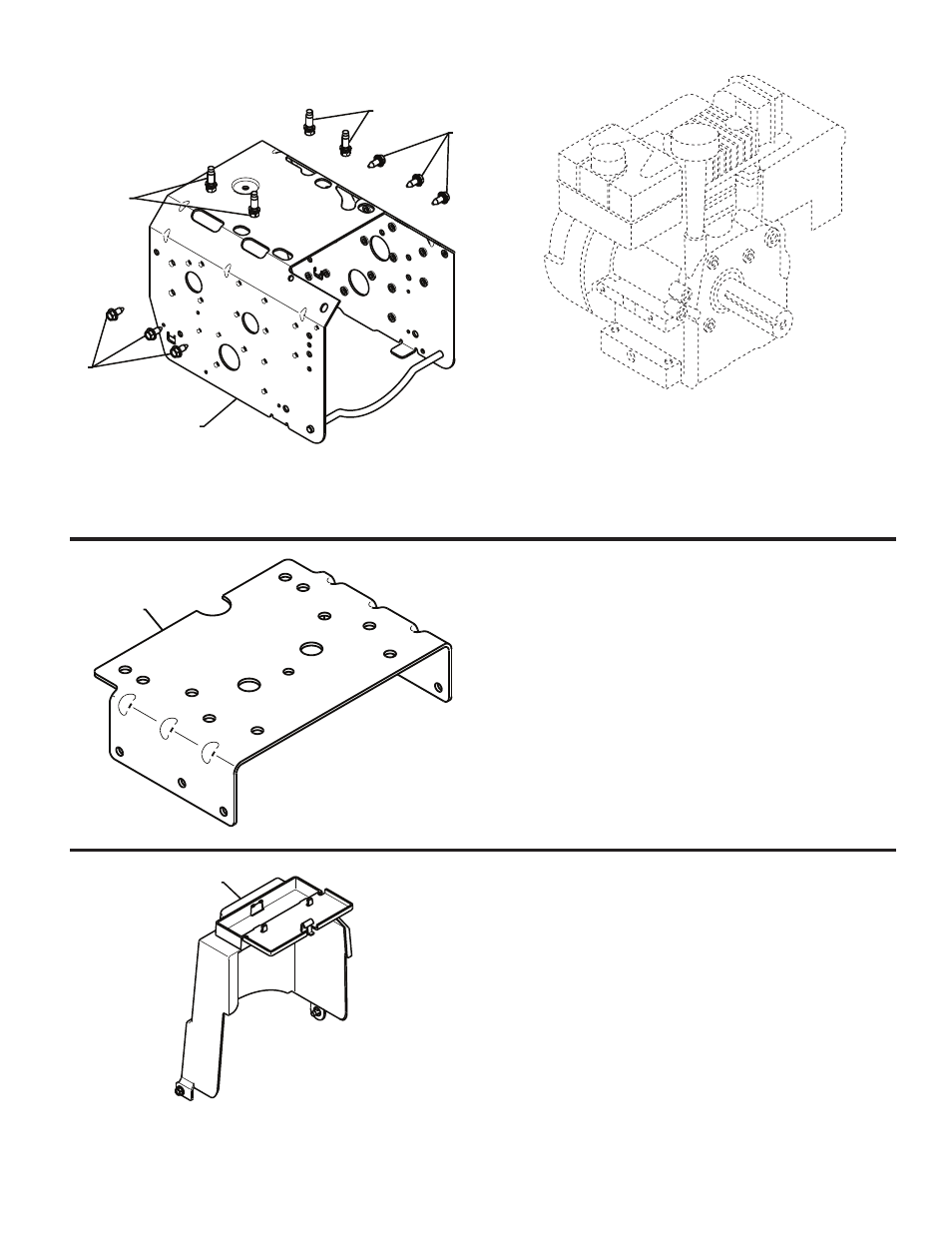

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC12527ES (96192004800)
CHASSIS / ENGINE / PULLEYS
1
2
2
3
3
01.00.034-A
1
01.01.004-A
1 532 42 92-69 ENGINE MOUNTING PLATE
01.21.014-C
1
1 532 42 86-85 COVER ASSEMBLY
