28
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION

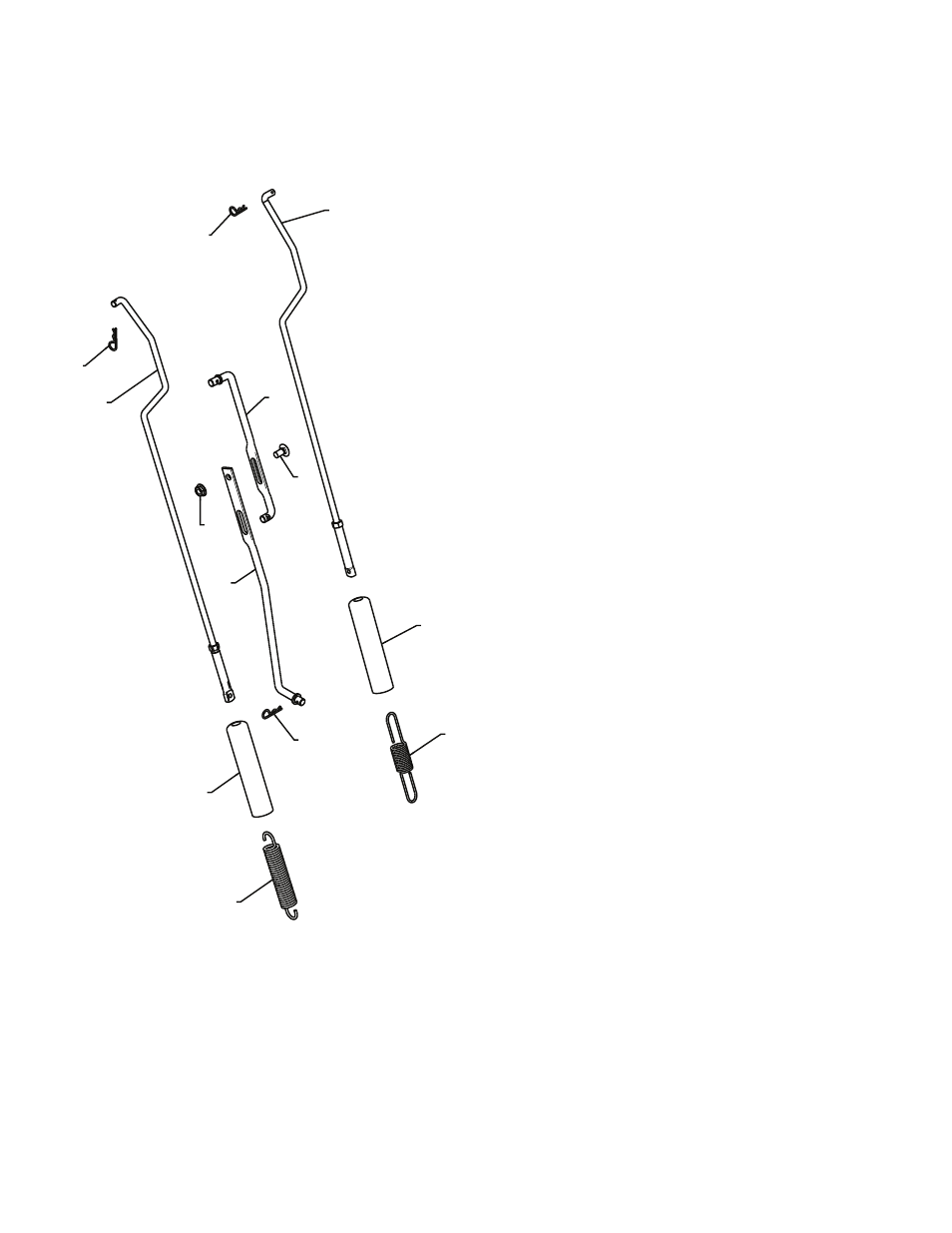

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC12527ES (96192004800)
HANDLES
10
10
10
1
2
3
4
5
5
6
7
9
8
01.12.001-E
1 532 18 04-80 IMPELLER ROD
2 532 40 57-40 TRACTION ROD
3 532 18 04-45 SHIFTER ROD TOP
4 532 18 77-16 SHIFTER ROD BOTTOM
5 532 18 04-47 SPRING SLEEVE
6 532 17 86-69 IMPELLER SPRING
7 532 18 09-26 TRACTION SPRING
8 872 27 05-05 CARRIAGE BOLT 5/16-18 X .625
9 532 15 53-77 NUT 5/16-18
10 532 16 96-75 RETAINER
