NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION

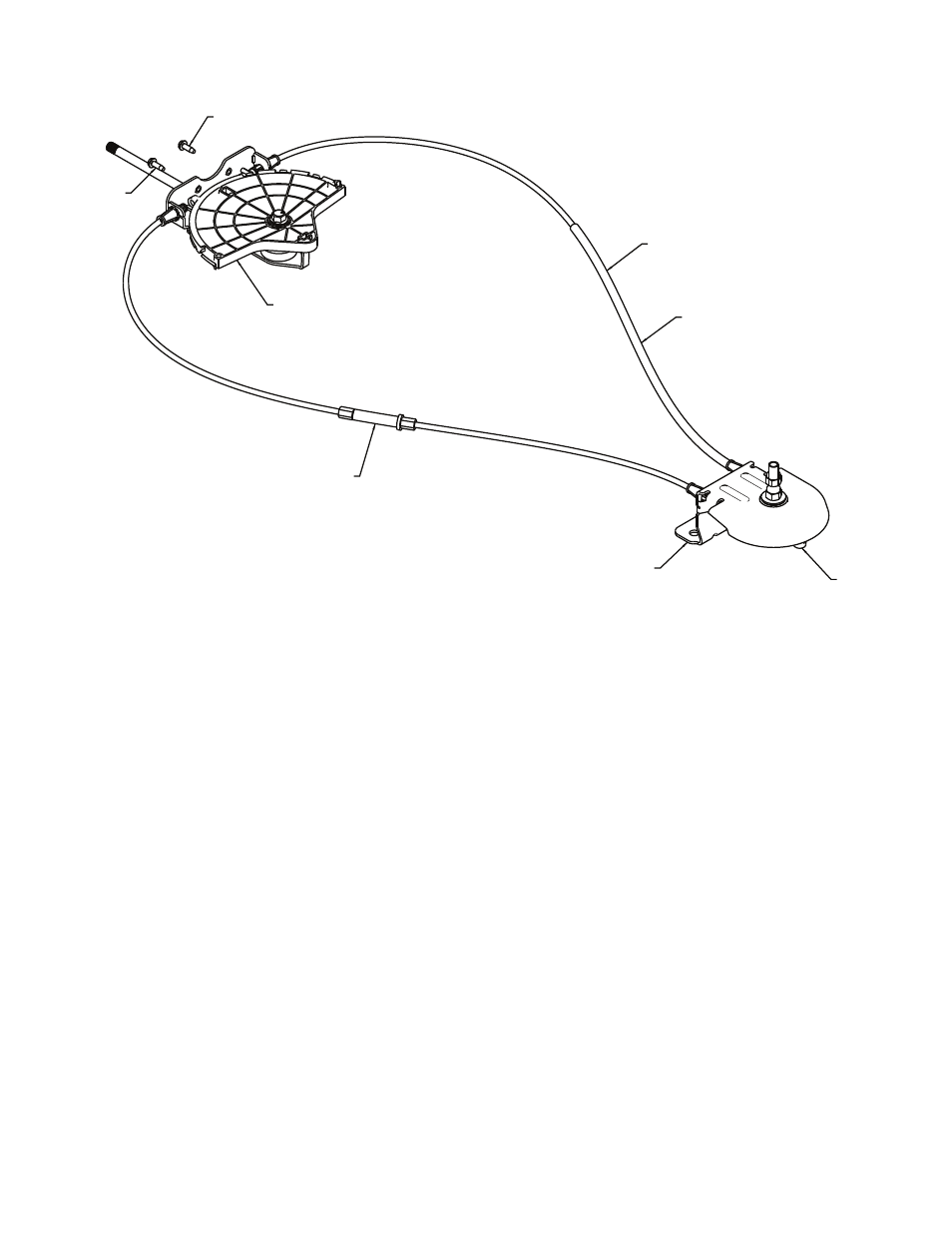

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC12527ES (96192004800)
CONTROL PANEL / CHUTE
1
2
2
*3
*4
*5
*6
*7
01.09.010-B
1 532 42 82-72 LEVER/CABLE ROTATOR ASSEMBLY
2 817 50 10-10 SCREW 10-24 X .625
*3 532 42 06-78 ROTATOR HEAD
*4 532 40 59-32 ROTATOR PIVOT BRACKET
*5 532 42 06-75 PULLEY PIVOT
*6 532 42 82-73 CABLE ASSEMBLY ADJUSTABLE
*7 532 42 83-10 CABLE ASSEMBLY HEAT SHIELD
NOTES:
1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.
