15.1

15

Installing accessories

Your machine is a full-featured

MFP that has been optimized to meet most

of your printing needs. Recognizing that each user may have different
requirements, however,

Muratec makes several accessories available

to enhance your machine’s capabilities.

This chapter includes:

Precautions when installing accessories

Installing a memory DIMM

Precautions when installing accessories

Disconnect the power cord

Never remove the control board cover while the power is being supplied.

To avoid the possibility of an electrical shock, always disconnect the
power cord when installing or removing ANY internal or external
accessories.

Discharge static electricity

The control board and internal accessories (network interface card or
memory DIMM) are sensitive to static electricity. Before installing or
removing an internal accessories, discharge static electricity from your
body by touching something metal, such as the metal back plate on any
device plugged into a grounded power source. If you walk round before
finishing installation, discharge any static electricity once again.

Installing a memory DIMM

Your machine has a dual in-line memory module (DIMM) slot. Use this
DIMM slot to install additional memory.

The

MFX-3050 has 96 MB of standard memory.

It can be expanded to 320 MB.

Users must remove the preinstalled memory DIMM before upgrading the
memory.

Contact your authorized Muratec dealer to order additional memory.

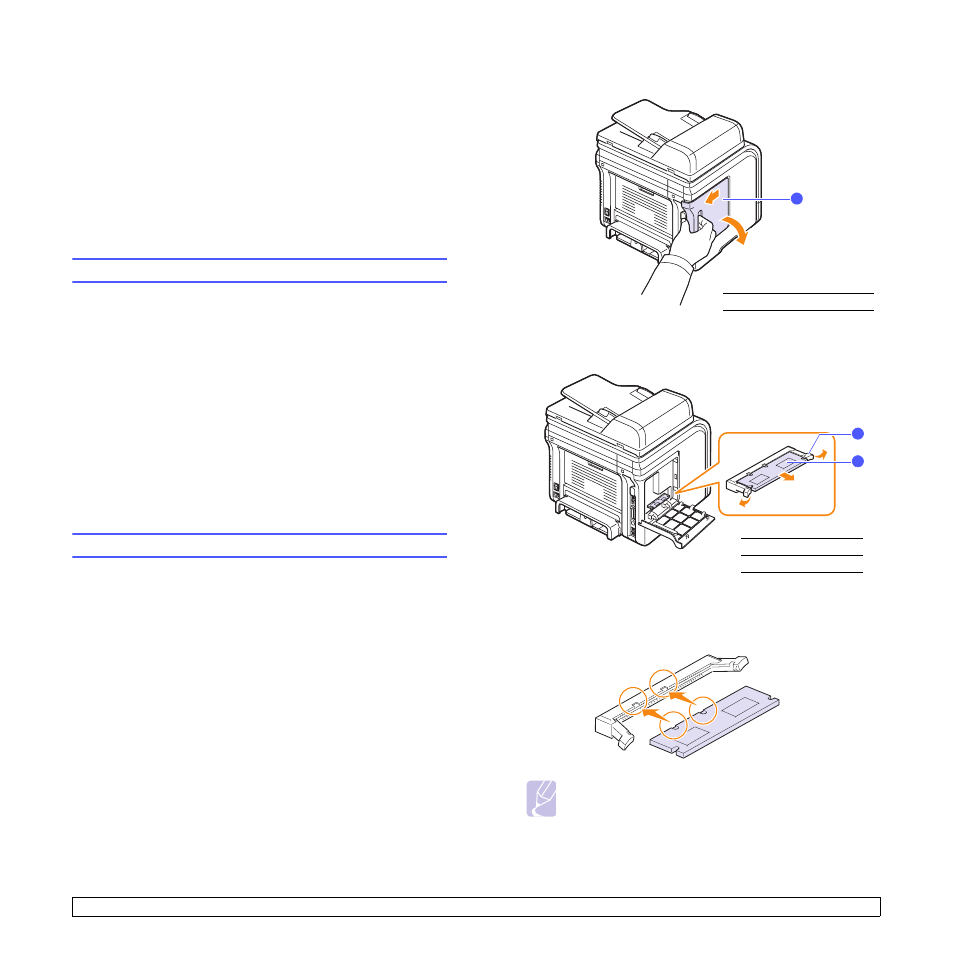

1

Turn the machine off and unplug all cables from the machine.

2

Grasp the control board cover and slide toward you to open it.

3 Completely open the latch on each side of the DIMM slot.

Remove the preinstalled memory DIMM.

4

Take out a new memory DIMM from the plastic bag.

5

Holding the memory DIMM by the edges, align the notches on the
memory DIMM with the grooves on the memory DIMM slot.

Note

The notches and grooves illustrated above may not match
those on an actual DIMM and the slot.

1

control board cover

1

1

latch

2

memory DIMM

1

2
