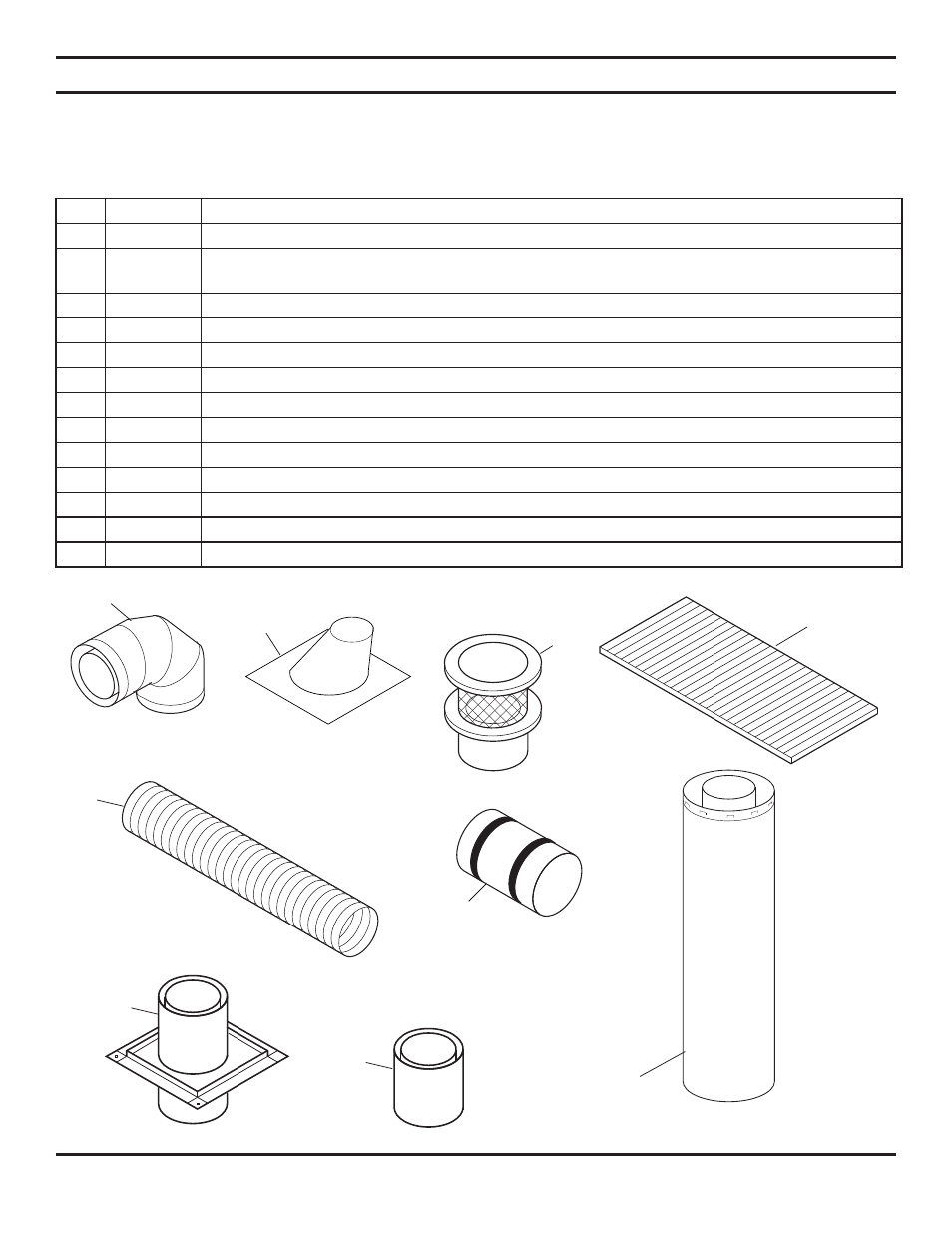

Item Part No. Description
1 SE30 Elbow offset/return package containing two 8" diameter 30° elbows
2 612 0 to 6/12 variable pitch roof flashing for contemporary installation; one 612 flashing
required with SC round chimney cap on 0 to 6/12 pitch roof
3 SC Round chimney cap for contemporary installation; includes storm collar
4 H1652 16"x52" hearth extension for protecting floor against sparks and radiant heat
4 H2066 20"x66" hearth extension for protecting floor against sparks and radiant heat
5 FP6U 6" diameter x 8' long flexible uninsulated combustion air duct (Use with AK6 kit)
6 603 6" duct connector for splicing FP6U ducts; includes one connector and two clamps
7 S48 48" long x 8" diameter chimney flue section
7 S36 36" long x 8" diameter chimney flue section
7 S18 18" long x 8" diameter chimney flue section
7 S12 12" long x 8" diameter chimney flue section
8 SVTR Thimble to pass chimney through 14 1/2" x 14 1/2" ceiling opening. Swivels 0° to 15°
9 SVTE Thimble extension for use with SVTR thimble as needed
REPLACEMENT PARTS ARE AVAILABLE THROUGH YOUR RETAILER
