26 61D0087
C
B A
REINSTALLING GLASS DOOR
1. Insert the doorʼs bottom pivot pin into the appropriate pivot bushing located in the bottom panel of the fireplace. See
Figure 30.
2. With the door assembly folded together, gently maneuver the door assemblyʼs upper pivot pin into the hole in the adjust-
able spring clip located in the top track for the glass doors.
3. Once the bi-fold doors are installed, check to see if dimensions A and B are equal. See Figure 30. If dimensions A and
B are within 1 /
16
" of being equal, you may only need to adjust the spring clips to make dimensions A and B equal. If
dimensions A and B are more than 1 /
16
" apart, place one or two spacer washers under a doorʼs pivot pin. See Figure 30
Use a nylon retainer washer to hold the spacer washers on the pivot pin as shown.
Note: Normally, washers will only be needed when a misalignment condition exists as a result of a
combination of tolerances ranging from glass size variations, fireplace opening variations, and/or
units which are not framed in exactly square. If washers are ever needed, buy them from your
fireplace dealer. Request spacer washer 037681 and retainer washer 046397 in the quantities
needed.
Only measure dimensions A and B when the door center spacing (dimension C) is an equal dimension from top to bottom
between the two doors. To get equal dimensions, adjust top spring clips by loosening and tightening screws. The unit also
has two (2) adjustable flat clips located where the door bottom pivot is inserted. See Figure 27, page 24. Only adjust flat
bottom clips if more adjustment is necessary.

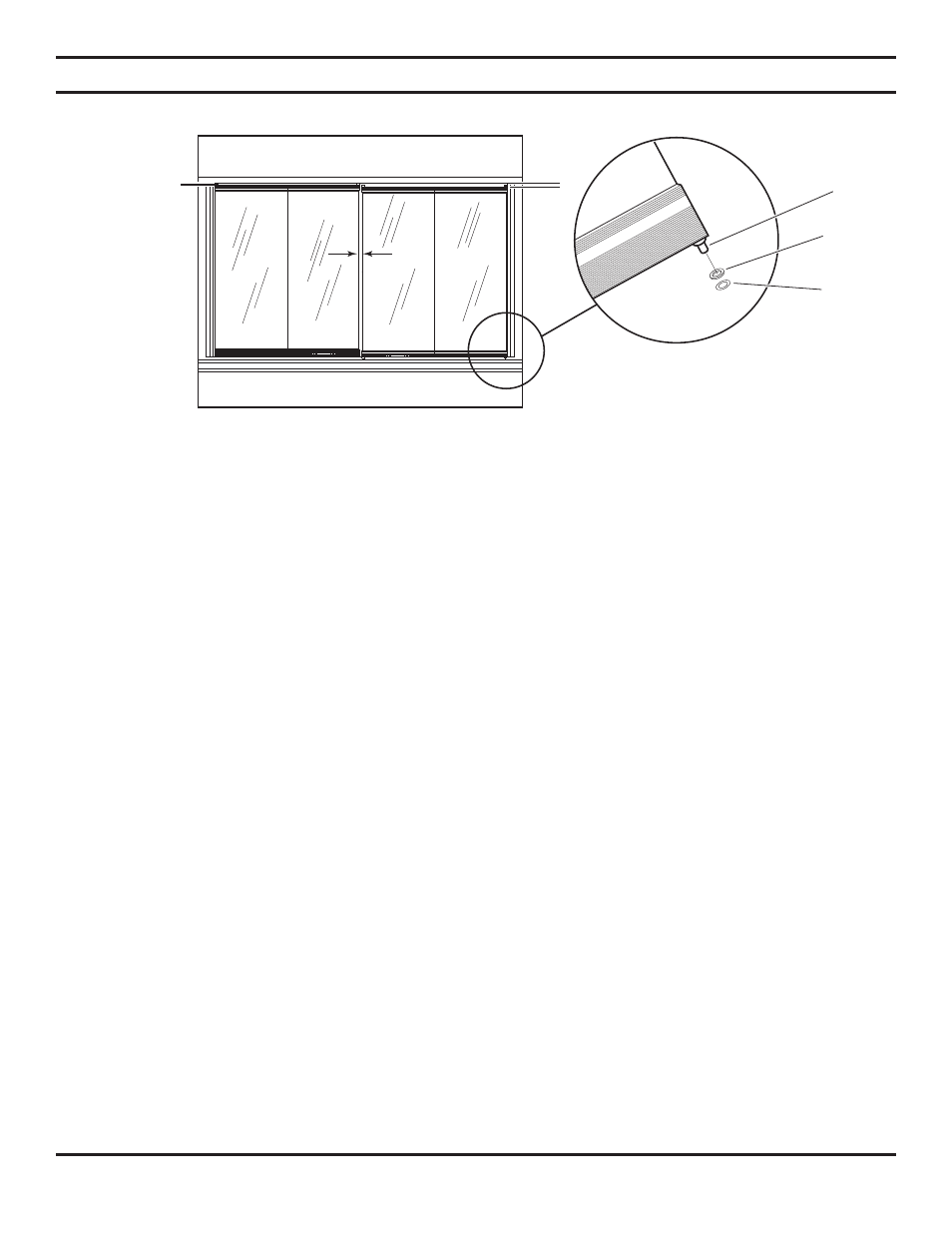

Figure 30 - Inserting Bottom Pivot Pin into Pivot Bushing
GLASS DOOR INSTALLATION
Door Pivot
Pin
Space
Washer
Nylon
Retainer
Washer
