PAGE 28 — DCA-15SPX3 GENERATOR— PARTS & OPERATION MANUAL — REV. #2 (09/03/01)
When using plural single phase
voltages, make sure to balance
the load on each of the single
phase legs.
NOTE
120V Hard Wire Hookup
The output terminal panel, when suppling single phase 120
volts, will provide two circuits available at 62.5 amps with
any two wires plus the ground. (See Figure 10 below.)
240V Hard Wire Hookup
The output terminal panel, when suppling single phase 240
volts, will provide one circuit available at 62.5 amps with
two wires plus the ground. (See Figure 11 below.)

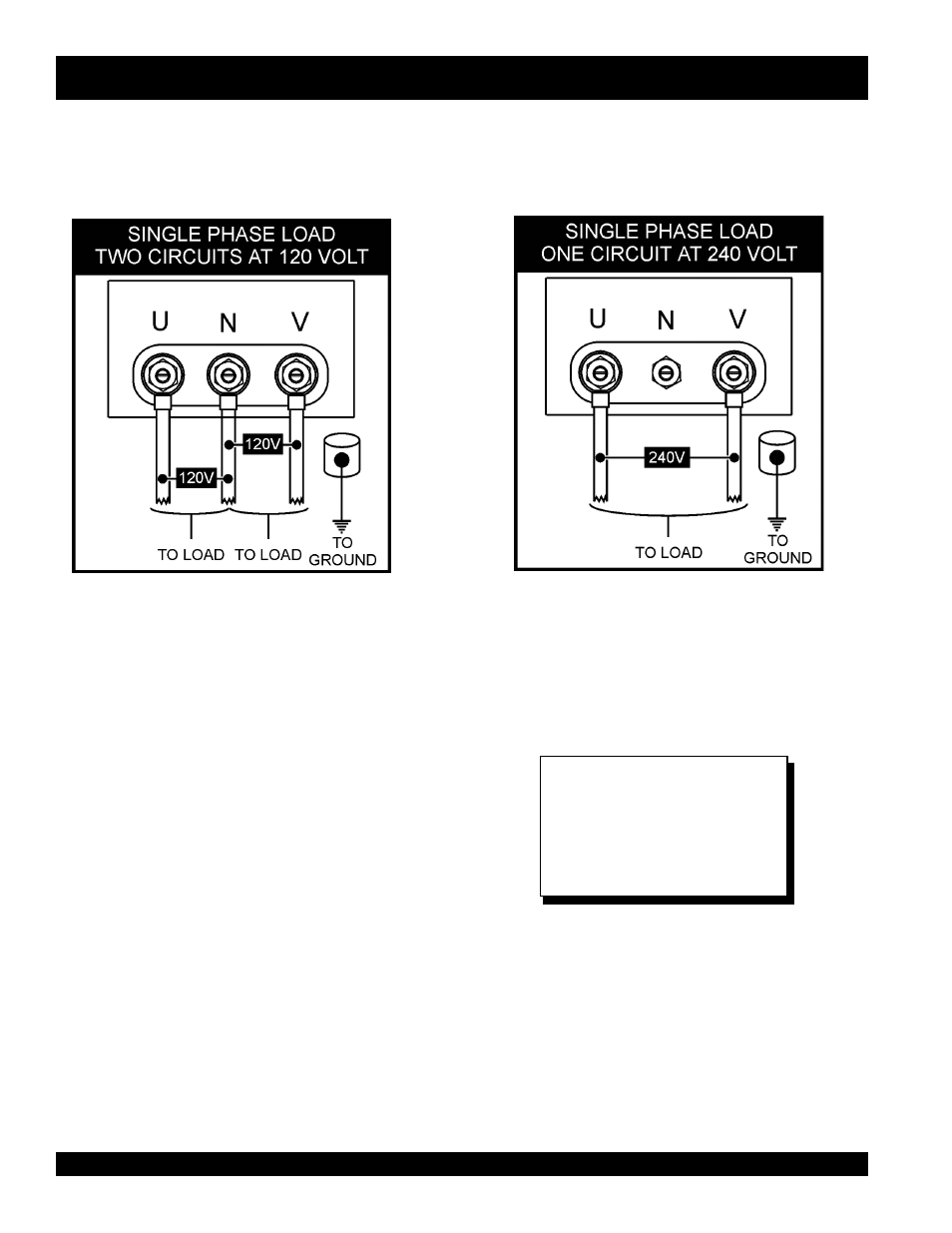

Figure 10. Hard Wire Hookup
for 120 Volt
Figure 11. Hard Wire Hookup
for 240 Volt
DCA-15SPX3 — OUTPUT TERMINAL INFORMATION
