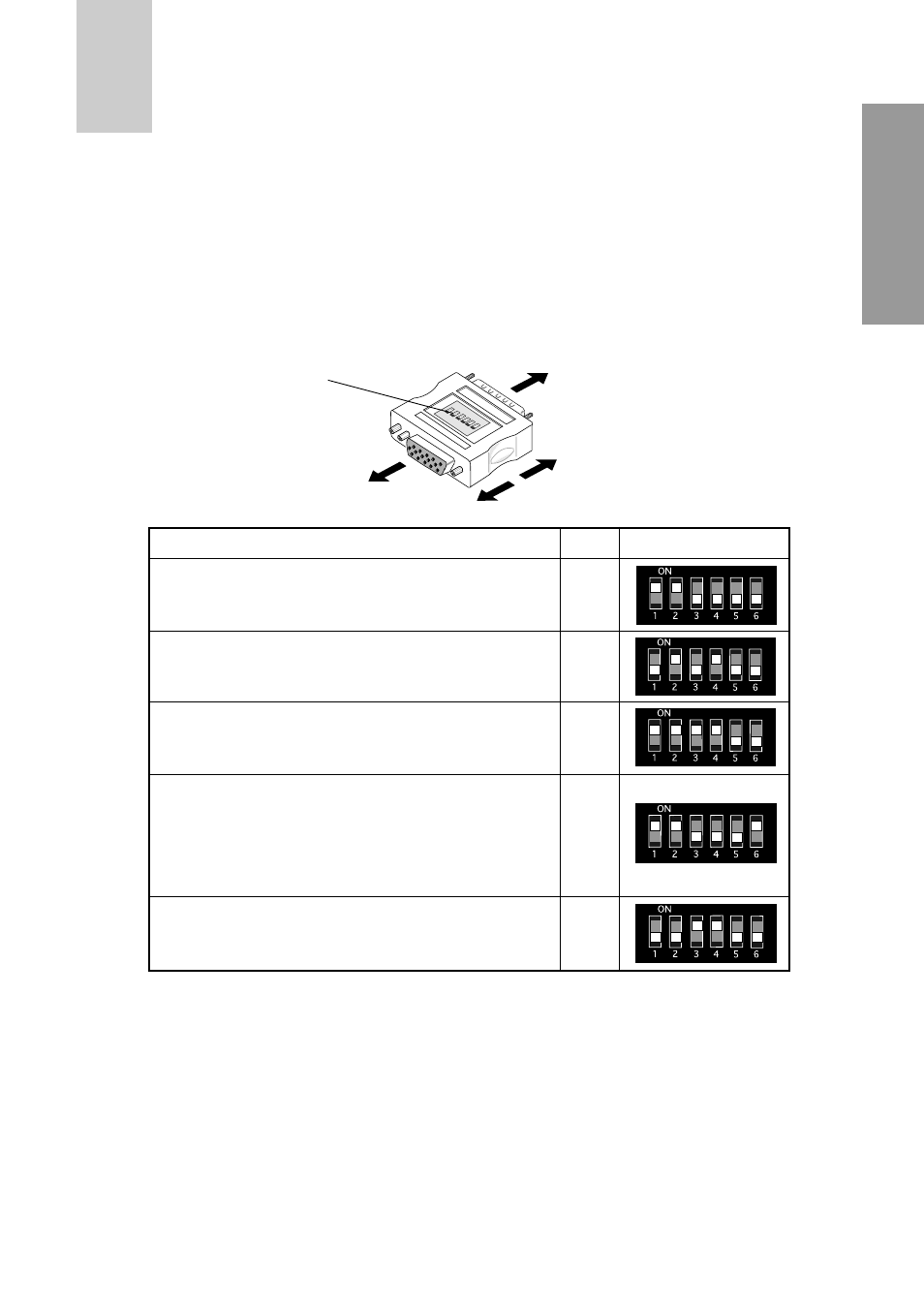

7.3 Macintosh Adapter AD-A205 settings
The AD-A205 Macintosh Adapter allows you to take an advantage of the built in video capabilities of
your Macintosh computer with the monitor.
(1) Set the dip switches of the adapter, before connect to the computer.
(2) Set the dip switches according to the following chart.
By using the following chart, you can choose a main resolution, quickly.
If you wish to operate by other resolution, refer to next page; “AD-A205 Mac Adapter setting chart”
Apple Macintosh
Switch
ON
Switch Setting
2,4
Macintosh IIsi, IIci, IIvi, IIvx, LC, LC II
Macintosh LC III, LC475, LC630
1,2
Macintosh Quadra 610, 650, 700, 800, 840AV, 900, 950
Macintosh Centris 610, 650, 660AV
Power Macintosh 4400, G3
Performa 6260, 6310, 6410, 6420
Power Macintosh 6100, 6100AV, 6200, 6300
Power Macintosh 7100AV, 7200, 7300, 7500, 7600
Power Macintosh 8100, 8100AV, 8500, 8600
Power Macintosh 9500, 9600
Workgroup Server 7350, 8150, 9150, 9650
1,2,3,4
1,2,6
3,4
(3) “AD-A205 Mac Adapter setting chart” shows all available modes for Macintosh systems and all
possible combinations with the monitor.
However, we recommend you to use the monitor with a preset timing. (See 1.2 Internal Preset
Memory Capability)
(4) Please refer to the instruction book of your computer about the resolution setting.
Resolution may not be changed on some computers.
1. The resolution does not change with the computer powered on when you set the dip switches.
Be sure to power off the computer when you set the dip switches.
2. Set the dip switches by a pointed article like a pencil or ball paint pen to touch end of the switch
groove.
ON ON
1 2 3
4 5 6
AD-A205
ON
OFF
MIT
SU
BIS
HI
Macintosh
Display monitor
Dip Switches
