- 1-11 -
ENGLISH
ENTER BNC / D-SUB SCROLL
2
2
PART NAME
2.1 Control Names

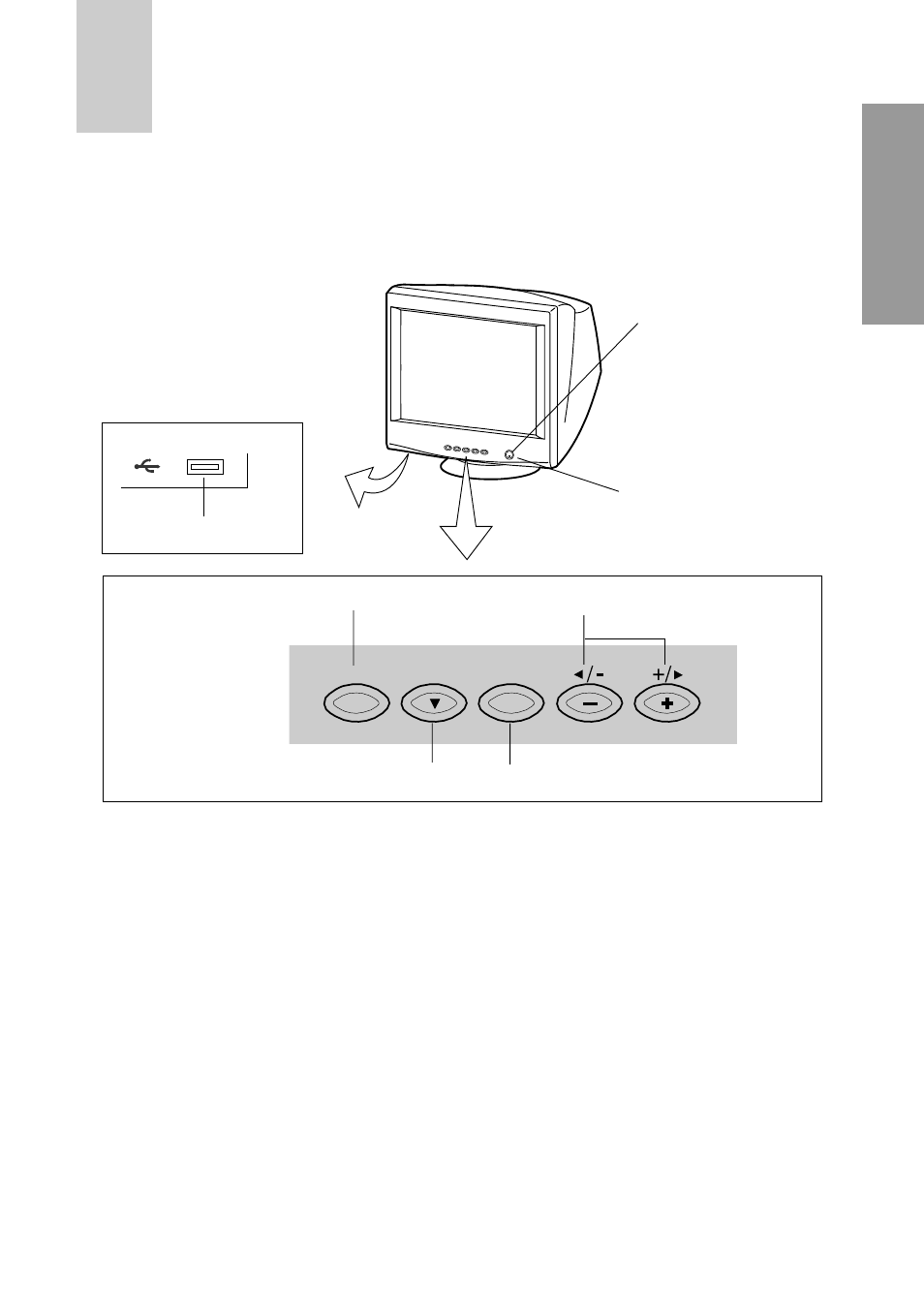

See Figures 3 and 4 for the location of the user controls, indicator and connectors.
Each part is identified by number and is described individually.
1. POWER SWITCH
2. POWER-ON INDICATOR
3. INPUT CONNECTOR SELECT BUTTON 6. FUNCTION ADJUST BUTTONS
4. SCROLL BUTTON 5. ENTER BUTTON
2.2 Function
1. POWER SWITCH: A push-on / push-off switch for AC power.
2. POWER-ON INDICATOR: This indicator illuminates at green when AC power is on, and
illuminates at amber when the monitor is in the power management modes.
3. INPUT CONNECTOR SELECT BUTTON: Push to select the signal input connector, BNC or D-
SUB.
4. SCROLL BUTTON: Push to select group icon.
5. ENTER BOTTON: Push to fix / unfix the item icon.
6. FUNCTION ADJUST BUTTONS: Push the adjust buttons to select item icon and to adjust the
item selected.
7. DOWNSTREAM PORT: To connect USB camera, keyboard, mouse, etc.
7. DOWNSTREAM PORT
Figure 3
