18
DVD Player/Video Game with
Component Video
(Figure 9)
1. Connect the Component Video cables from
(Y Cb Cr or Y Pb Pr) VIDEO OUT on the back of
the DVD player to COMPONENT (1 or 2) on
the TV side panel. The correct connections are:
A. Y to Y
B. Cb or Pb to Pb
C. Cr or Pr to Pr
2. Connect a set of audio cables from AUDIO OUT
on the back of the DVD player to COMPONENT
AUDIO Input (1 or 2) on the TV side panel.
• The red cable connects to the R (right)channel
• The white cable connects to the L (left) channel
NOTE: Some video game systems support component
connections. Please refer to your video game
console Owner’s Guide.
NOTE: If your DVD player supports progressive
scan playback, be sure to set your player
accordingly. Please refer to your DVD player’s
Owner’s Guide.
Other S-Video Device
(Figure 10)
1. Connect an S-Video cable from VIDEO OUT
on the device back panel to VIDEO INPUT-1 or
INPUT-2 on the TV side panel.
2. Connect a set of audio cables from AUDIO OUT
on the device back panel to AUDIO INPUT-1 or
INPUT-2 on the TV side panel.
• The red cable connects to the R (right) channel
• The white cable connects to the L (left) channel
If your S-Video Device is mono (non-stereo), connect
only the white (left) cable.
See Appendix B, page 58, for component video
signal compatibility information.
For digital audio connections, see your DVD
and A/V receiver Owner’s Guides.

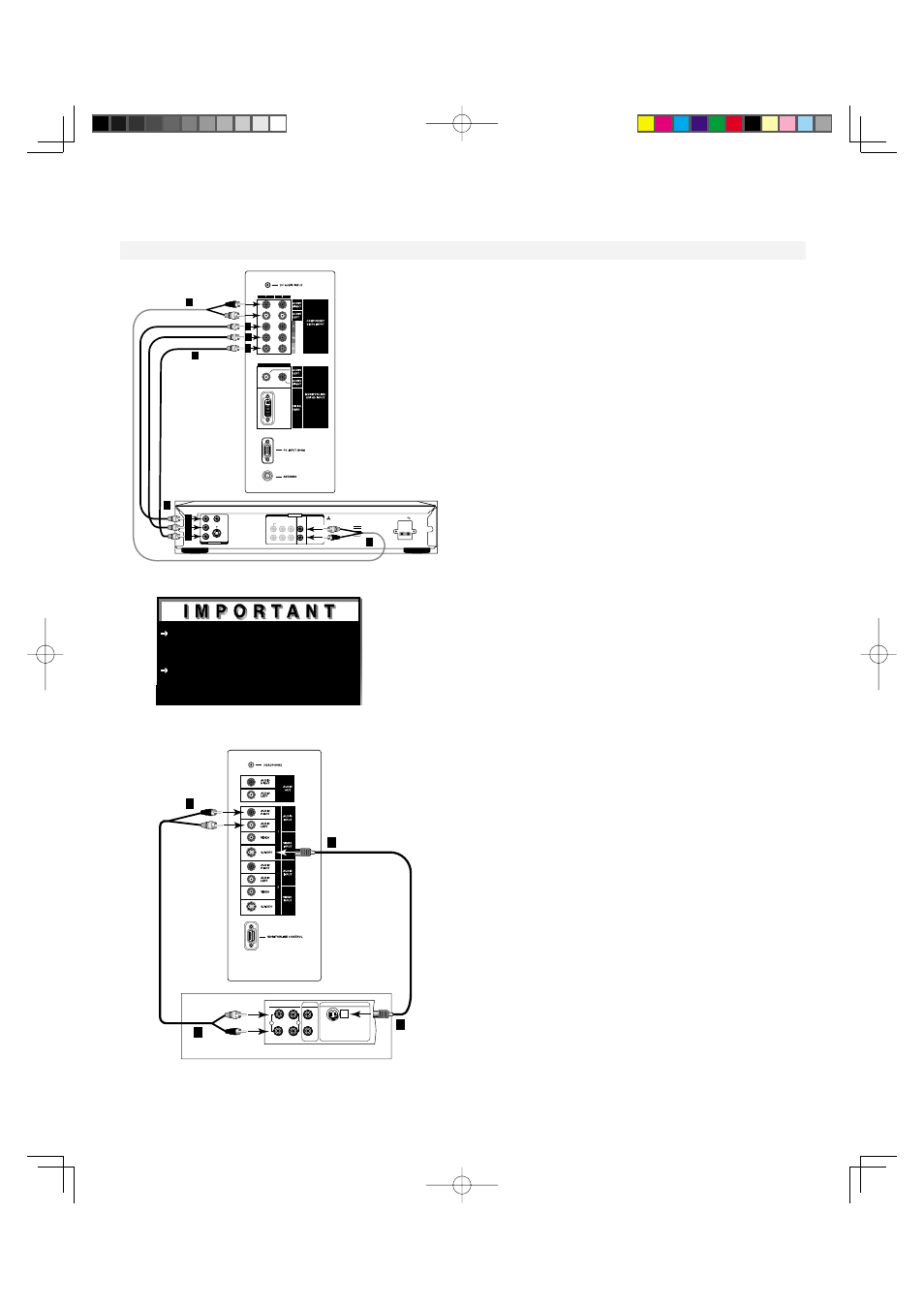

Figure 9. Connecting a DVD Player with Component Video.
Figure 10. Connecting an S-Video Device.
Connecting a DVD Player or Other S-Video Device
Note: The TV side panel and connections shown here are for reference only and may vary by model.
VIDEO
S
Y
C B
C R
VIDE O OUT
BITSTREAM/PCM 5.1 CH SURROUND 2CH
L
R
CENTER
SUBWOOFER SURROUND FRONT COAXIAL OPTICAL
AUDIO OUT AC IN MITS UB IS HI DVD PLAYER MODEL DD-5000
POWER SUPPLY 120V~ 60Hz POWER CONSUMPTION 20W
MITSUBISHI DIGITAL ELECTRONICS DISTRIBUTED BY
9351 JERONIMO ROAD
IRVINE, CA 92618
MADE IN JAP AN AMERICA, INC.
SERIAL NO. MANUF ACTURED
2 Red
DVD back panel
TV side panel - right
A
2
B
C
1
1
White
A
B
C
Red
White
(Y/C) L
R
L
R
1 2
VIDEO OUT AUDIO OUT AUDIO IN
Any S-Video Device
White
Red
White
Red
TV side panel - left
2
2
1
1
