35
ENGLISH
HDMI
MULTI
SPEAKER
DIGITAL R L VIDEO S-VIDEO AUX 1 INPUT AUDIO
SETUP SIMPLE MULTI PURE
T-MODE
SURROUND MEMORY DISPLAY ATT MUTE STANDBY
INPUT SELECTOR VOLUME
UP DOWN
AV SURROUND RECEIVER SR5002
DIRECT
AUTO HT-EQ EXIT MENU
MODE
BAND
CLEAR ENTER PHONES SETUP MIC POWER ON/STANDBY
VIDEO
S-VIDEO
HDMI
component
MULTI
SPEAKER
DIGITAL R L VIDEO S-VIDEO AUX 1 INPUT AUDIO
SETUP SIMPLE MULTI PURE
T-MODE
SURROUND MEMORY DISPLAY ATT MUTE STANDBY
INPUT SELECTOR VOLUME
UP DOWN
AV SURROUND RECEIVER SR5002
DIRECT
AUTO HT-EQ EXIT MENU
MODE
BAND
CLEAR ENTER PHONES SETUP MIC POWER ON/STANDBY
VIDEO
S-VIDEO HDMI
component
Notes of OSD menu:
HDMI: OSD menu is not displayed.
VIDEO/S-VIDEO/component: VIDEO CONVERT
of HDMI is not possible, thus the OSD menu is not
displayed.
VIDEO CONVERT
When this function is activated, the video or
S-video signal can be emitted from the video, S-video
or component video output terminal.
To activate this function, select VIDEO CONVERT in
PREFERENCE menu and set ENABLE.
Notes:
• The component video signal is emitted only from
component video output terminal.
When the video equipment is connected by
component terminal, connect the monitor and
SR4002/SR5002 by the component terminal.
• This function is unavailable for the REC out
terminal.
• This function is unavailable for the still picture, fast
forward and reverse playing of the video component.
• If, while attempting to use the video convert feature,
the SR4002/SR5002 cannot synchronize with the
display device, “NO SIGNAL” appears on the
monitor, or noise is generated, this feature cannot
be used. All of these signs are caused by equipment
incompatibility; there is nothing wrong with the
SR4002/SR5002.
In such case, set VIDEO CONVERT in the
PREFERENCE menu to DISABLE. Also, connect
the video input signal to the display device via the
MONITOR OUT terminal under VIDEO and the
S-video input signal to the display device via the
MONITOR OUT terminal under S-VIDEO.

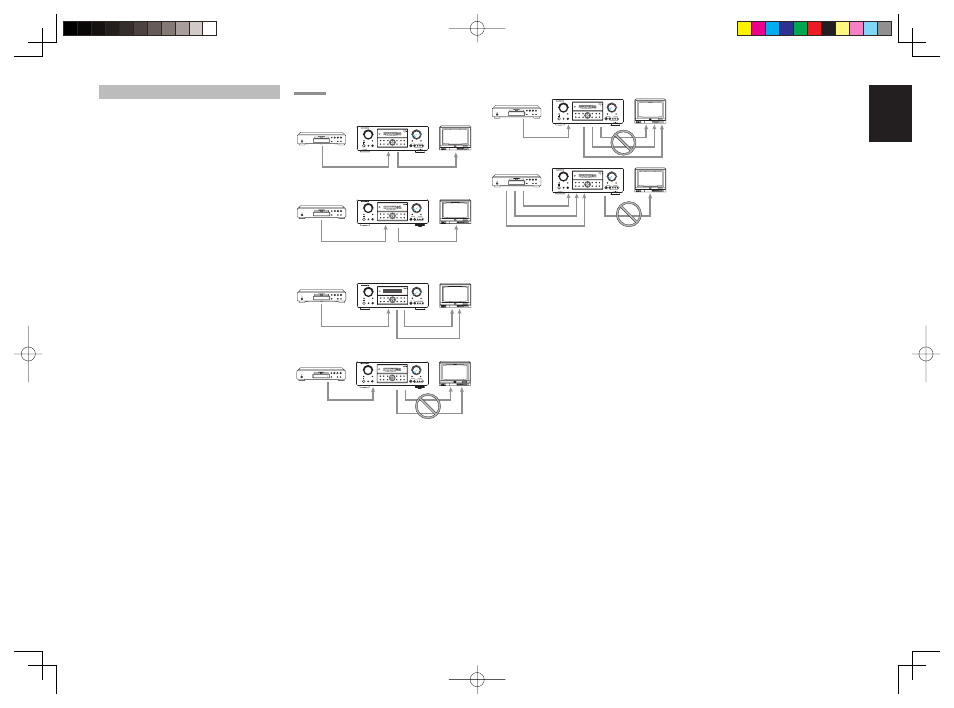

Example:
Monitor is connected with the component.
SR5002 only
MULTI
SPEAKER
DIGITAL R L VIDEO S-VIDEO AUX 1 INPUT AUDIO
SETUP SIMPLE MULTI PURE
T-MODE
SURROUND MEMORY DISPLAY ATT MUTE STANDBY PHONES POWER ON/STANDBY
INPUT SELECTOR VOLUME
UP DOWN
AV SURROUND RECEIVER SR5002
DIRECT
AUTO HT-EQ EXIT MENU
MODE
BAND
CLEAR ENTER SETUP MIC
VIDEO component
Monitor is connected with the video or S-video.
SR5002 only
MULTI
SPEAKER
DIGITAL R L VIDEO S-VIDEO AUX 1 INPUT AUDIO
SETUP SIMPLE MULTI PURE
T-MODE
SURROUND MEMORY DISPLAY ATT MUTE STANDBY
INPUT SELECTOR VOLUME
UP DOWN
AV SURROUND RECEIVER SR5002
DIRECT AUTO HT-EQ EXIT MENU MODE BAND CLEAR ENTER PHONES SETUP MIC POWER ON/STANDBY
VIDEO S-VIDEO
Monitor is connected with the video or component.
SR4002/SR5002
S.SPEAKER B
DIGITAL R L VIDEO S-VIDEO AUX 1 INPUT AUDIO
SETUP SIMPLE 7.1 CH INPUT PURE
T-MODE
SURROUND MEMORY DISPLAY ATT MUTE STANDBY
INPUT SELECTOR VOLUME
UP DOWN
AV SURROUND RECEIVER SR4002
DIRECT AUTO HT-EQ EXIT MENU MODE BAND CLEAR ENTER PHONES SETUP MIC POWER ON/STANDBY
S-VIDEO VIDEO
component
SR4002/SR5002
MULTI
SPEAKER
DIGITAL R L VIDEO S-VIDEO AUX 1 INPUT AUDIO
SETUP SIMPLE MULTI PURE T-MODE SURROUND MEMORY DISPLAY ATT MUTE STANDBY
INPUT SELECTOR VOLUME
UP DOWN
AV SURROUND RECEIVER SR5002
DIRECT AUTO HT-EQ EXIT MENU MODE BAND CLEAR ENTER PHONES SETUP MIC POWER ON/STANDBY
VIDEO
S-VIDEO component
The signal cannot be converted from the component
to the video or S-video.
Notes of OSD menu:
• The setup menu can be displayed through all video
out (COMPONENT, S-VIDEO, VIDEO).
• The setting informations (e.g. volume setting) are
displayed through all video out when the VIDEO
CONVERT function are set ON.
Note:
No setting information is displayed when the
signal is emitted from the COMPONENT IN to
COMPONENT OUT.
• The setting informations (e.g. volume setting) are
displayed through the S-VIDEO or VIDEO out
when the VIDEO CONVERT function are set
DISABLE. When the S-VIDEO and VIDEO outputs
are used simultaneously, the setting informations are
displayed through the S-VIDEO out only.
