Status trunk – Multi-Tech Systems MT5600BL-V.90 User Manual
Page 15
Chapter 3 - Using the Front Panel
15
Multi-Tech Systems, Inc. MT5600BA/BL Series User Guide (S000276E)
St
St
St
St
Sta
a
a
a
at
t
t
t
tus
us
us
us
us Tr
Tr
Tr
Tr
Trunk
unk
unk
unk
unk

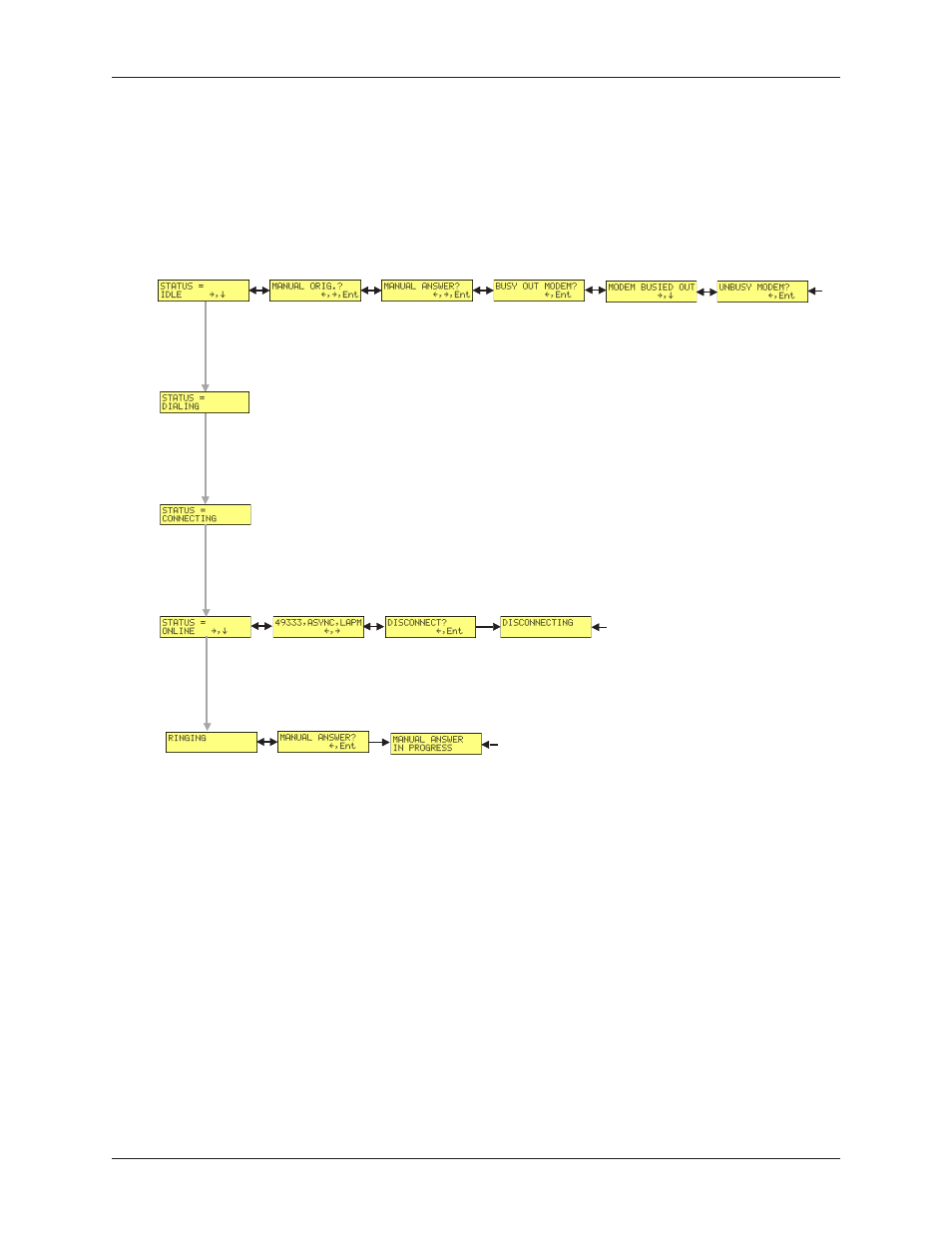

The Status Trunk shows the current operating status of the modem. Limb changes are automatic, but
certain options can be accessed by pressing the
Ж
Ж
Ж
Ж
Ж button. Note that when the modem is online, pressing
the
Ж
Ж
Ж
Ж
Ж button shows the connect status, including the data speed, connection type, and compression
type.
Limbs Twigs
If Idle
If
Online
