+ + 49 $

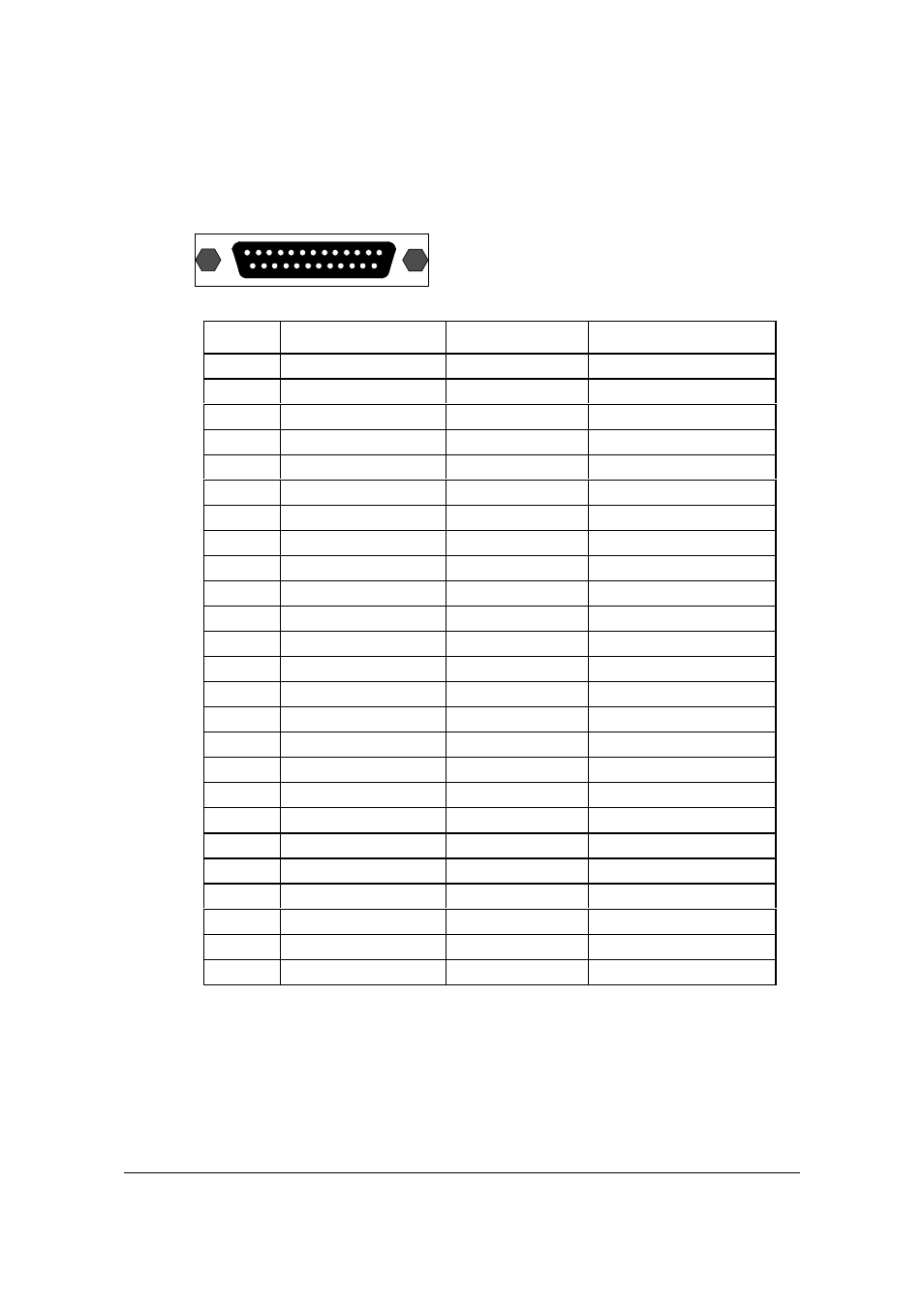

(Installation guide reference G)
1 13
14 25
$ ! $
1 STB# STB#
2 DATA0 DATA0 I/O
3 DATA1 DATA1 I/O
4 DATA2 DATA2 I/O
5 DATA3 DATA3 I/O
6 DATA4 DATA4 I/O
7 DATA5 DATA5 I/O
8 DATA6 DATA6 I/O
9 DATA7 DATA7 I/O
10 ACK# ACK# I
11 BUSY BUSY I
12 PE PE I
13 SLCT SLCT I
14 AFD# AFD# O
15 ERR# ERR# I
16 INIT# INIT# O
17 SLIN# SLIN# O
18 GND GND -
19 GND GND -
20 GND GND -
21 GND GND -
22 GND GND -
23 GND GND -
24 GND GND -
25 GND GND -
