12
CHAP. 3 Installation

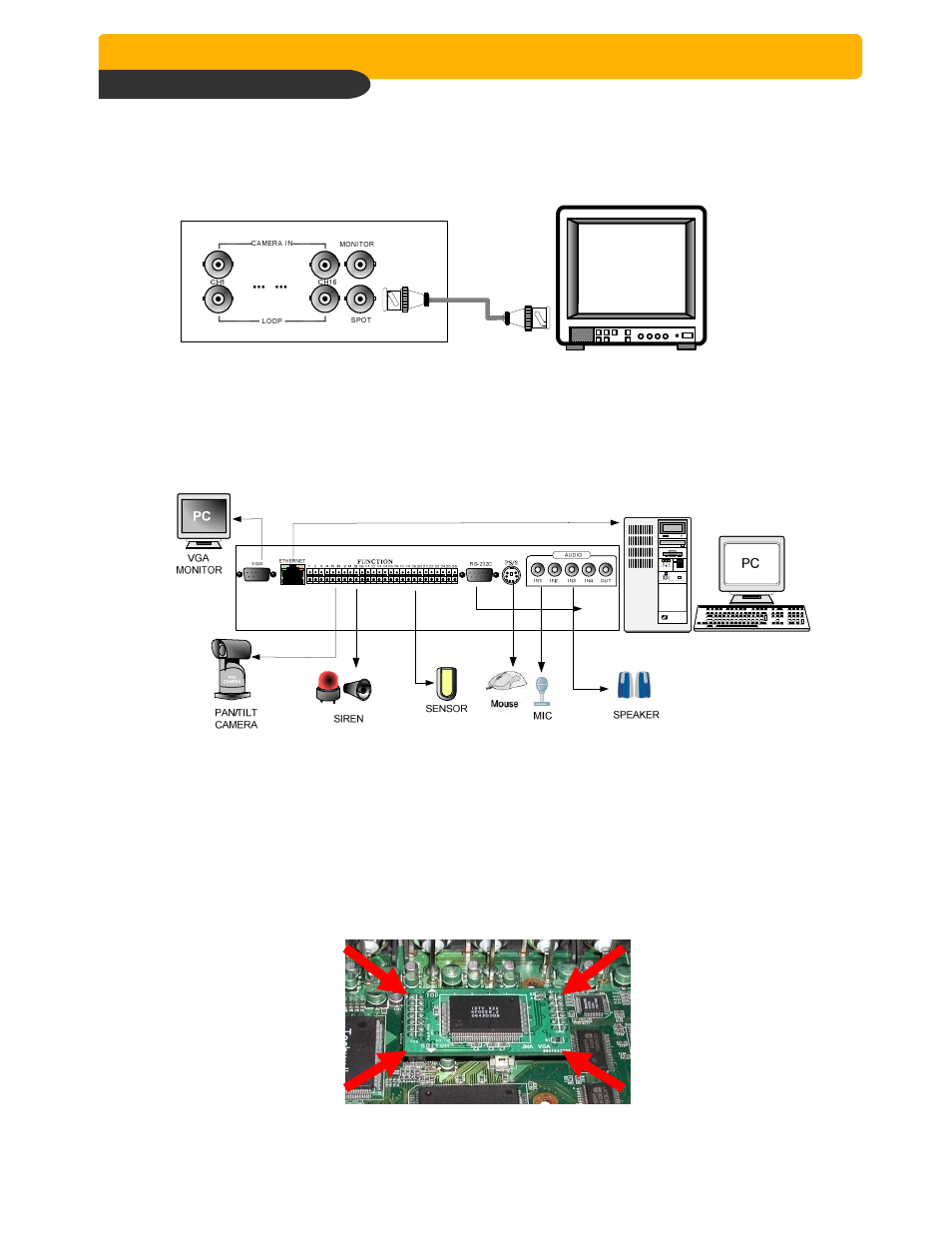

6) SPOT, VIDEO PRINTER
7) Other External Device
Connection with additional composite monitor
RS-232C : Control DVR through RS-232C port by using PC.
RS-485 : Control external device like PTZ Camera. (Pin No.1 & No.2 at Terminal Block).
RELAY Output : Relay Output. (Pin No.3 ~No.5 at Terminal Block)
SENSOR Input : SENSOR Input (Alarm connection) – (Pin No.6 ~ No.26 at Terminal Block)
ETHERNET : Connection to LAN, WAN, Internet.
VGA : Connection to a VGA monitor(CRT,TFT LCD) if optional VGA board is fixed
on the main board as shown in the following figure.
Resolution set by manufacturer is 800x600 60 Hz, and user can set resolution
in MONITOR SETUP / VGA SETUP / VGA RESOLUTION.
Audio Input : Microphone Input (IN1~IN4)
Audio Output : Speaker Output (OUT)
