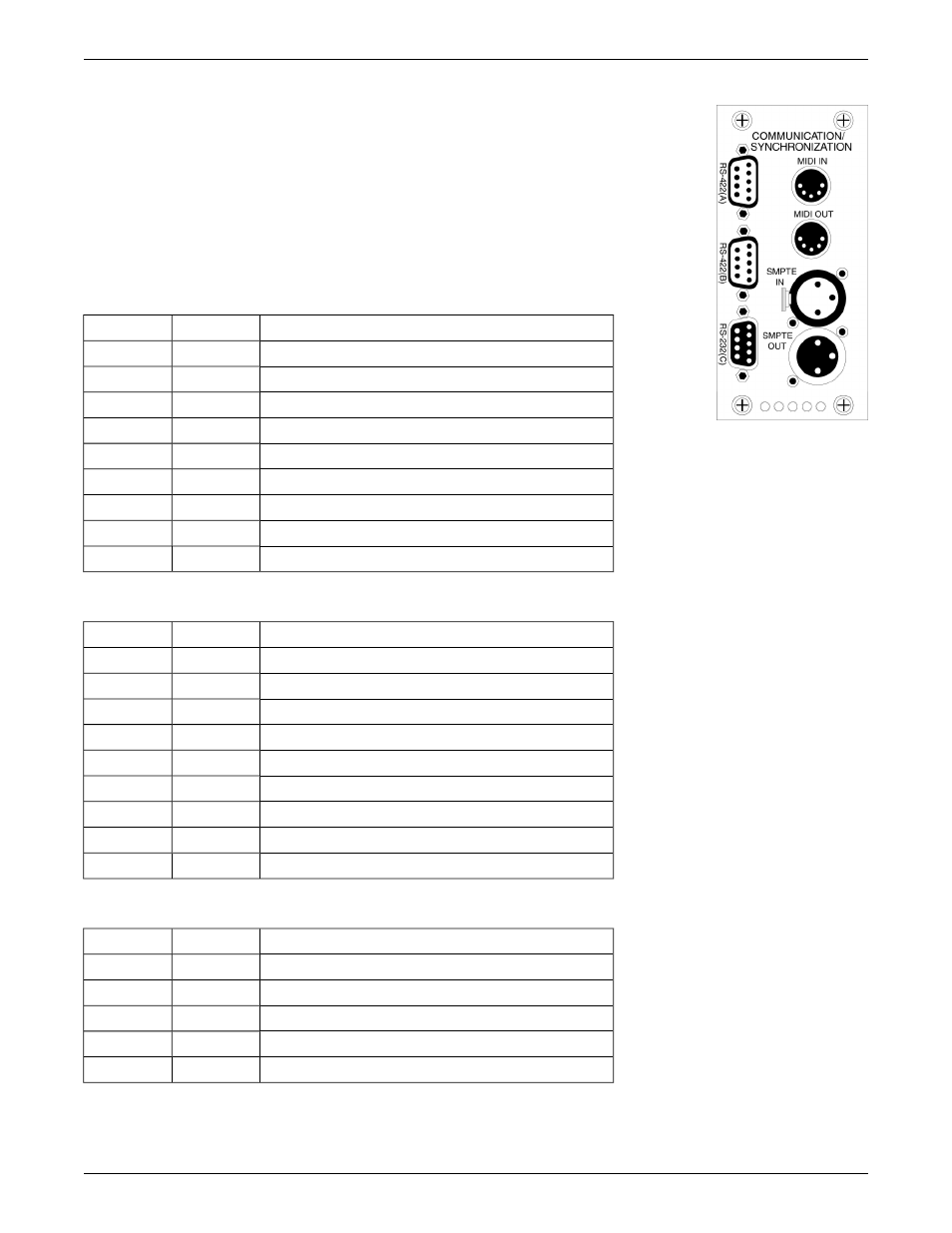

LX-COS Comm/Sync
Provides a communications link to the CueStation host computer system (or the computer
hosting your custom control software), a SMPTE Time Code signal generator and receiver,
and MIDI I/O.
Ports
RS232 serial, RS422 serial, MIDI In/Out, XLR SMPTE In/Out
Pin-outs
Table 4. Nine-pin Male RS232 Serial Port (DTE)
Use
Name
Pin
1
Receive data
RX
2
Transmit data
TX
3
4
Reference ground
GND
5
6
Ready to send (not required)
RTS
7
Clear to send (not required)
CTS
8
9
Table 5. Nine-pin Female RS422 Serial Port (DTE)
Use
Name
Pin
1
Receive data
RX
2
Transmit data
TX
3
4
Reference ground
GND
5
6
Ready to send (not required)
RTS
7
Clear to send (not required)
CTS
8
9
Table 6. Five-pin DIN Female MIDI In
Use
Name
Pin
1
2
3
Receive data
RD+
4
Receive data
RD-
5
40
