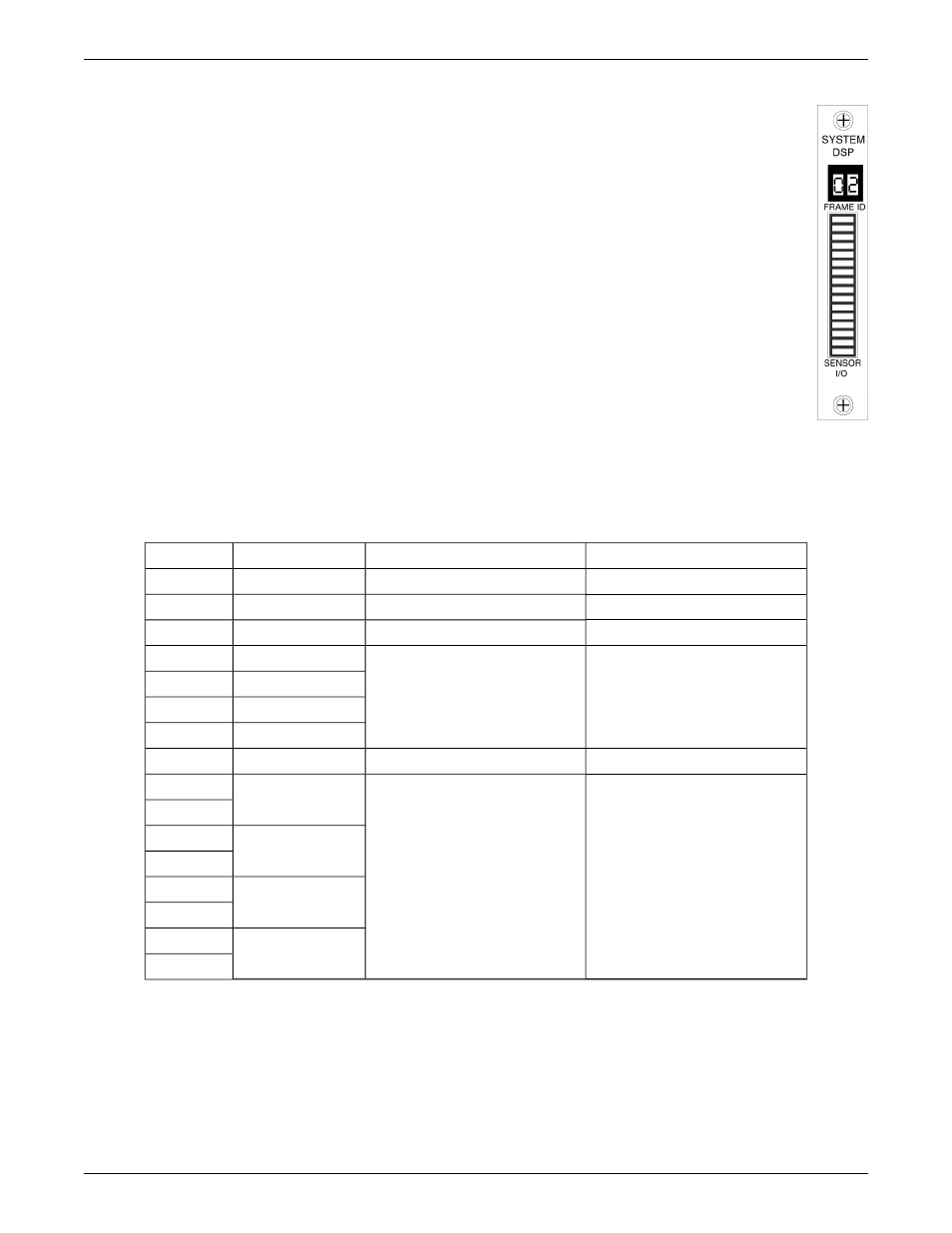

LX-DSP System Processor

Performs matrix mixing automation and control, using the TI-TMS320C6701 Digital Signal Processor.
This DSP card also holds 32MB SDRAM and 8MB Flash memory, allowing stand-alone operation once
programmed with an automation cue list. The DSP is also interfaced to four relay contact outputs, four
digital sensor inputs and two analogue sensor inputs for control and reading of external devices.

Channels

Maximum 160/512 audio I/O channels

Dynamic Range

192dB

Digital Logic Inputs

LX-DSP cards with serial numbers 0000–0688 require an external pull-up resistor to use the Digital Logic
Inputs. Connect a 1/4W 2K2 resistor between the Digital Logic Input terminal and the +5V reference
voltage. One resistor is required for each Digital Logic Input.

Special DSP ID Numbers

The ID switch on an LX-DSP module can be set to force the LX-300 to erase the flash memory. This is not required
in normal operation. See

Special DSP ID Codes

(p. 16) for more information.

LX-DSP Pin-outs: LX-DSP Sensor I/O Terminal Block

Use

Signal

Name

Pin

Reference voltage

+5V

+5V ref

1

Analog sensor input

0-5V

ADC1

2

Analog sensor input

0-5V

ADC2

3

Digital logic input

-TTL (active low with internal
2K2 pull-up resistor)

D1

4

D2

5

D3

6

D4

7

Reference ground

GND

GND ref

8

Relay N/O dry contact

500mA@48V max

R1

9

10

R2

11

12

R3

13

14

R4

15

16
