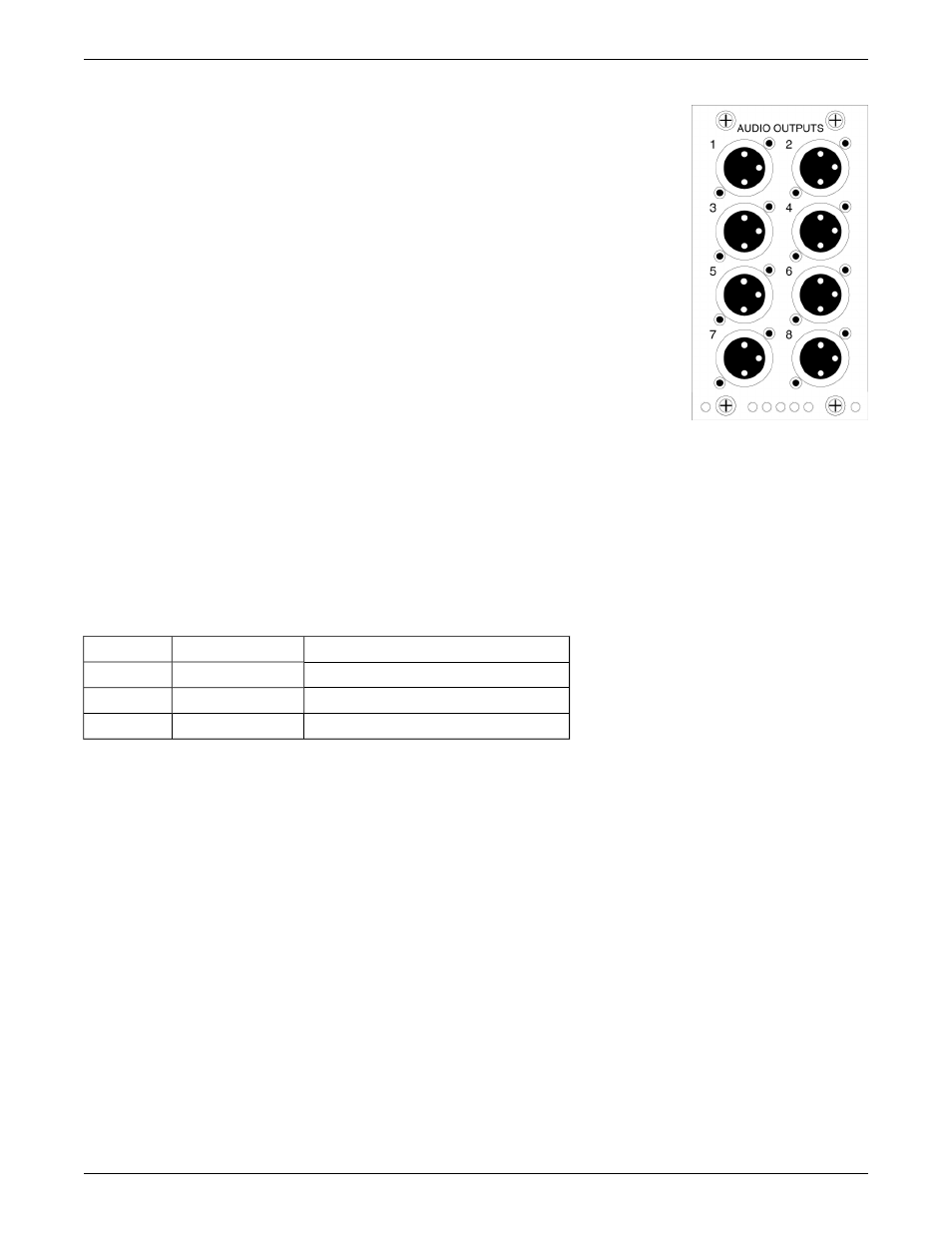

LX-Ao8 Analog Audio Output
Provides eight balanced-XLR analog audio signal outputs. Performs 24bit/48kHz digital
conversion with three conversion scaling settings.
Channels
Eight analog outputs.
Frequency Response
20Hz —20kHz.
Sampling
24bit/48kHz.
Dynamic Range
98dB.
S/N Ratio
-74dB.
THD
<0.005%
Output Load Impedance
600 ohms (balanced line-to-line)
Pin-out: LX-Ao8 balanced male XLR
Use
Name
Pin
Shield
GND
1
+Analog balanced output
Signal+
2
-Analog balanced output
Signal-
3
30
Component Specifications
