ADA Scale: Outputs

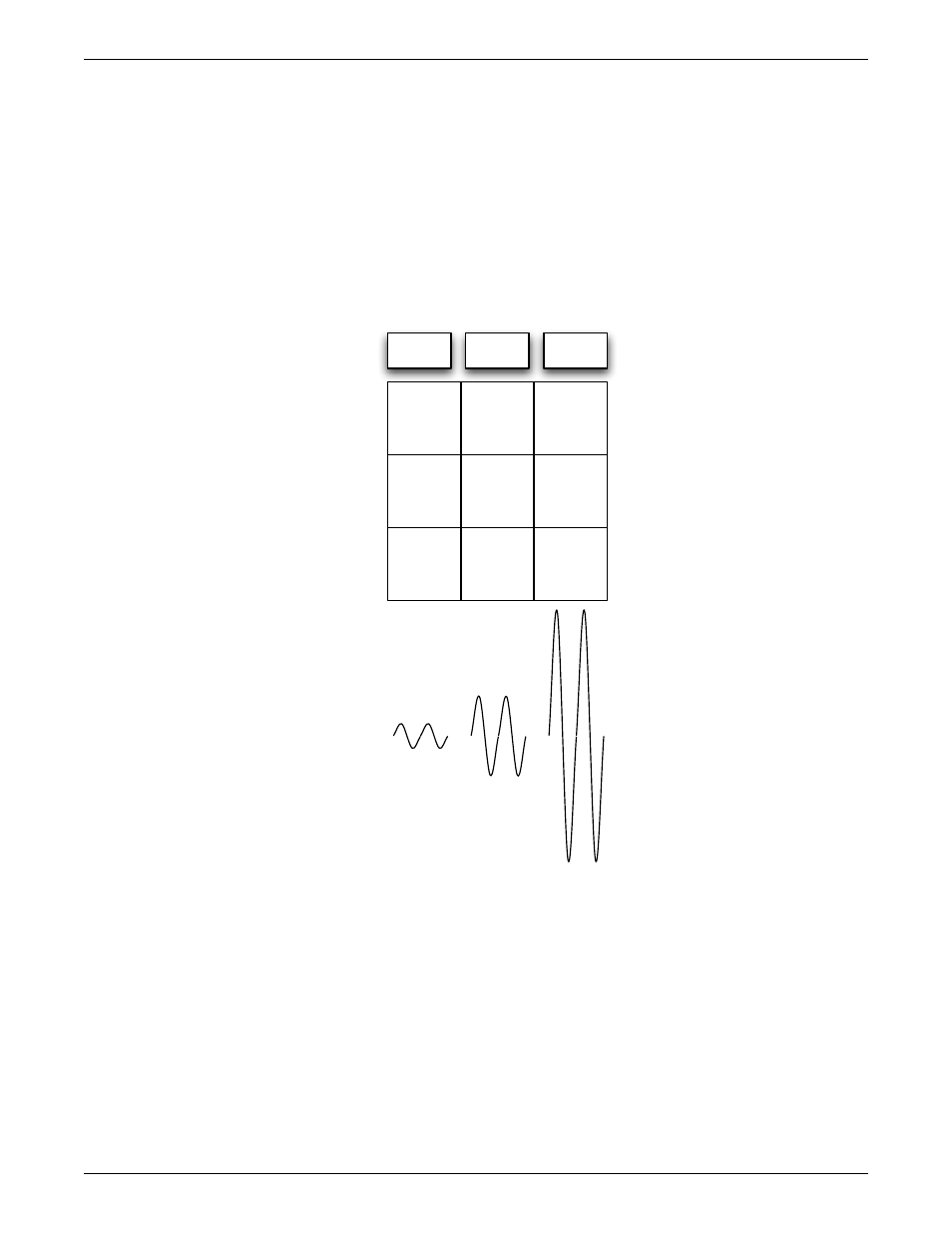

D to A Scale Setting
CueStation OUTPUTS window
+6 dBu
1.55 Vrms
+16 dBu
4.9 Vrms
+26 dBu
15.5 Vrms
Digital Signal Level
Output Scale Setting
Analog Output
Signal Level
- 0 dBu
-10 dBu
+10 dBu
+ 4 dBu
+24 dBu
+14 dBu
+26 dBu
+16 dBu
+ 6 dBu
+ 6
+16
+26
0 dBfs
- 2 dBfs
-16 dBfs
