Hardware Specifications
This chapter presents detailed electrical, mechanical and physical specifications for the Matrix3 and its modules.
LX-300 Specifications

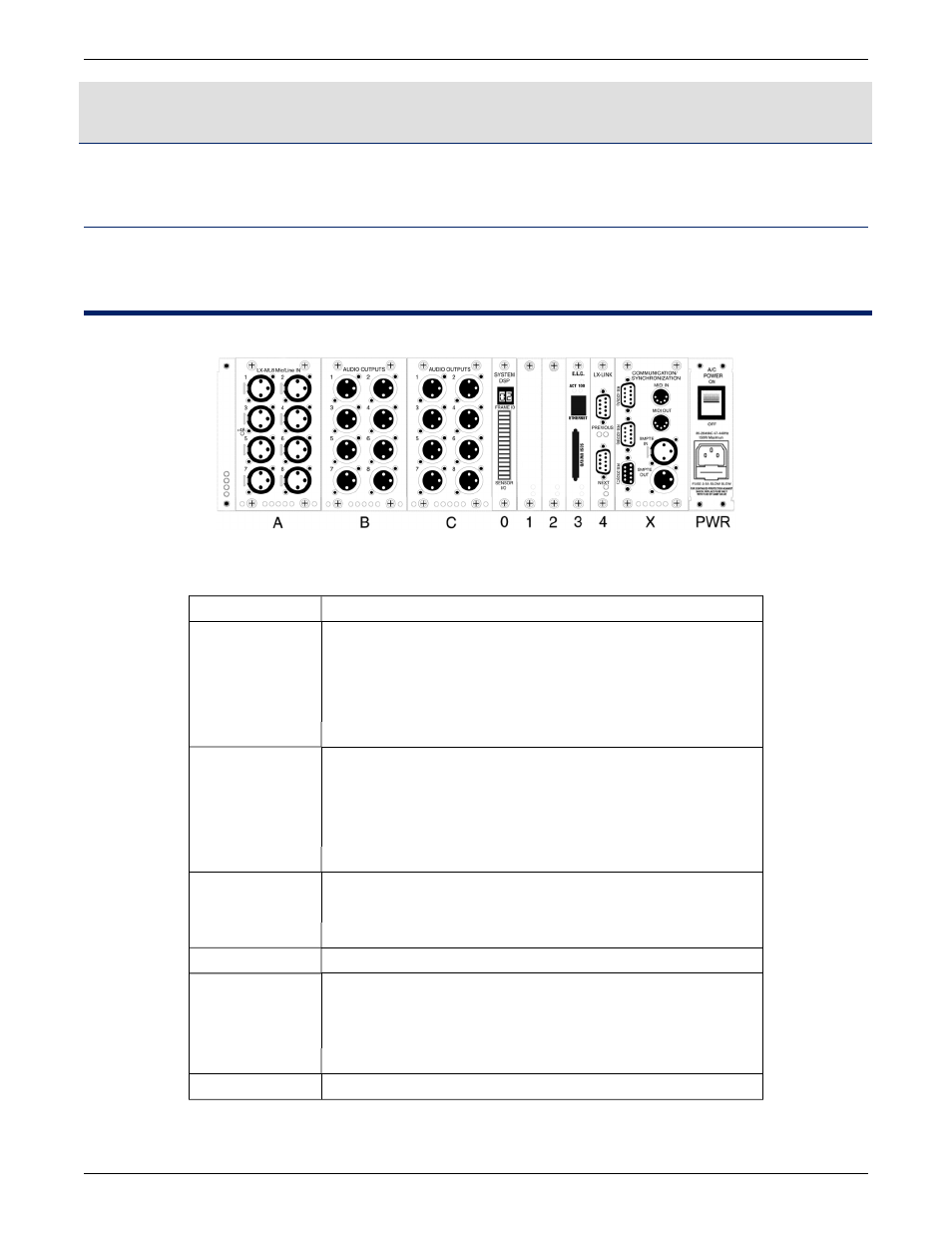

This illustration shows a typical Matrix3 back panel. The valid slot assignments are provided below.
Table 2. LX-300 Chassis Slot Assignments
Cards Allowed in Slot (* exclusively)
Slot
LX-AI8 analog audio input
A
LX-ML8 analog audio input
LX-ADAT digital audio input/output
LX-AO8 analog audio output
LX-AES digital audio input/output
LX-AI8 analog audio input
B
LX-ML8 analog audio input
LX-ADAT digital audio input/output
LX-AO8 analog audio output
LX-AES digital audio input/output
LX-AO8 analog audio output
C
LX-CBR CobraNet audio interface*
LX-AES digital audio input/output
LX-DSP system processor
0
LX-LNK Link interconnect
1, 2, 3, 4
LX-EXP expansion DSP (max. 3)
LX-ELC EtherTracks (Wild Tracks)
LX-VRA VRAS expansion
LX-COS communications/synchronization*
X
